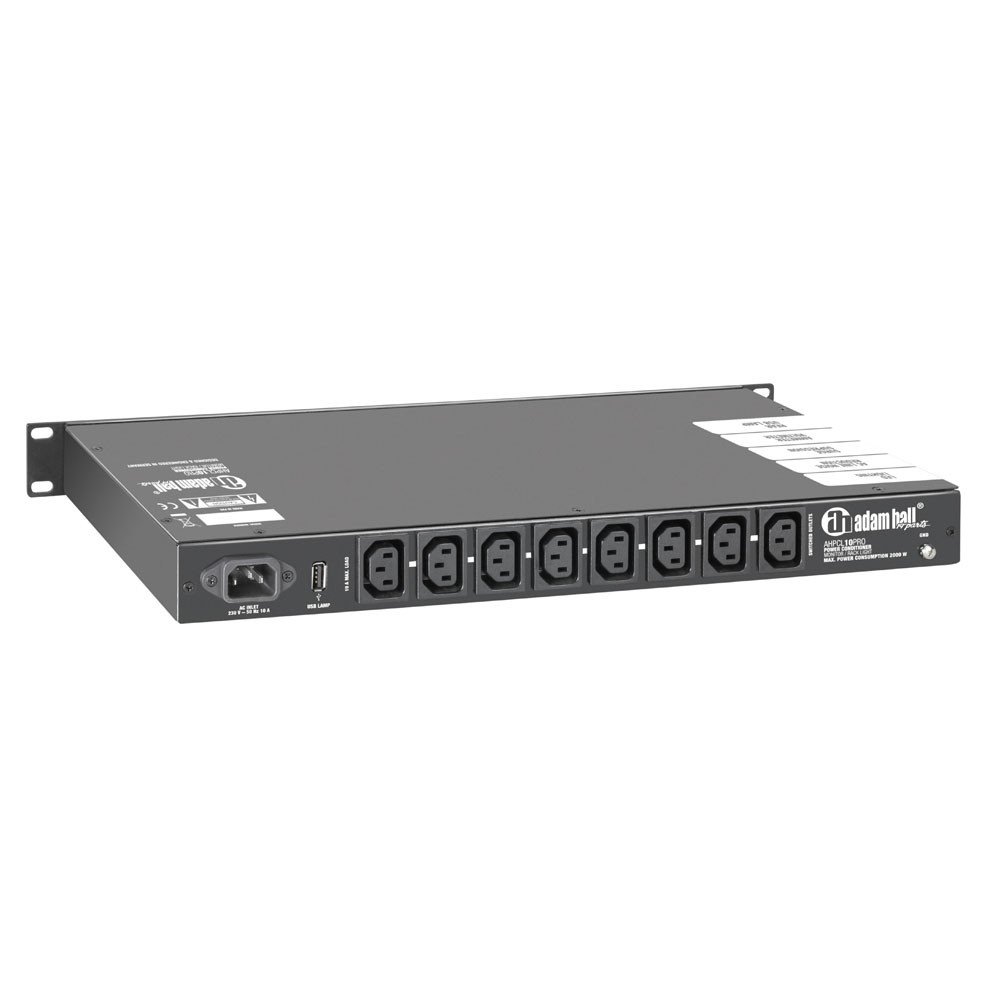

In addition to providing a central power supply to racks and installations, the 19″ AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.
The AH PCL 10 PRO has two rack lights, a gooseneck lamp as well as a voltmeter and ammeter with individual, easy-to-read display for monitoring the voltage values and power consumption.
All AH power conditioners are supplied with four IEC connection cables.
Product type: 19″ rack mains socket strips
Type: 19″ / 1 U
Number of outlets (IEC C14): 9
Input voltage: 230 V
Nominal Impedance: max 10 A
Protection Against Impulse Voltage: neutral conductor to earth, outer conductor to neutral, outer conductors to protection light
Response Time: 1 ns
Max. Surge Current: 6000A (8×20 µs pulse)
Max. Surge Energy: 70 joules per contact
Noise Cancelling: <20 dB, 1.5 MHz-200 MHz
Mains connector: IEC mains cord
Fuse: 10 A
Width: 482 mm
Height: 44.5 mm
Depth: 190 mm
Weight: 3,18 kg
Features: incl. telescopic rack lights and multimeter, including 4 power cords
