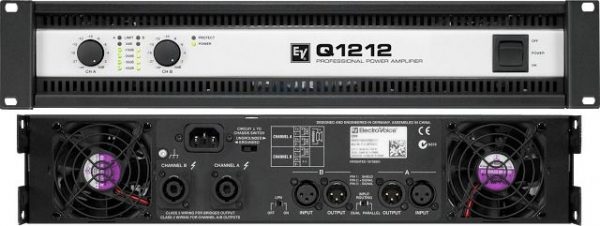

EV Electro-Voice Q1212 1800 W/CH Class‑H power amplifier
€1,030.00
- Super-efficient power with outstanding performance
- Innovative Class-H design
- 1800 W per channel (2 Ω)
- Dynamic headroom for all real-world applications
- XLR pass-though input connections
- Easy connection to bi-amped loudspeakers
- Switchable LPN filter for extra tonal fundamentals and “kick”
- Protective low-cut for systems without subwoofers
- Built-in dynamic limiters
- Complete protection package
- Three-stage front-to-rear fans
Out of stock
| Height |
88.1mm (3.47″) |
| Width |
483mm (19.02″) |
| Depth |
421.5mm (16.59″) |
| Weight Net |
17.1kg (37.7 lbs) |
| Frequency Response (-3 dB) |
10 Hz – 40 kHz (±1 dB) |
| Slew Rate |
30V/µs |
| Intermodulation Distortion (SMPTE) |
0.1% |
| DIM 30 |
0.05% |
| Signal-to-Noise Ratio (A-weighted) |
110dB |
| Input Impedance (Balanced) |
20kΩ |
| Input Sensitivity |
+6.6 dBu |
| Network Control (IRIS-Net) |
No |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω |
1200Watts |
| Amplifier Gain |
32dB |
| Maximum Input Voltage |
+21 dBu (8.69 Vrms) |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω |
1100Watts |
| Mains Voltage |
100 V, 120 V, 230 V or 240 V; 50-60 Hz (factory configured) |
| Electronics Type |
Amplifier |
| Cooling |
Front-to-Rear, 3-stage fans |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω |
1800Watts |
| Topology |
Class-H |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω |
750Watts |
| Impedance |
2/4/8Ω |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω |
550Watts |
| Channels |
2 |
| Maximum Bridged Output 8Ω |
2400Watts |
| Maximum Bridged Output 4Ω |
3600Watts |
| Total Harmonic Distortion |
0.03% |
-
