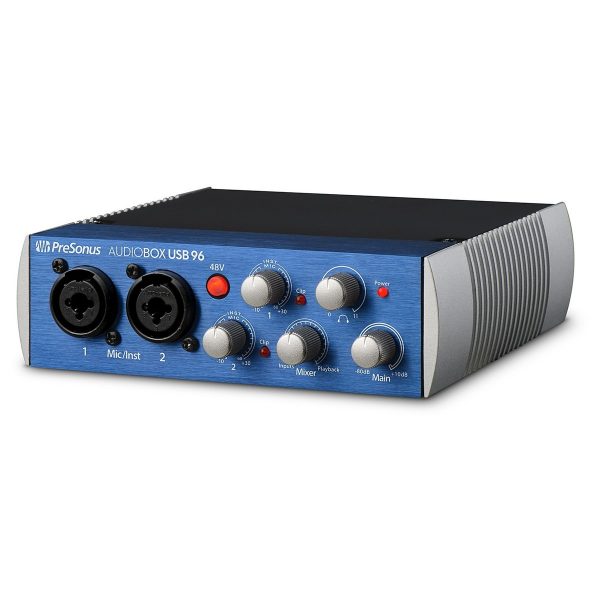

PreSonus Audiobox 96

Exceptional Audio Quality

The PreSonus Audiobox 96 is a professional-grade audio interface boasting a sample rate ranging up to 24-bit/96kHz for exceptional audio quality. The result is a high-quality audio performance, capturing every nuance from your source inputs. The built-in +48V Phantom Power also allows you to use condenser microphones for studio-grade recordings. The two front-panel combination inputs allow you to capture both vocal and instrument recordings with immense detail. It’s highly portable design is bus-powered, eliminating the need for a power supply and is streamlined for simplicity.

High-Quality Microphone Preamps

The Audiobox 96 boasts premium-grade microphone preamps, combined with the built-in Phantom Power for the best possible audio performance. This allows you to capture vocal recordings in exceptional detail, with airy highs and booming lows. The versatile connectivity is ideal for a range of professional audio applications. From in the studio to live mixing, podcasting and more; the PreSonus AudioBox 96’s design is ideal for a range of situations.

Versatile Connectivity

In addition to the front-panel combination inputs, the PreSonus AudioBox 96 includes MIDI connectivity with In and Out connection. The AudioBox also features stereo Main Outs as well as a high-level headphone output for private monitoring.

Design & Included Software

It’s highly portable design makes it ideal for the musician on the move, allowing you to set up and record anywhere within minutes. The roadworthy, heavy-duty steel chassis ensures reliability thanks to its highly durable enclosure. The small size will fit into a laptop bag and takes up minimal space for the space-conscious user. The AudioBox USB 96 also comes complete with world-class recording software. PreSonus’ Studio One Artist DAW is a complete recording and editing solution. The easy-to-learn program features an ergonomic layout, designed to speed up your workflow and make recording easier than ever.

Features

• 2 dual-purpose front-panel input channels, each with high-quality mic preamplifiers
• 2 combo mic/instrument inputs
• Individual channel-trim controls with 0 to +35 dBu mic gain range
• 48V phantom power for condenser microphones
• Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring)
• Headphone jack with level control
• Main-output level control
• LED clip indicator for each channel

Specifications

• Microphone Preamp
  • Type:XLR Female Balanced
  • Frequency Response (±3.0 dB): 20 Hz to 20 kHz
  • Input Impedance (Balanced): 1200 Ohms
  • THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain):
  • S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz): > 95 dB
  • Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 45 dB
  • Gain Control Range (± 1 dB): 0 dB to 35 dB
  • Max Input Level (Unity Gain, 1 kHz @ 0.5 THD+N): -3 dBu
  • Phantom Power (±2 VDC): +48 VDC
• Instrument Input
  • Type: ¼” TS Female Unbalanced
  • Input Impedance: 0.5 M Ohms
• Line Outputs
  • Type: ¼” Balanced
  • Output Impedance: 51 Ohms
• Headphone Output
  • Type: ¼” TRS Active Stereo
  • Maximum Output: 60 mW/Ch @ 60Ω Load
  • Frequency Response (±1.0 dB): 20 Hz – 30 kHz
• MIDI I/O
  • Type: Dual 5-pin Female DIN
• Digital Audio
  • ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
  • DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
  • Bit Depth: 24
  • Reference Level for 0 dBFS: +4 dBu
  • Internal Sample Frequency Selections (kHz): 44.1, 48, 88.2, 96
  • Power: USB 2.0 bus-powered
• Physical
  • Rack Size; 1/3U (steel chassis)
  • Dimensions (HxDxW): 139.7×44.45×139.7mm
  • Weight: 5 lbs (2.27 kg)
