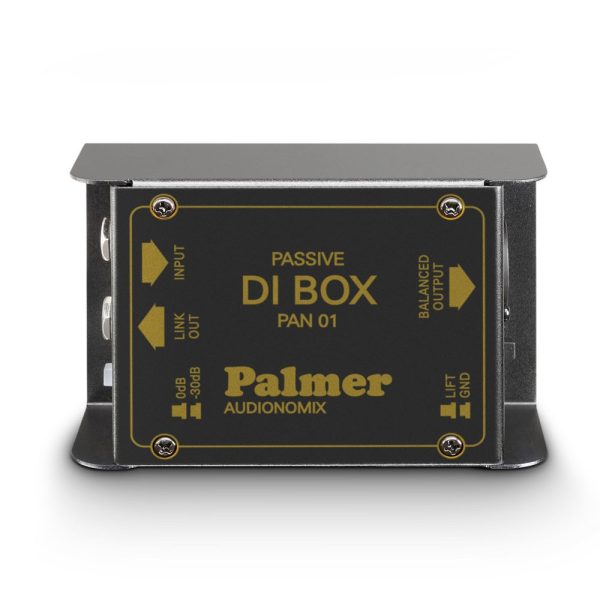

Passive DI box. Jack input with paralell “THRU” output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
SPECIFICATIONS
Product type: DI Boxes
Type: passive
Channels: 1
Inputs: 1
Input connectors: 6.3 mm jack
Max. input level: + 54 dBu
Input impedance: (@ 60 Hz) 60k Ohm(s)
Input pad: 0 / -30 dB
Outputs: 1
THRU outputs/channel: 1
Output connectors: 6.3 mm jack, XLR
Max. output level: + 4 dBu
Output impedance: 600 Ohm(s)
Frequency response: 20 – 20000 Hz
Transformer balanced: Yes
Ratio: 10 : 1
Controls: attenuator, ground lift
Cabinet material: sheet steel
Cabinet surface: Powder coated
Width: 110 mm
Depth: 73 mm
Height: 42 mm
Weight: 0,34 kg
