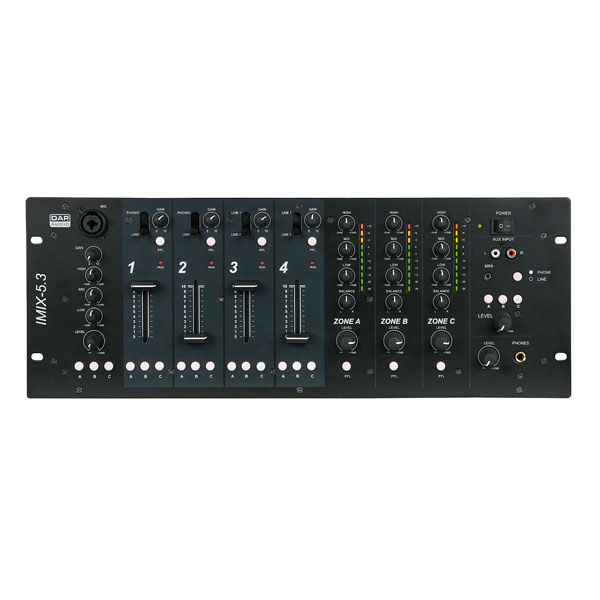

DAP IMIX-5.3 5-Channel 4U Install Mixer, 3 Zones

279.00

  • Master outputs with 3-way tone control
  • Special front input for phone/MP3 devices
  • Zone control for 3 balanced outputs
  • 1 Mic, 7 Line, 2 Phono inputs
The IMIX-5.3 is a basic 3 zone control mixer. It has a logical design and all functions are very clear and easy to control. Each channel has 3 output buttons to route the channel to your desired area/zone. All outputs have their own EQ settings and with the PFL function you can monitor each area/zone with a pair of headphones. At the front it has direct inputs for microphone, line and a phone/mp3 device.

Specifications

Inputs
Mono Inputs:  1
Mono Input Connector:  3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs:  8
Stereo Input Connector:  RCA, TRS balanced 3.5 mm
Phono Audio Inputs:  2
Phono Audio Input Connector:  RCA
Outputs
Main Outputs:  3
Main Output Connector:  3-pin XLR, TRS balanced 6.3 mm
Zone Output:  3
Zone Output Connector:  3-pin XLR, RCA
Headphone Output:  1
Headphone Output Connector:  TRS balanced 6.3 mm
Audio Specifications
THD Level:  < 0.05 %
Signal-to-noise Ratio:  > 100 dB
Frequency Response Minimum:  20 Hz
Frequency Response Maximum:  20.000 Hz
Sound Editing
Microphone Input Equalizer Range:  12 dB
Parametric Microphone Equalizer:  3 Bands
Microphone Input Fixed Frequencies:  100, 1.000, 10.000 Hz
Main Graphic Equalizer:  3 Bands
Main Output Equalizer Range:  12 dB
Main Output Fixed Frequencies:  100, 1.000, 10.000 Hz
Parametric Zone Equalizer:  3 Bands
Zone Output Equalizer Range:  12 dB
Zone Output Fixed Frequencies:  100, 1.000, 10.000 Hz
Product Properties
LED Indicators:  Channel select, Clip, Output level, Signal
Electrical Specifications and Connections
Power Supply:  240 VAC 50-60 Hz
Power Consumption:  15 W
Power Connector in:  Schuko Plug
Mechanical Specifications
Fader Length:  100 mm
Height (mm):  176 mm
Width (mm):  89 mm
Length (mm):  481 mm
Installation Depth (excl. connector):  89 mm
Flightcase Size:  19″
Rack Units:  4 U
Housing:  Metal
Colour:  Black
Weight:  3,4 kg
IP Rating:  IP20(indoor use only)
Certifications/Qualifications
Reference Standard:  CE, FCC, RoHS
Included Items
Included Accessories:  Adapter
