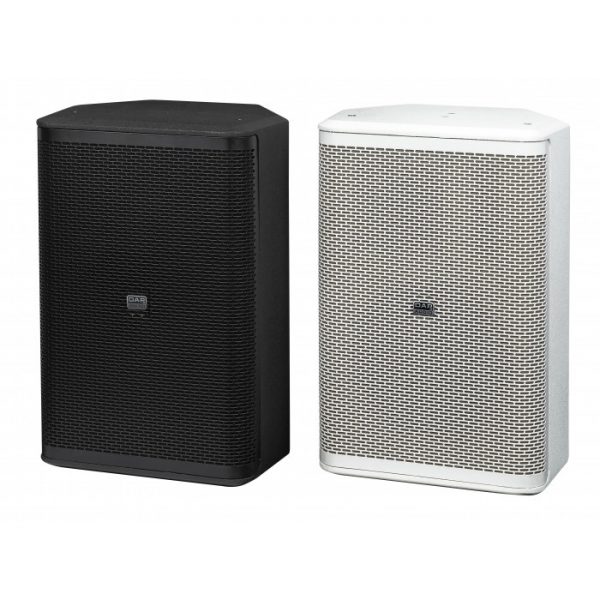

DAP Xi-10 Passive 10″ install speaker – white



  • 300 W RMS
  • Clean full-range Hi-Fi sound (2-way system)
  • Multiple mounting & connectivity options
  • Rotatable horn and logo for vertical mounting
  • Easy detachable magnet mounted grill

Only 1 left in stock (can be backordered)

The DAP Xi-10 is an elegant 10 inch passive installation speaker with a 1.4″ Celestion HF driver for clear Hi-Fi sound. It is particularly suitable for fixed indoor locations. Its ingenious design, with recessed Speaker 4-pin chassis, easily detachable magnet-mount grill and rotatable logo, is perfect for a variety of applications. Also, the speaker can be placed either horizontally or vertically due to its various mounting options. You can even rotate the horn 90 degrees to create the desired sound distribution (60°x90° or 90°x60°).

This full-range 2-way speaker can be mounted directly to any ceiling or wall using the optional U-shaped mounting bracket and compact speaker wall bracket. The Xi-10 is not only versatile, it also fits into any environment since it is available in either black or white and works on any 8 Ω audio infrastructure.

The speakers can be connected though either Speaker 4-pin or green terminal connector for a quick and cost-effective installation.


Mono Input Impedance:  16 Ω
RMS Input Power:  300 W
Peak Input Power:  1200 W
Passive Input Connection:  Speaker Connector 4 pole , Terminal
Audio Specifications
Speaker System:  2-way
Speaker Sensitivity (1 W/1 m):  96 dB
Speaker Impedance:  8 Ω
Maximum SPL at 1 m:  127 dB
Frequency Response Minimum:  45 Hz
Frequency Response Maximum:  20000 Hz
Frequency Response (-10dB) Minimum:  55 Hz
Frequency Response (-10dB) Maximum:  20000 Hz
Woofer Diameter:  10 “
Woofer Voice Coil:  2.5 “
Woofer Magnet Type:  Ferrite
Compression Driver Diameter:  1 “
Compression Driver Voice Coil:  1.4 “
Compression Driver Magnet Type:  Ferrite
Dispersion Angle Horizontal:  90°
Dispersion Angle Vertical:  60°
Mechanical Specifications
Height (mm):  528 mm
Width (mm):  350 mm
Length (mm):  300 mm
Material:  Plywood
Material Thickness:  12 mm
Colour:  White
Finish:  Painted
Weight:  14 kg
IP Rating:  IP20 (indoor use only)
Product Properties
Rotatable Horn:  Yes
Useable as Monitor/Wedge:  No
Speaker Grill Material:  Steel
Rigging Eye Thread:  M8
