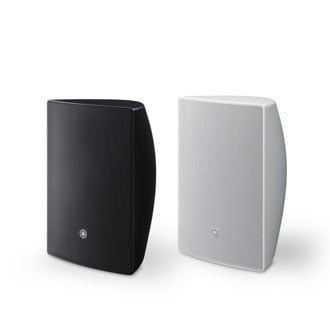

Yamaha VXS8 – PAIR

0.00

A versatile installation speaker for consistent sound

  • 8″ cone woofer with a 1″ soft dome tweeter
  • Operates on LoZ or 100vl impedance taps
  • Includes Bracket & Safety Wire
  • Black or white
  • Packaged and priced as a pair

Available on back-order

The VXS Series lineup features two full-range models and two subwoofers, allowing you to choose the optimal model for a particular application and, if necessary, combine it with a subwoofer for venues that require a stronger bottom end.

Highly adaptable surface mount speakers

The VXS Series lineup features two full-range models and two subwoofers, allowing you to choose the optimal model for a particular application and, if necessary, combine it with a subwoofer for venues that require a stronger bottom end. VXS Series full-range models are equipped with internal transformers that allow them to operate at both high or low impedance simply by changing the tap on the rear of the speaker. Full-range models also offer IP35-rated protection, ensuring worry-free use in outdoor applications.

Flexible mounting for easier configuration

VXS speakers come with a dedicated bracket for safe, troublefree speaker installation. Speakers can be mounted temporarily, freeing your hands to adjust mounting angles, which can now be configured consistently with ease thanks to the gear guides in the bracket connectors. Furthermore, the bracket base allows VXS Series speakers to be mounted on both walls and ceilings without the need to prepare a different set of brackets.

Pursuing the best sound for installation

We developed the VXC and VXS Series speakers to address a demand in the installation market for speakers capable of providing superb music reproduction as well as crystal clear announcements for public address applications. Both series feature newly customized transducers with large, powerful magnetic circuits that increase driving and braking force substantially, as well as dedicated tweeter diaphragms and speaker cone paper made from a carefully-created blend of materials that help optimize sound reproduction. Cabinets are built tough to meet the demands of a wide variety of commercial environments, constructed from a carefully selected plastic with just the right tensile strength, and designed with optimized bass-reflex tuning to offer a firm, tight low-end. From the networking components and the materials used for wiring and soldering, right down to the optimal placement of acoustic absorption material, a great deal of attention has been paid to even the smallest details of the series’ design.

Speaker Design

Several aspects of these speakers’ design reflect a strong emphasis on functionality as well as the aesthetic features of their construction—effectively enhancing sound quality and speaker performance without disturbing the interior décor of the installation. This concept is evident in the hexagonal design featured on the grille of both series’ speakers that actually improves sound clarity by raising the aperture ratio. Similarly, the smooth curves of the surface-mount cabinet’s simple yet sophisticated design allow the speakers to be mounted closely to the wall—while still fully capable of panning and tilting to target service areas. Even the innovative design of the VXC’s tweeter improves sound clarity by providing unrestricted woofer movement.

Speaker type 2-way, Bass-reflex
Frequency range (-10dB) 51Hz – 20kHz
Nominal coverage H 100°
V 100°
Components LF 8″ Cone
HF 1″ Soft dome
Crossover 2.8kHz
Power rating NOISE 90W
PGM 180W
Nominal impedance 8Ω
Transformer taps 100V 60W (170Ω), 30W (330Ω), 15W (670Ω)
70V 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
SPL Sensitivity (1W; 1m on axis) 91dB SPL
Peak (Calculated) 117dB SPL
I/O connectors 1x Euroblock (4P) (Input: / -, Loop Thru: / -)
Shape Rectangular
Cabinet material ABS
Finish VXS8:Black / VXS8W:White
Waterproof IP35

Dimensions
 W 278mm (10.9″)
H 430mm (16.9″)
D 239mm (9.4″)

Net weight
 8.2kg (18.1lbs)

Accessories
 Wall / Ceiling mount bracket, Terminal cover

Packaged in pair
