1U Media Player with DAB+, FM Radio, USB/MP3 player, and Bluetooth

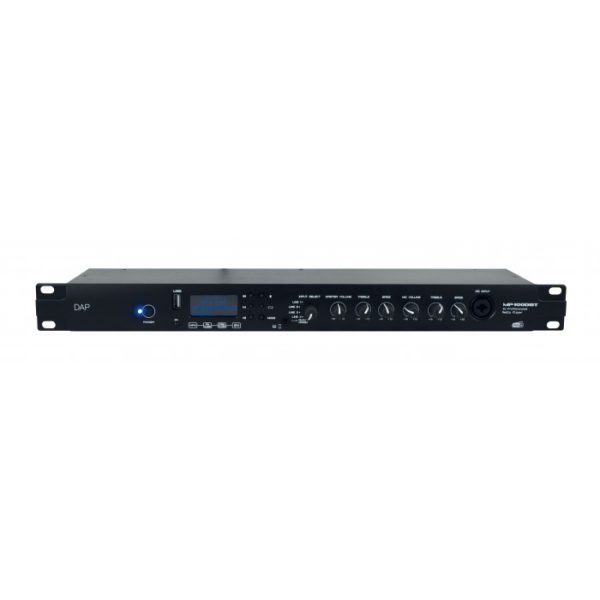

The DAP MP-100DBT is a versatile media player with DAB+ and FM radio, Bluetooth 4.2, and MP3-playing capabilities, intended for stores, cafés, restaurants, and sports canteens. It is equipped with four RCA line inputs on the back, and on the front a USB-A connector for a USB stick or external drive (FAT32/up to 32 GB), a mini-jack line input for phones or laptops, and an XLR/combi microphone input. Line and mic inputs both have independent treble and bass EQ and volume knobs. The DAB+ and FM radio, as well as the MP3 player can be controlled through the display and buttons on the front, or via the included IR remote controller. The MP-100DBT has balanced XLR outputs as well as unbalanced RCA and jack outputs.
Specifications
Inputs
Mono Input Connector: 3-pin XLR
Stereo Input Connector: RCA, TRS balanced 3.5 mm
Auxiliary Input Connector: TRS balanced 3.5 mm
Outputs
Main Output Connector: 3-pin XLR, RCA, TS unbalanced 6.3 mm
Playback
Supported Audio Files: P3
Maximum Storage Size: 32 GB
Media Input/Output: USB-A
Playback Functions: Up (Skip), Down (Skip), Play, Pauze, Stop, Function, Repeat
Audio Specifications
Signal-to-noise Ratio: > 70 dB
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Wireless Specifications
FM Frequency Start: 87 MHz
FM Frequency End: 108 MHz
FM Antenna Impedance: 75 Ω
DAB+ Frequency Start: 174.928 Mhz
DAB+ Frequency End: 239.2 Mhz
Electrical Specifications and Connections
Power Supply: 220V-240 VAC 50 Hz
Mechanical Specifications
Housing: Aluminium, Metal
IP Rating: IP20 (indoor use only)
Thermal Specifications
Maximum Ambient Temperature: 40 °C
Included Items
Included Cables: IEC cable
Included Remotes: IR Remote
