DAP MP-220BT Media Player with Bluetooth

269.00

  • 1U 19” rack dual media player with independent controls
  • Supports FM Radio, USB/SD card, Bluetooth 4.2, and paging mic
  • 3.5-mm jack, paging mic, USB-A, SD card slot, and 2x RCA inputs
  • Suitable for stores, cafés, restaurants, sports canteens, et cetera
  • IR remote and paging mic interface included

Only 2 left in stock (can be backordered)

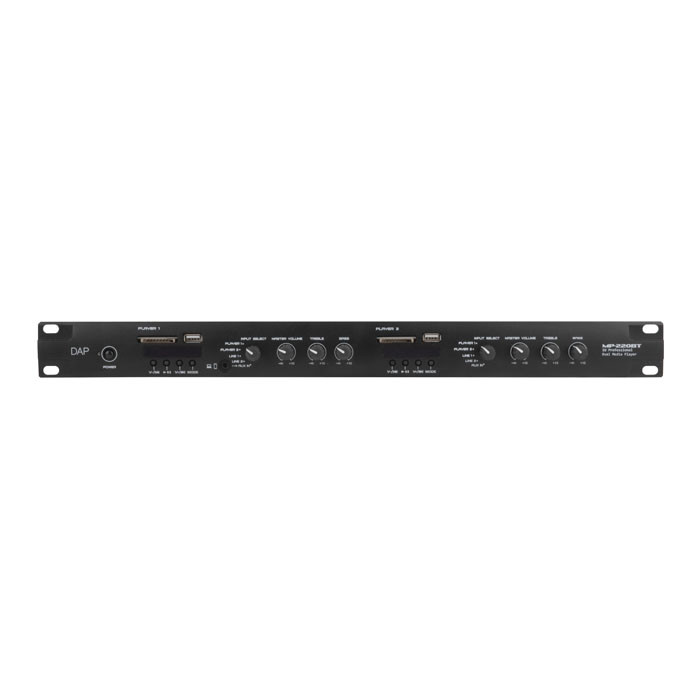

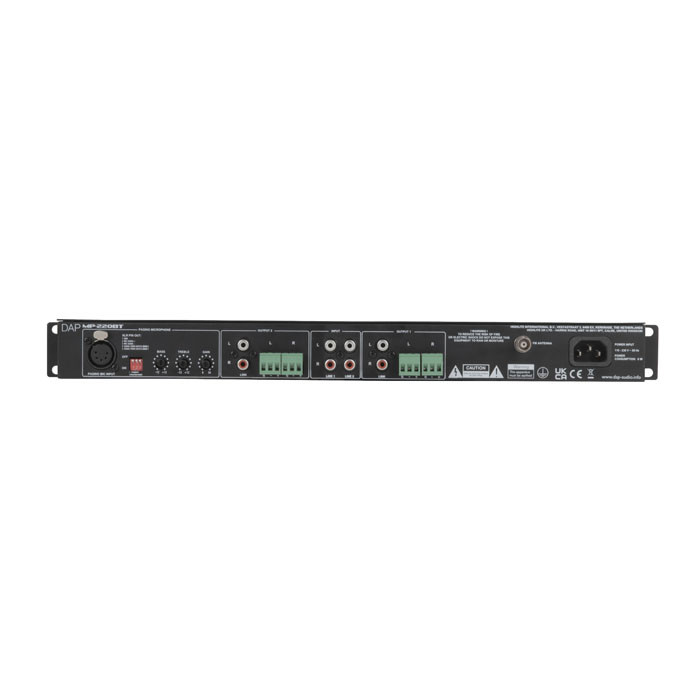

The DAP MP-220BT is a versatile dual media player with FM radio, Bluetooth 4.2, USB/SD card MP3 player, line inputs, and a paging mic input, intended for applications where two different audio feeds are requested, for example larger stores, malls, sports canteens, et cetera. On the back, it has two RCA line inputs and a paging microphone input with bass, treble, and gain settings. The paging mic input has a priority setting, inputs for zone selection, and phantom power. On the front, it has dual USB-A connectors for playing MP3s from a USB stick or external drive, as well as dual SD card slots (FAT32/up to 32 GB). A mini-jack line input can be used for phones and laptops.
The MB-220BT is essentially two media players combined in one housing. Both players have access to all sources, but they have independent input selectors, independent bass, treble, and volume controls, and separate outputs via unbalanced RCA and balanced Phoenix connectors. The FM radio and MP3 player can be controlled through the display and buttons on the front, or via the included IR remote controller.

Specifications

Inputs
Stereo Inputs:  2
Stereo Input Connector:  RCA
Auxiliary Inputs:  1
Auxiliary Input Connector:  TRS balanced 3.5 mm
Outputs
Main Outputs:  2
Main Output Connector:  Phoenix, RCA
Playback
Supported Audio Files:  FLAC, MP3, WAV
Supported Format:  FAT32
Maximum Storage Size:  32 GB
Media Input/Output:  USB-A, SD Card
Playback Functions:  Up (Skip), Down (Skip), Play, Pauze, Stop, Function
Audio Specifications
Frequency Response Minimum:  20 Hz
Frequency Response Maximum:  20000 Hz
Wireless Specifications
Bluetooth Version:  4.2
Bluetooth Range:  20 m
FM Frequency Start:  87.5 MHz
FM Frequency End:  108 MHz
FM Antenna Impedance:  75 Ω
Control and Programming
Display:  LED
Electrical Specifications and Connections
Power Supply:  220V-240 VAC 50 Hz
Power Consumption:  96 W
Power Connector in:  IEC
Mechanical Specifications
Height (mm):  44 mm
Width (mm):  483 mm
Length (mm):  104 mm
Flightcase Size:  19″
Rack Units:  1 U
Housing:  Aluminium, Metal
Colour:  Black
Weight:  1.8 kg
IP Rating:  IP20 (indoor use only)
Certifications/Qualifications
Energy Efficiency Class:  T/B/D
Thermal Specifications
Minimum Ambient Temperature:  40 °C

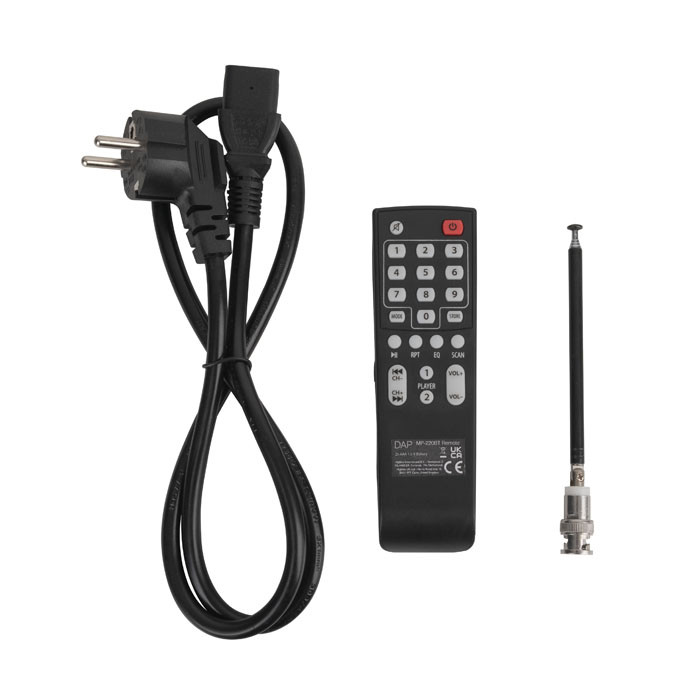

Included Items
Included Cables:  IEC cable
Included Accessories:  FM Antenna
Included Remotes:  IR Remote
