The WX302/O speakers are specifically designed for outdoor use and lend themselves to a variety of applications, ensuring true-to-nature, high-fidelity reproduction of music and speech.
The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX302/O vertically as well as horizontally.
Special treatment with powder coating provides the necessary protection for all weather conditions. Because of the special powder coating, the brackets can pass the 96 hours salt-spray test, which has reached the standard for outdoor applications. A drain hole behind the aluminum grill allows rainwater to flow out. The waterproof AWX-5 connector at the backside makes sure that this speaker meets the IP55 standards.

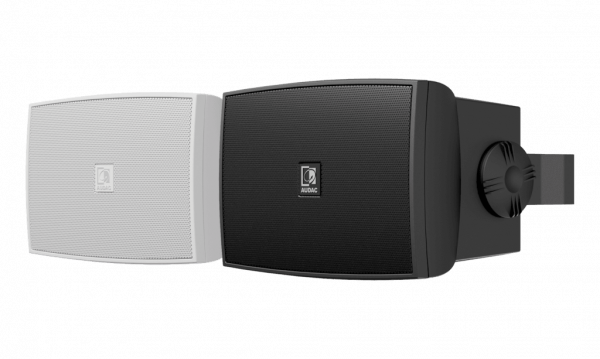

VARIANTS

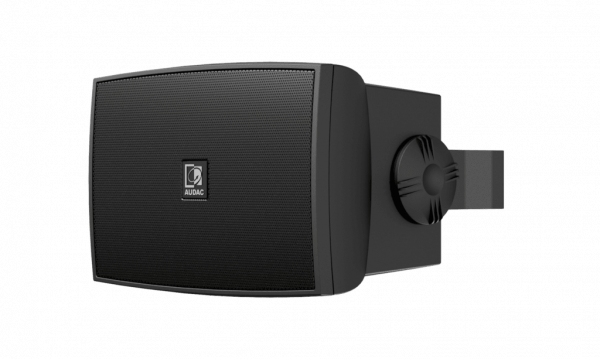

- WX302MK2/OB – Outdoor black version
- WX302MK2/OW – Outdoor white version
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Connectors | Waterproof AWX-5 connector | |||
| Impedance | 8 Ω | |||
| Ingress Protection rating | IP55 | |||
| Max. Power | 60 W | |||
| Sensitivity (1W/1m) | 85 dB | |||
| Speaker type | 2-way | |||
| RMS Power | 30 W | |||
| Crossover | Frequency | 2.5 kHz | ||
| Type | Passive built-in | |||
| Drivers | HF | 1” | ||
| LF | 3” | |||
| Frequency | Range (-10 dB) | 60 Hz – 20 kHz | ||
| Response (± 3 dB) | 90 Hz – 18 kHz | |||
| Line Transformer Tappings | 1 | 20 W / 500 Ω | ||
| 2 | 10 W / 1000 Ω | |||
| 3 | 5 W / 2000 Ω | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 95 dB | ||
| @ 8 Ω | 100 dB | |||
| Dispersion | Horizontal | 100° | ||
| Vertical | 100° | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 199 x 129 x 120 mm (W x H x D) | |||
| Weight | 1.660 kg | |||
| Operating temperature | -25 °C ~ 70 °C | |||
| Construction | ABS | |||
| Mounting & handling | Mounting bracket | |||
| Front finish | Aluminium grill | |||
| Colours | Black (RAL9005) (WX302MK2/OB) | |||
| White (RAL9003) (WX302MK2/OW) | ||||
| Accessories | Included | Mounting bracket | ||
| 5-pin connection cable (70 cm) | ||||
| Optional | AWC07 – AWX5 cable 0.7 m | |||
| AWC25 – AWX25 cable 2.5 m | ||||
| AWC50 – AWX50 cable 5 m | ||||
