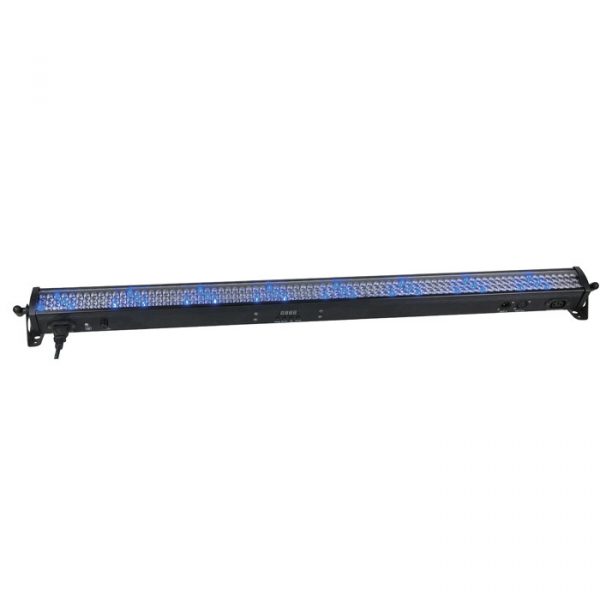

Showtec LED Light Bar 8


• Inexpensive batten effect
• 8 sections
• Power and data in- and output
• Compact size

Available on back-order

The LED Light bar 8 is the another member of the LED Light Bar range. It is equipped with 240 pieces 10 mm LED in Red, Green and Blue color. A great advantage of this bar is that it is divided in 8 sections which allows you to create beautiful flows and great chases. It has multiple DMX modes for optimal control as well a sound to light function for easy applications. The LED Light Bar 8 offers you a true value for money.


Light Source Type:  LED
Light Source Quantity:  240
Light Source Power:  5 W
LED Colour Type:  B, G, R
Refresh Rate:  11600 Hz
Lux @ 2m:  613,3 lx
Lumen Total:  800 lm
Beam Angle Horizontal:  30 °
Beam Angle Vertical:  30 °
Control and Programming
Control Mode:  Auto, Built-in Program, DMX, Master Slave, Sound, Stand Alone
DMX Channels:  2, 3, 4, 14, 24, 26
Protocols:  DMX
Display:  7-segment
Dynamic Effects
Dimmer:  0-100 %
Strobe:  0-15 Hz
Electrical Specifications and Connections
Power Supply:  100-240 VAC 50-60 Hz
Power Consumption:  23 W
Power Connector in:  IEC C13 female
Power Connector out:  IEC C14 male
DMX Connector:  XLR 3P In/Out
DMX Connector in:  XLR 3P
DMX Connector out:  XLR 3P
Mechanical Specifications
Length (mm):  1070 mm
Width (mm):  65 mm
Height (mm):  88 mm
Weight:  1,58 kg
IP Rating:  IP20(indoor use only)
Housing:  Aluminium
Colour:  Black
Product Properties
Cooling:  Convection
Mounting Options:  Bracket, Clamp, Floor, Wall
Safety Attachment:  No
Thermal Specifications
Maximum Ambient Temperature:  40 °C
Minimum Operating Temperature:  0 °C
Reference Standard:  CE
Included Items
Included Cables:  IEC cable
Included Accessories:  User Manual
Included Rigging:  Bracket
