Showtec Phantom 100 Spot

749.00

PRODUCT DETAILS

The Phantom is Back!

Showtec Phantom – the household name in the entertainment lighting industry is back with a new series of extremely reliable and versatile fixtures.
And not just its exterior looks better; technically updated to the latest specifications, without compromising reliability, these fixtures now offer more and better functionalities than ever before.
Razor sharp beams, colorful matrix effects or spectacular gobo imagery, a Showtec Phantom will, just as any true superhero, never disappoint you.

Spot 65 and 130, 3R Beam, 3R Hybrid or Matrix FX:
Showtec Phantom – the choice of heroes!

As addition to the successful Phantom Range, Showtec presents the Phantom 100. A compact, yet powerful moving head with all the features from it’s smaller brother the Phantom 65 and some additional features. For instance, the Showtec Phantom 100 packs a 100W white LED engine, is equipped with a 3-facet circular & 5- facet linear rotating prism and with a manually controllable beam angle of 12°-17° you can create the beam you like.

Output
Lux @ 5m: 5500 (12°)
Beam Angle: 12°-17° (manual)
Light Source: 100W White LED

Electrical
Input voltage: 100~240VAC, 50/60Hz (auto ranging)
Power consumption: 360W max.

Control
On-Board: Full colour display
Control Protocol: DMX512, Auto, Sound, Manual, Master-Slave
Control Personality: Advanced 14ch /Basic 10ch

Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Motorized
Prism: 6-facet circular & 5- facet linear, rotating prism

Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement

Gobos & Colours

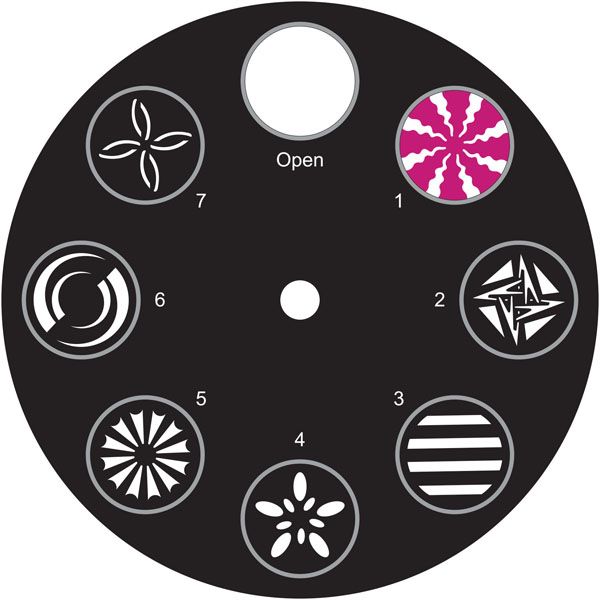

Rotating Gobowheel: 7 gobos
Gobo functions: Gobo-flow effect,Gobo shake
Rotation: Bi-directional
Colourwheel: 8 dichroic-filters + white
Colour functions: Split colours, Rainbow-flow effect

Physical
Colour: Black
Housing: Metal & Flame-retardant plastic
Data Connection: XLR 3p in- & output
Power connection: Pro Power in- & output
Dimensions (WxDxH): 325 x 210 x 420 mm
Weight: 11,3 Kg

Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
