The Phantom is Back!
Showtec Phantom – the household name in the entertainment lighting industry is back with a new series of extremely reliable and versatile fixtures.
And not just its exterior looks better; technically updated to the latest specifications, without compromising reliability, these fixtures now offer more and better functionalities than ever before.
Razor sharp beams, colorful matrix effects or spectacular gobo imagery, a Showtec Phantom will, just as any true superhero, never disappoint you.
Spot 65 and 130, 3R Beam, 3R Hybrid or Matrix FX:
Showtec Phantom – the choice of heroes!
The Showtec Phantom 130 LED Spot is a medium sized, but very powerful moving head, suitable for a variety of venues and applications.
This stylishly designed fixture contains a 130 watt white LED light-source, providing an extremely high light output. Fixed and rotating gobo wheels (7 gobos each), seven dichroic-filters + white, the colour wheel and circular and rotating prisms, are all on board. Together with the motorized focus and mechanical zoom, this makes a highly versatile moving head.
Like all Phantom fixtures, this spot can be controlled by DMX512 but is also capable of operating in stand-alone mode (Auto, Sound and Manual).
Compact, lightweight and versatile; the Phantom 130 LED Spot definitely is a sensible choice for your entertainment lighting needs.
The Showtec Phantom series, a household name in the entertainment lighting industry, are a range of very reliable fixtures with low power consumption and high performance. Taking into account today’s lighting demands, this series offers a range of modern fixtures such as Spot, Wash, Beam, Matrix FX, and Hybrid.
Razor sharp beams, colourful matrix effects or spectacular gobo imagery, a Showtec Phantom will, just as any true superhero, never disappoints you.
Lux @ 5m: 5200 (12°)
Beam Angle: 12° – 21°
Light Source: 130W White LED
Input voltage: 100~240VAC, 50/60Hz (auto ranging)
Power consumption: 300W max.
On-Board: Full colour display
Control Protocol: DMX512, Auto, Sound, Manual, Master-Slave
Control Personality: Advanced 16ch /Basic 12ch
Prism: 6-facet circular & 5- facet linear prism rotating prism
Pan/Tilt resolution: 16 bit
Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement
Gobos & Colours
Fixed Gobowheel: 7 gobos
Rotating Gobowheel: 7 gobos
Gobo functions: Gobo-flow effect,Gobo shake

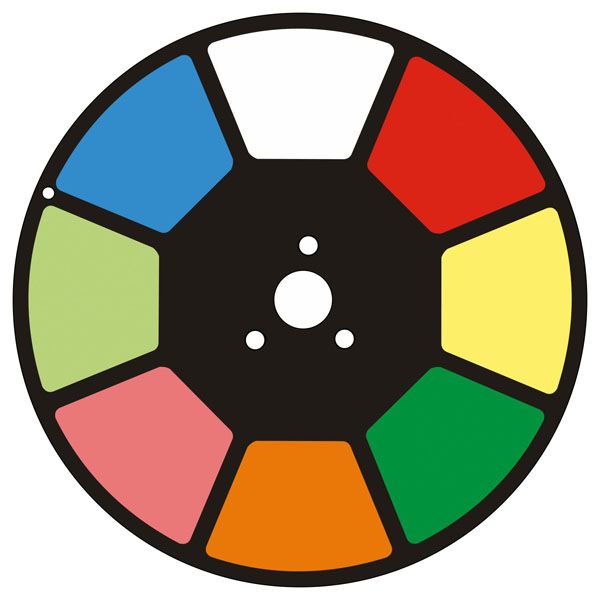

Colourwheel: 7 dichroic-filters + white
Colour functions: Split colours, Rainbow-flow effect
Housing: Metal & Flame-retardant plastic

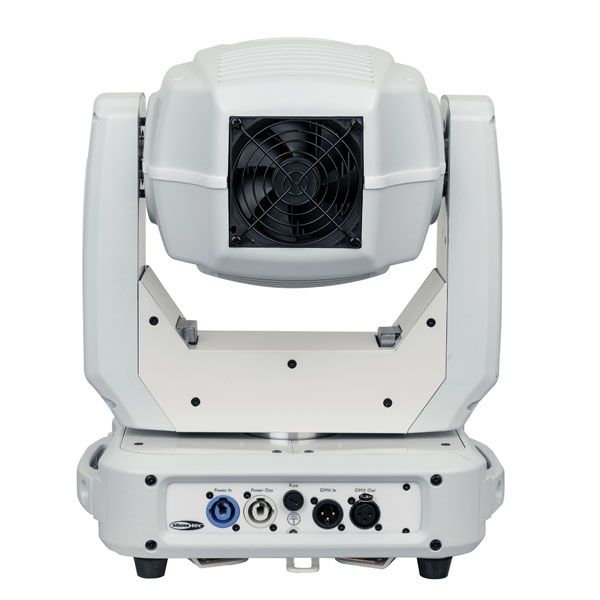

Data Connection: XLR 3p in- & output
Power connection: Pro Power in- & output
Dimensions (WxDxH): 321 x 211 x 462 mm
Certification and Safety
Max. ambient Temp.: 40°C
