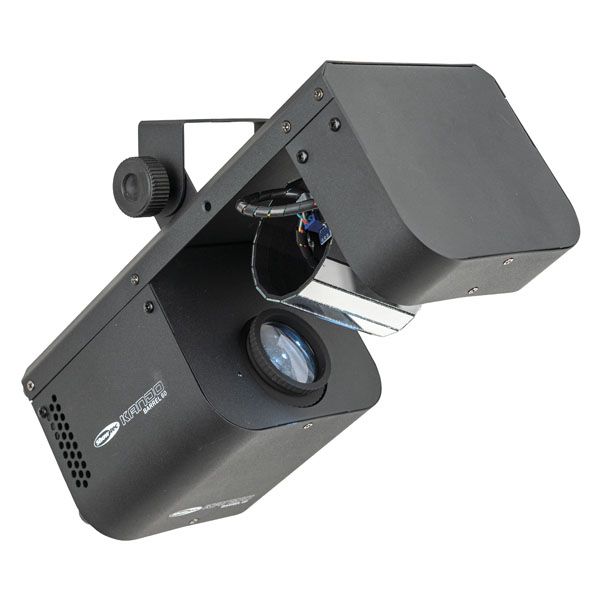

The Kanjo Barrel 60 is an ultra-compact and impressive barrel effect. It is equipped with a bright 60W LED source with a cool white colour (7500k). The barrel has 7 dynamic gobos and 7 vivid colours. The lightweight mirror drum with special coating allows ultra-fast movements and excellent projections.
Due to the compact size the Kanjo Barrel is the ideal solution for applications where a low headroom is available. Furthermore the compact size makes it the ideal fixture for mobile applications.
Due to the compact size the Kanjo Barrel is the ideal solution for applications where a low headroom is available. Furthermore the compact size makes it the ideal fixture for mobile applications.
- Compact Size
- Gobo and colourwheel
- Sound Control
- Master/Slave function
SPECIFICATIONS
| Gobo Wheel 1 | 7 + open fixed gobos |
|---|---|
| Colour Wheel 1 | 7 dichroic-filters + white |
| Focus | Manual |
| Beam Angle | 18 ° |
| On Board | LED Display |
| Dimmer | 0-100 % |
| Strobe | 0 – 15 Hz |
| Pan | 120 ° |
| Tilt | 85 ° |
| Pan/Tilt Resolution | 16 bit |
| Ambient Temp. | 0 ~ +40 °C |
| Light Source | 60W LED, 7500K |
| Power Supply | 100 – 240 VAC |
| Power Consumption | 85 W |
| Control Protocol | DMX512 |
| DMX channels | 8, 10 |
| Housing | Metal |
| Connection Power | IEC in- & output |
| Connection Data | 3 Pole XLR in- & out |
| Dimensions LxWxH | 335 x 204 x 165 mm |
| Weight | 4 kg |
