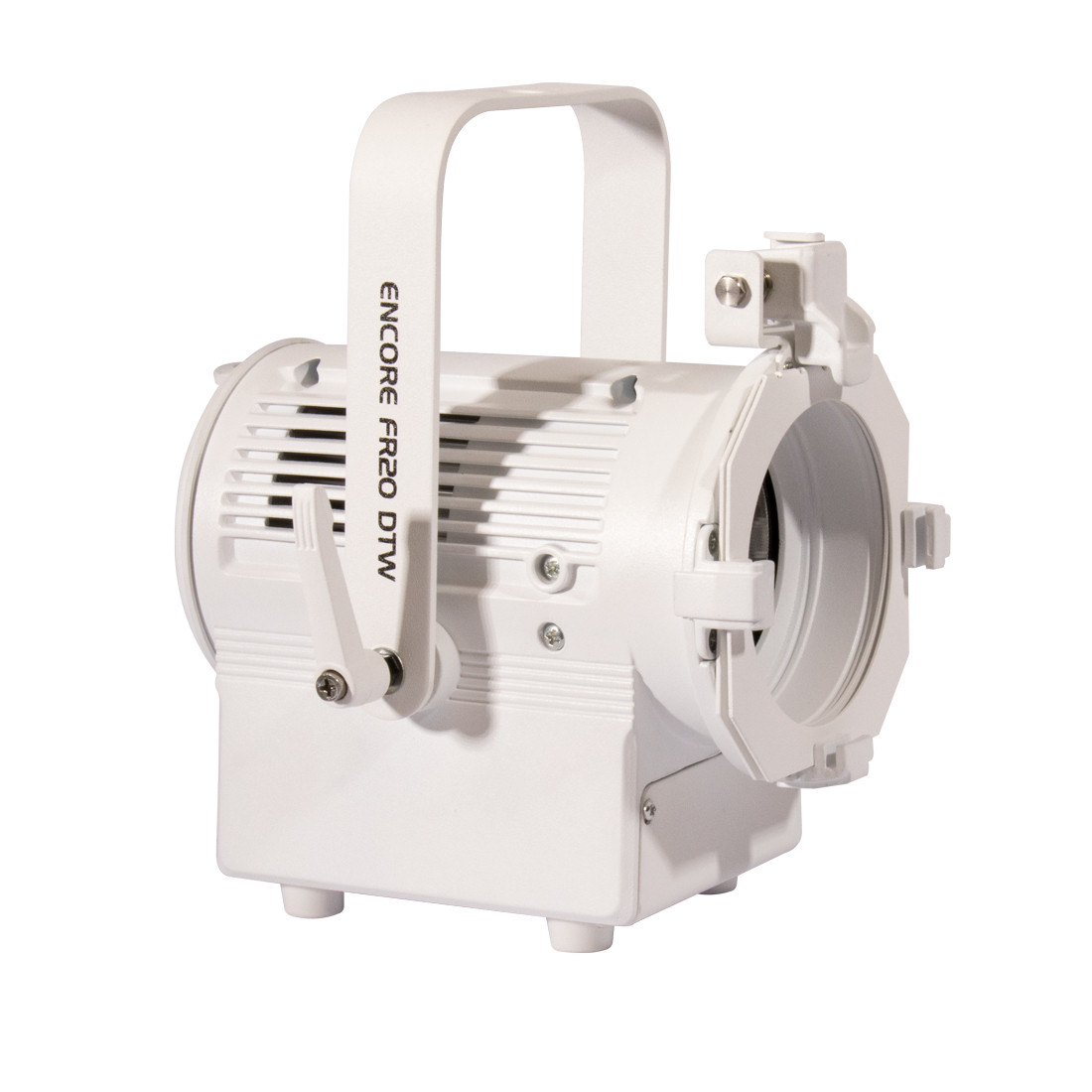

Part of the Encore stage lighting series, the Encore FR20 DTW lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine. It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable – compatible with ADJ dimmer packs or standard wall dimmers.
The Encore FR20 DTW comes equipped with a hanging bracket, barn doors to manually shape the beam of light and a additional lens filter to change the beam angle from 19-degrees to 45-degrees.
• Light Source: 1 WW COB-LED
• Individual LED wattage : 17W
• Average LED lifetime : approximately 50,000 hrs.
• Color TemperatAure: 3000K
• CRI: 92
• Beam Angle: 19 degrees
• Additional 45-degrees Lens-Kit included
• 2 operational Modes : Manual Dimming Potentiometer or DMX Control via external TRIAC Dimmer
• Electronic Dimming: 0 – 100% via potentiometer
• Warm White 3000K
• Robust extruded aluminium housing

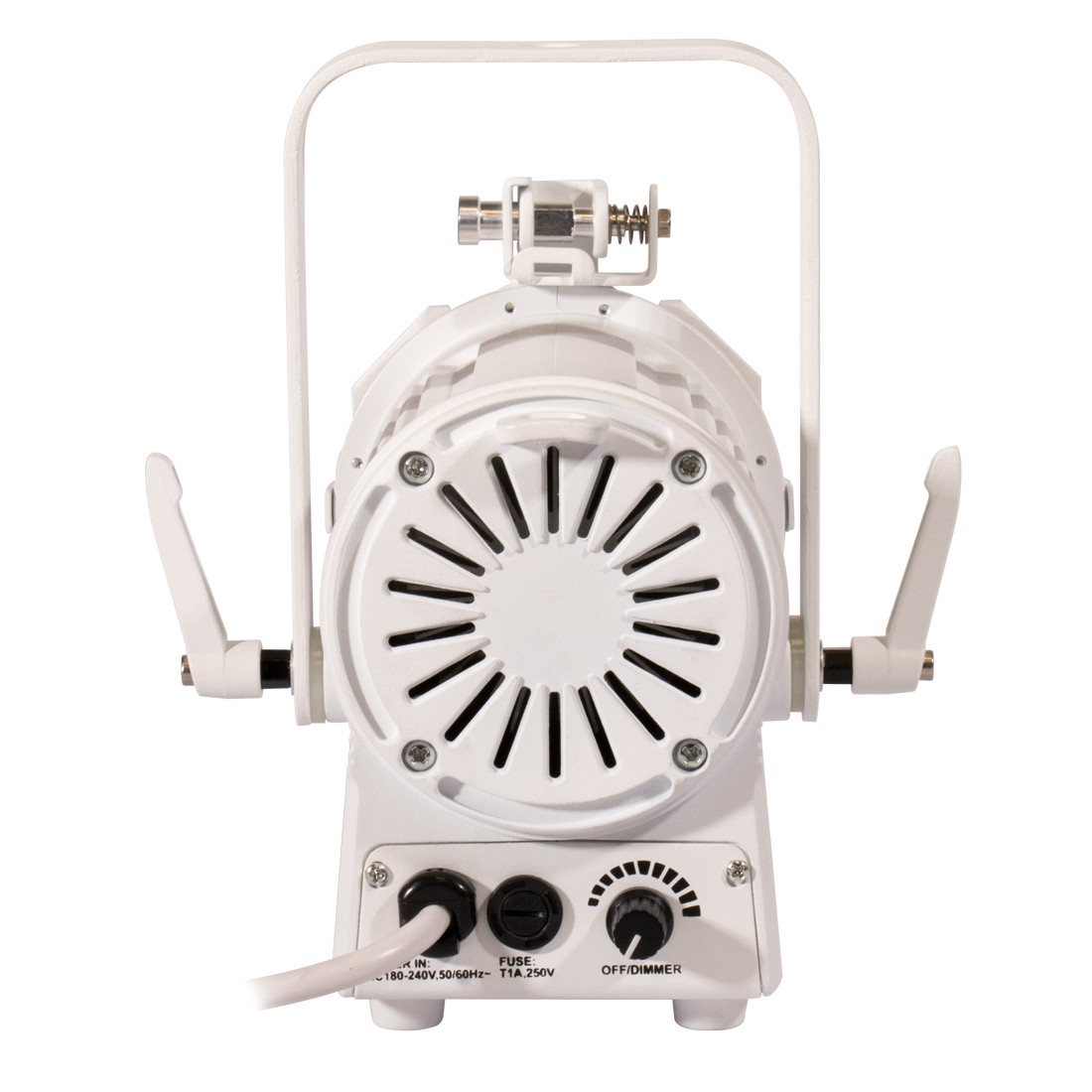

• Manual Dimming knob on rear
• Barndoors & Gel Filter Frame included
• Multivoltage 100-240V 50/60Hz
• Power Consumption: 17W
• Fixed Power Cable
Dimensions & Weight
• Dimensions (LxWxH):
Without Barndoors: 185 x 160.89 x 209.85mm
With Barndoors: 269.21 x 160.89 x 209.85mm
Without Barndoors: 1,95 kg.
With Barndoors: 2,25 kg
