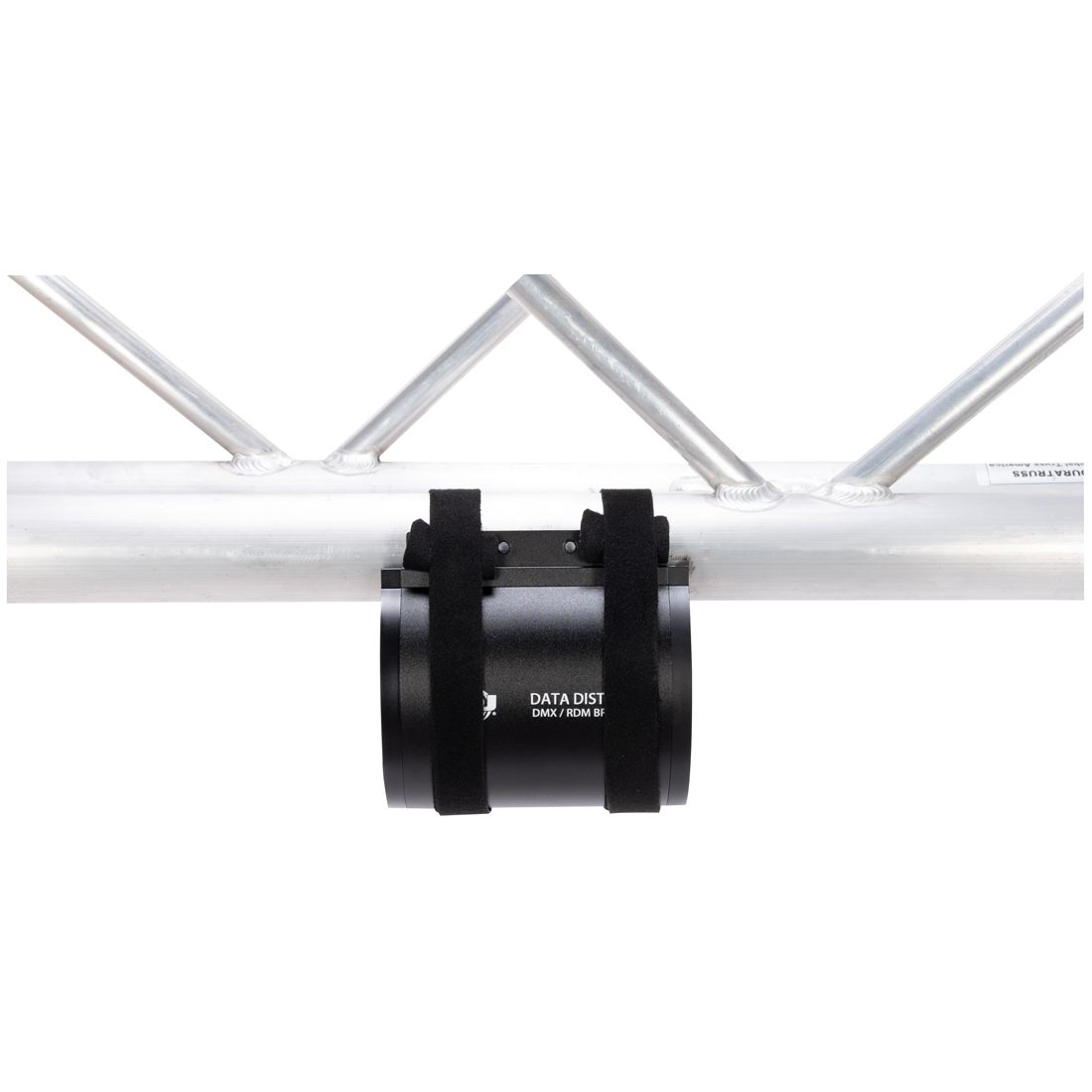

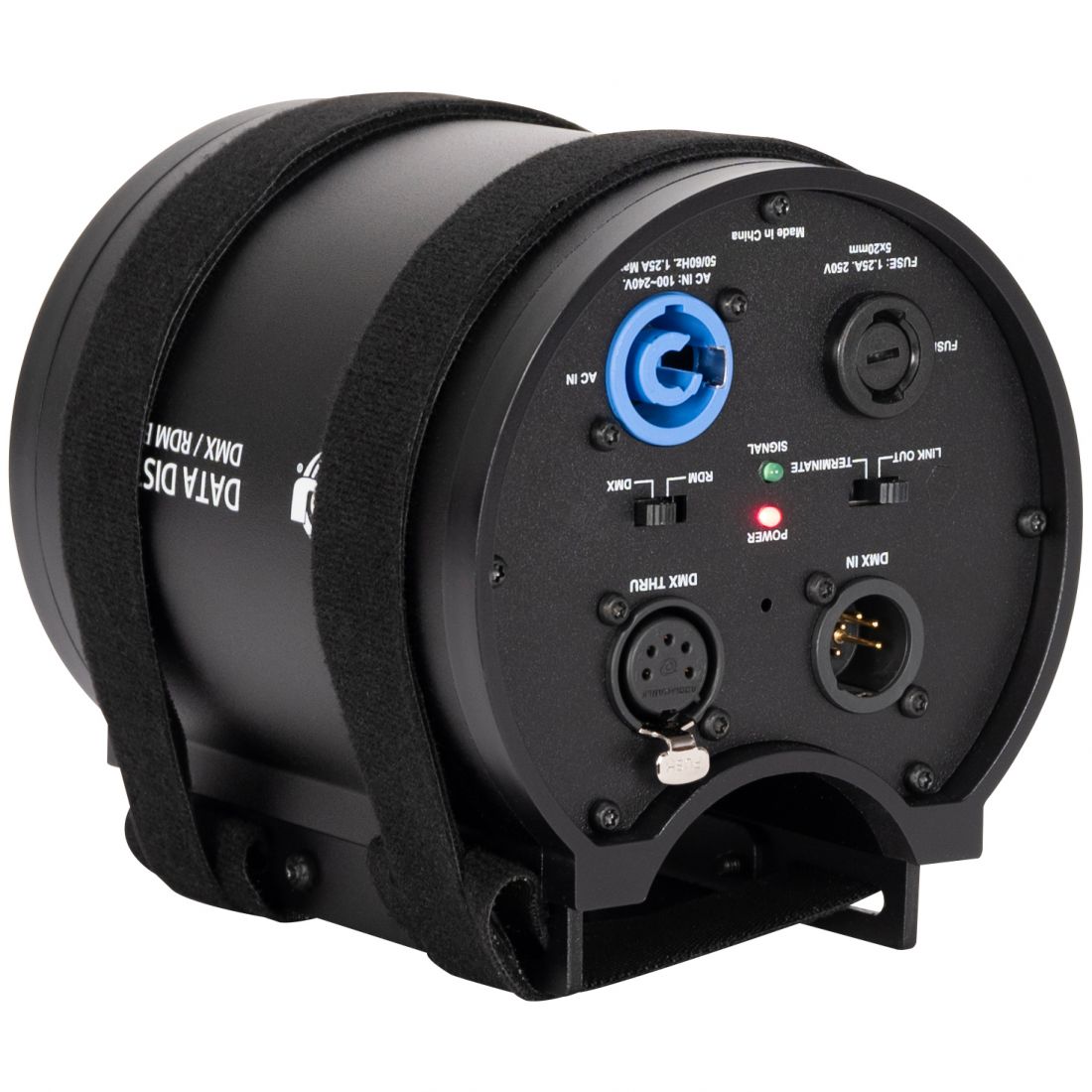

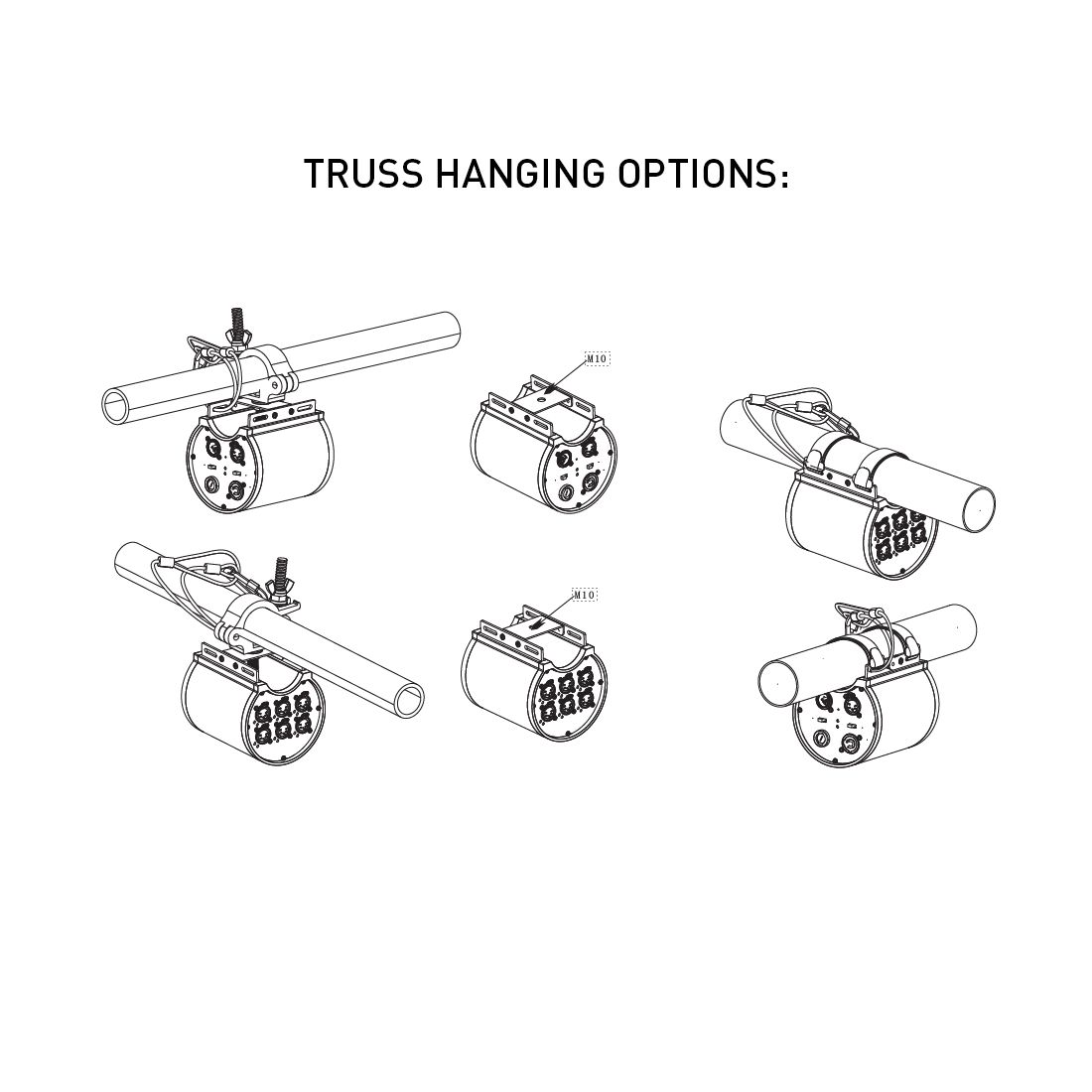

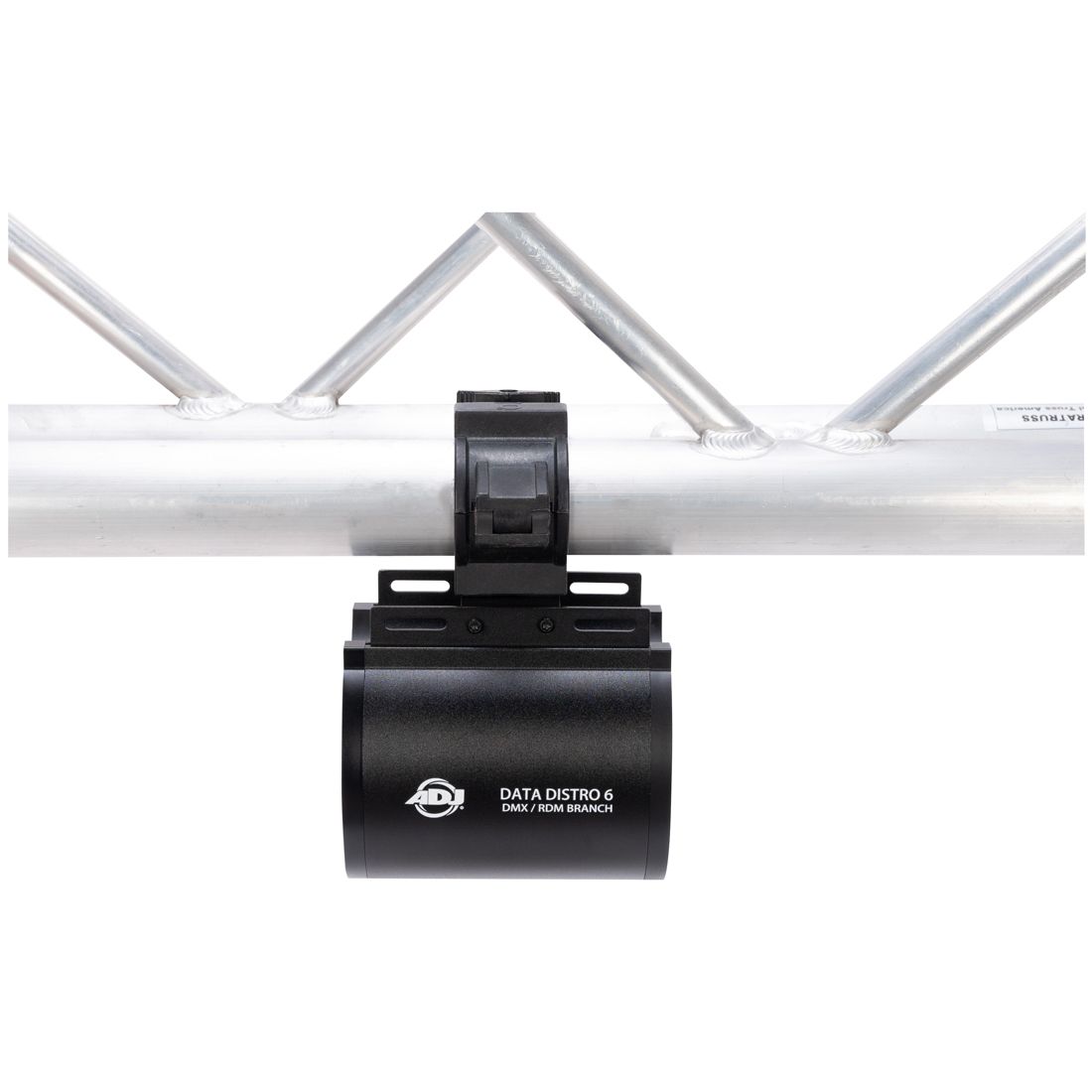

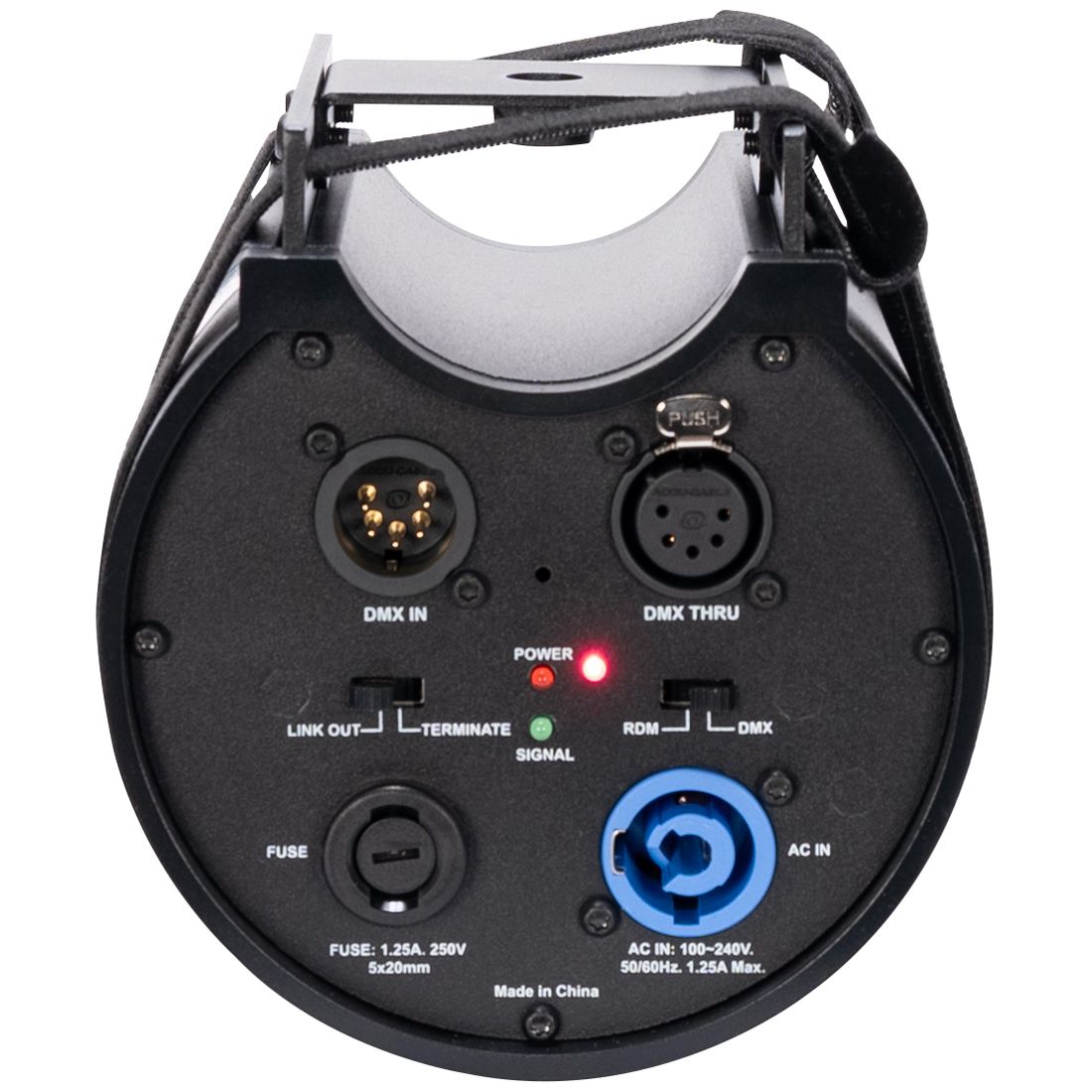

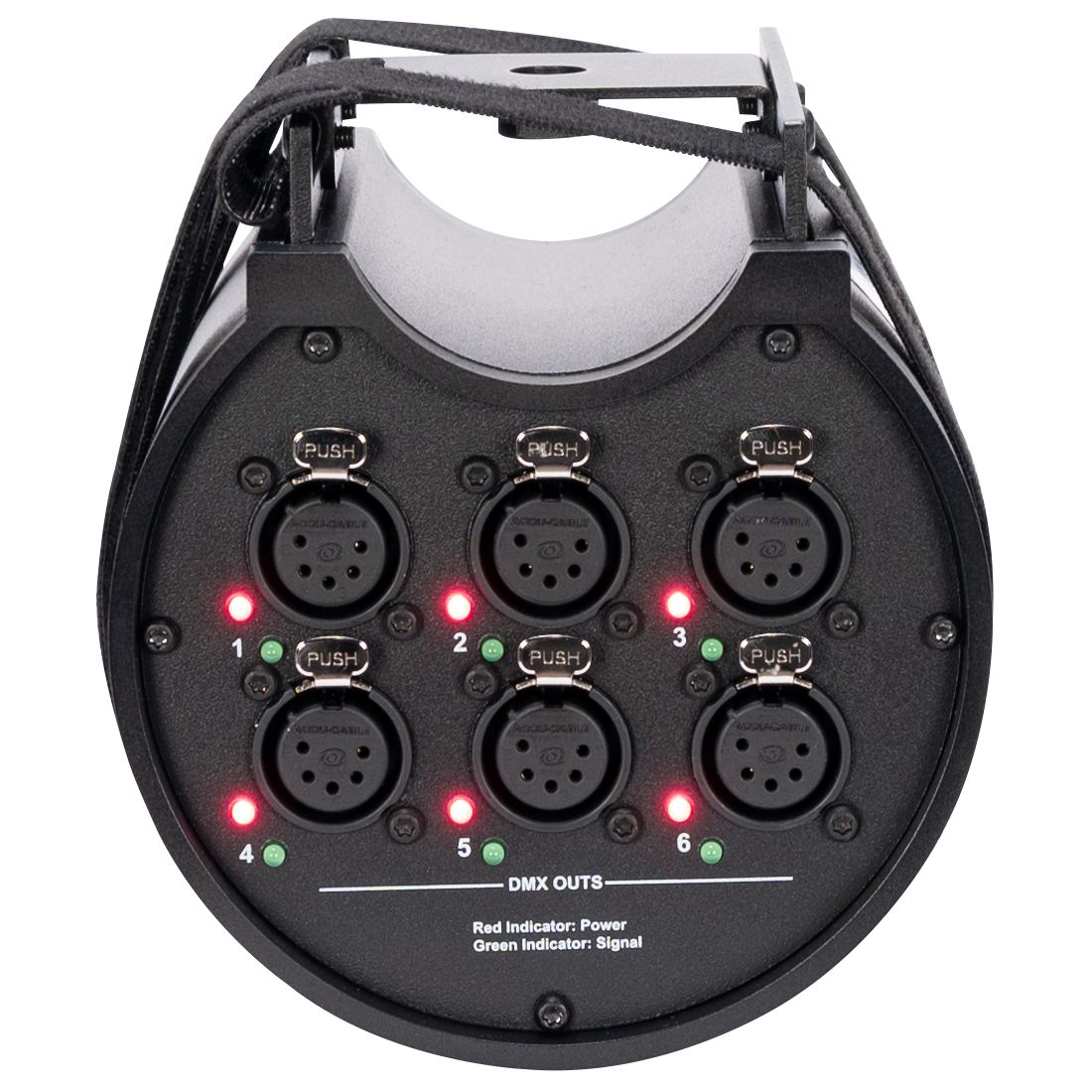

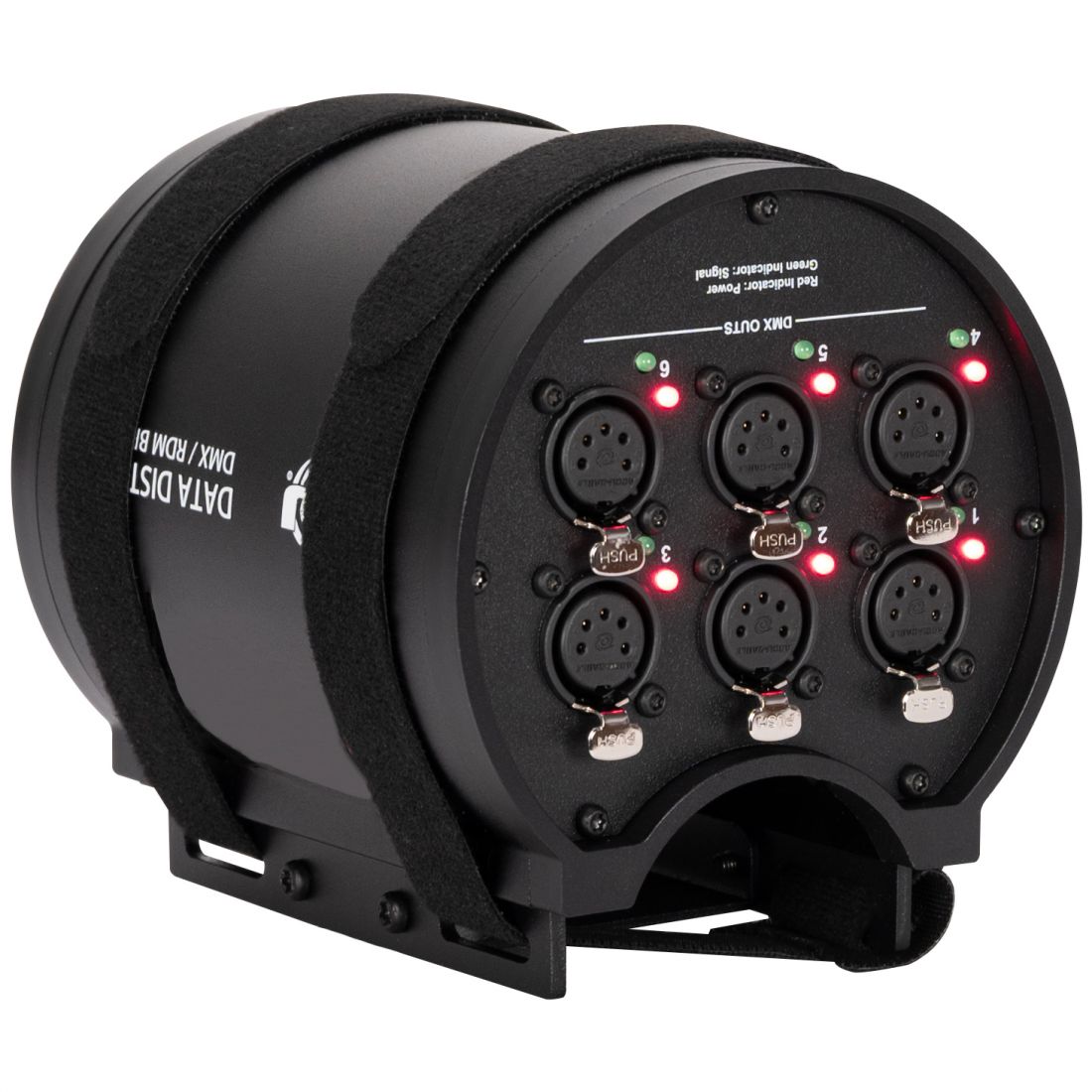

ADJ Lighting Data Distro 6 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient hanging with 1 Truss Mount featuring two Velcro Straps or M10 Screw Clamp (clamp not included). Its robust physical configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, and 6x indoor 5-pin XLR outputs. Equipped with a Link Out Termination Switch and a DMX/RDM Protocol Switch, it also features an indoor locking power socket for added security.
- • DMX512
- • RDM
- • 180 degree mounting bracket system
- • Length: 120mm
- • Width: 137.75mm
- • Height: 129.55mm
- • Weight: 0.83kg
- • AC Input: 100-230V 50/60Hz
- • Power Consumption: 2.9W @ 230V
- • Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
- • Ambient Operational Temperature: -20°C to 45°C
- • Humidity: <75%
- • Storage Temperature: 25°C
- • 2x Straps (used to attach unit to truss)
- • 1x Clamp Mounting Bracket
- • 1x Power Cord
- • IP20
