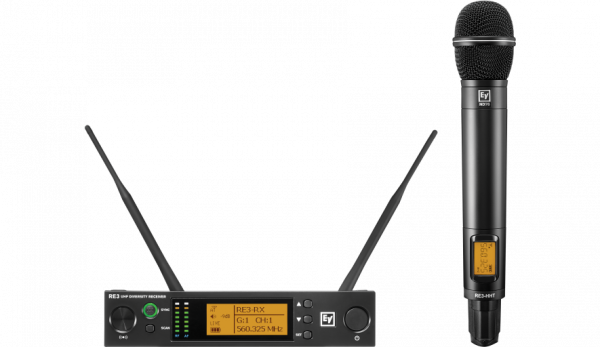

Choose clarity. Get crisp sound no matter what your environment. With the Electro-Voice RE3-ND76 Single Handheld Wireless Mic Set, you can get reliable wireless audio and be free from restrictive wires, and murky audio.Superb speech intelligibility is achieved by the ND76 capsule. Whether you’re speaking or singing your heart out, capture every detail, every time, with outstanding clarity.Handling noise is reduced by the shock mounting of the mic capsule. So even if you do get carried away in a performance or impassioned speech, your vocal channel will be kept clear of noise from bumps and knocks.
Easy set up, simple connection
Component synchronisation is just seconds away. All you need to do is use the included sync function on the transmitter and receiver and you’ll be ready to perform in seconds. Cut down on set up times and get straight to your performance.
You can even check what frequencies are available in your environment with the receiver’s channel scan function. Never be held back by a busy wireless environment again. This is ideal if you need to use more than one wireless set in the same frequency band without interference, or at locations such as festivals where many people might be using a wireless set.
823 – 832MHz and 863 – 865MHz wireless bands
The 863 – 865MHz band is license free across most of Europe, ideal for any small scale application such as bands, or public speakers who just need one channel without paying a license fee. For larger organisations or applications where a license may be required for insurance or other monitoring purposes, licenses for the 823 – 832 MHz band are available from local authorities in many countries.
Durable design in every component
Every component of the Electro-Voice RE3-ND76 Single Handheld Wireless Mic Set is designed to be durable and give you great sound for years to come. The mic capsule is protected by an extremely dent resistant memraflex grille, which protects the internal components and your professional appearance. The transmitter and receiver are both housed in robust metal bodies which can withstand regular and rigorous use.
Features
- Frequency scanning lets you ensure there are free frequencies
- Sync function lets you connect transmitter and receiver in seconds
- Shock mounted capsule greatly reduces handling noise during performance
- Excellent speech intelligibility thanks to the large diaphragm
- Robust construction throughout with metal bodies and dent resistant grille
- Two frequency bands in one system – great if you need a license or license free
What’s in the box?
- ND76-RC3 Wireless Head with ND76 Capsule
- RE3-HHT Handheld Transmitter
- RE3-RX Diversity Receiver
- Microphone stand adapter
- Two receiver antennas
- Universal power supply
- Two AA batteries
- Receiver rack mounting hardware
- Owner’s manual
- Documentation packet
Specifications
RE3-RX RE3 receiver
- Frequency oscillation mode: Phase-locked loop (PLL)
- Sync frequency: Ultrasonic 40 kHz
- Diversity: Antenna diversity
- Bandwidth: 36MHz
- Signal/Noise ratio: >100dB(A)
- Total harmonic distortion(Thd): <0.6% at 1kHz
- Receiving sensitivity: -81dBm for -12dB SINAD
- Frequency response:
- 63Hz 16kHz±2dB (BPT)
- 51Hz 16kHz±2dB (HHT)
- Antenna type: Detachable ½ wave with BNC connector
- Antenna booster power: DC12 – 15V/100mA
- Function display by: LCD
- Control functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
- Sync data options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
- Audio frequency output impedance:
- 240Ω (unbalanced)
- 1400Ω (balanced)
- Squelch and noise muting: Noise muting and tone code locking
- Output ports: 1 x balanced XLRM jack, 1 x unbalanced ¼” TS (6.3mm) jack
- Power supply: DC12 15V/500mA
- Finish: Black polyurethane paint
- Dimensions: 47 mm x 210 mm x 175 mm
- Net weight: 1.23 kg
- Gross weight: 1.49 kg
RE3-HHT RE3 handheld transmitter
- Frequency oscillation mode: Phase-locked loop (PLL)
- Sync frequency: Ultrasonic
- RF power output: 8M (823-865MHz) 10mW
- Display by: LCD + LED
- Function controls: Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
- RF stability: <±10kHz at Fc
- Modulation frequency shift: Wideband FM ±48kHz deviation
- Harmonic radiation: <-50dBc
- Battery: 2 x AA alkaline battery or NiMH rechargeable battery
- Charging contacts: Yes
- Microphone coupling: 1.25” diameter, 28 UN-2A thread pitch
- Microphone electrical contact: 3-ring/3-pin
- Finish: Black polyurethane paint
- Height: 191mm
- Width at threaded end: 37mm
- Width at control cover: 22mm
- Net weight (without head): 346 g
- Gross weight (without head): 480 g
ND76-RC3 wireless mic head with ND76 capsule
- Element type: Dynamic neodymium magnet structure
- Frequency response, close: 30 Hz – 17 kHz
- Frequency response, far: 70 Hz – 17 kHz
- Polar pattern: Cardioid
- Sensitivity, open circuit voltage at 1 kHz: 5.6 mV/Pascal (-45 dBV/Pa)
- Maximum SPL: 135.5 dB SPL (1% THD)
- Impedance: 1000 ohms
- Power requirements: 4-8 VDC
- Polarity: Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact
- Electrical contact: 3-Ring/3-Pin
- Threaded coupling: 1.25” diameter 28 UN-2A thread pitch
- Finish: Black polyurethane paint
- Materials: Aluminum, steel, steel wire grille screen
- Length: 91 mm
- Diameter: 50.5 mm
- Net weight: 184 g
- Shipping weight: 238 g
