ECO 2 Belt Pack Transmitter
Product type:Wireless Microphone System Accessories
Type: Belt Packs
Channels: 1
Inputs: Mini-XLR (3-pin) with phantom power (for headset)
Frequency response: 60 – 16.000 Hz
Rated HF output power: 10 mW
Operating time: >10 h (with alkaline batteries)
Other features: incl. batteries
Controls: Mic / 0dB / -10 dB switch, power (on/off/mute)
Indicators: battery status
Operating voltage: 2 x AA battery
Width: 65 mm
Height: 85 mm
Depth: 23 mm
Weight: 0,1 kg
LD Systems WS 100 MH 1 Headset
Type: Headsets
Directivity: Cardioid
Frequency response: 20 – 20.000 Hz
Nominal impedance: 680 Ohm(s)
Phantom power requirements: 5 V
Microphone input: Mini-XLR (3-pin, female)
Weight: 0,049 kg
Accessories (included): Foam windscreen

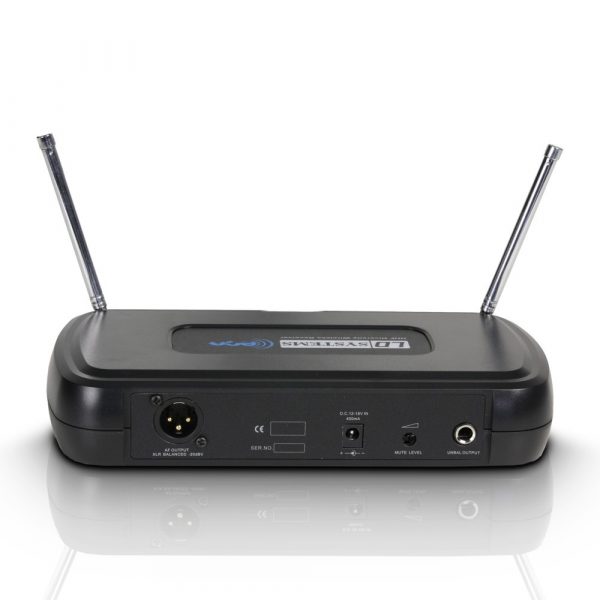

LD Systems ECO 2 R 2 Receiver
Type: Receivers
Modulation Type: FM
Antenna inputs: 2
Antenna connector: fixed to housing
Noise reduction: Squelch
Signal-to-noise ratio: > 105 dB
Audio output, balanced: XLR
Audio output, unbalanced: 6.3 mm jack
Controls: Mute Level (Squelch), volume
Indicators: Antenna A/B, Audio signal (Norm / Peak), Power
Operating voltage: 12 – 18 V DC, 400 mA, External Power Supply
Width: 235 mm
Height: 44 mm
Depth: 118 mm
Weight: 0,6 kg
Accessories (included): Batteries, Power supply
