LD Systems U308 BPH Wireless Microphone System with Bodypack and Headset – 863 – 865 MHz + 823 – 832 MHz


  • Diversity UHF wireless system with FM technology
  • 12 selectable channels
  • 100 m transmission range in ideal conditions
  • Simultaneous operation of up to 6 systems
  • ASC infrared transmitter and receiver syncing
  • Pilot tone squelch
  • 10 h transmitter operation on two AA batteries
  • Metal housing
  • Optional rackmount kit available as accessory

Only 1 left in stock


Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.


Product type:  Wireless Microphone Systems
Type:  Set
Transmission frequency range:  823 – 832 MHz, 863 – 865 MHz
Weight:  0,85 kg
Items in this set

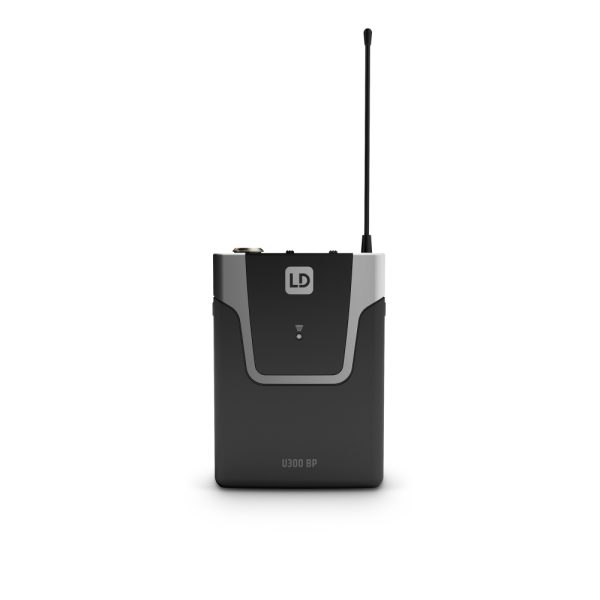

LD Systems U308 BP Bodypack transmitter
Product type:  Wireless Microphone System Accessories
Type:  Bodypack
Frequency response:  25 – 16,000
Transmission frequency range:  823 – 832 MHz, 863 – 865 MHz
Channels:  12
Groups:  1
Inputs:  Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Signal-to-noise ratio:  104 dB
Rated HF output power:  10 mW
Controls:  Gain (3-way switch), Power On/Off
Indicators:  ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Operating voltage:  2 x AA batteries
Operating time:  >10 h
Width:  65 mm
Weight:  0,085 kg
Height:  91 mm
Depth:  25 mm
Other features:  Belt clip, IR frequency synchronisation, Pilot tone
LD Systems U308 R Receiver
Product type:  Wireless Microphone System Accessories
Type:  Receivers
Modulation Type:  FM
Frequency response:  25 – 16,000
Transmission frequency range:  823 – 832 MHz, 863 – 865 MHz
Channels:  12
Groups:  1
Antenna inputs:  2 x fixed
Signal-to-noise ratio:  104 dB
Noise reduction:  Squelch
Transmission optimization:  Pilot tone
Total Harmonic Distortion (THD):  < 0.3 %
Controls:  5 LED VU meters, ASC Sync, Channel down, Channel up, Line/Instrument Level, Power, volume
Indicators:  5 LED VU meters, Antenna A/B, LC display
Audio output, balanced:  XLR
Operating voltage:  12 V DC – 18 V DC (500 mA), external power supply
Audio output, unbalanced:  6.3 mm jack, switchable unbalanced output level
Accessories (included):  2 x AA battery, Audio cable, Power supply
Width:  211 mm
Max. output level:  +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Weight:  0,7 kg
Height:  43 mm
Depth:  120 mm
Other features:  IR frequency synchronisation
LD Systems WS 100 MH 1 Headset
Product type:  Wireless Microphone System Accessories
Type:  Headsets
Frequency response:  20 – 20.000
Directivity:L  Cardioid
Nominal impedance:  680 Ohm(s)
Phantom power requierements:  5 V
Microphone input:  Mini-XLR (3-pin, female)
Accessories (included):  Foam windscreen
Weight:  0,049 kg
