LD Systems U508 HHC Wireless Microphone System with Condenser Handheld Microphone


  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display

Only 1 left in stock

The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 – 608 MHz and 655 – 679 MHz, where 12 systems can be operated simultaneously, and 823 – 832 MHz + 863 – 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.


Product type:  Wireless Microphone Systems
Type:  Handhelds
Transmission frequency range:  823 – 832 MHz, 863 – 865 MHz
Weight:  2,572 kg
Items in this set
LD Systems U508 MC Condenser handheld microphone
Product type:  Wireless Microphone System Accessories
Type:  Microphones
Transmission frequency range:  823 – 832 MHz, 863 – 865 MHz
Channels:  96 (8 groups of 12 channels)
Groups:  8
Microphone type:  condenser
Directivity:  Cardioid
Frequency response:  60 – 16.000
Signal-to-noise ratio:  >95 dB
Rated HF output power:  Variable (2mW, 10mW, 30mW)
Controls:  arrow keys (up/down value entry), Power On/Off, select
Indicators:  OLED Display
Operating voltage:  2 x AA battery
Operating time:  >10 h (with alkaline batteries)
Length:  257 mm
Diameter:  50 mm
Weight:  0,25 kg
Other features:  incl. batteries, IR frequency synchronisation

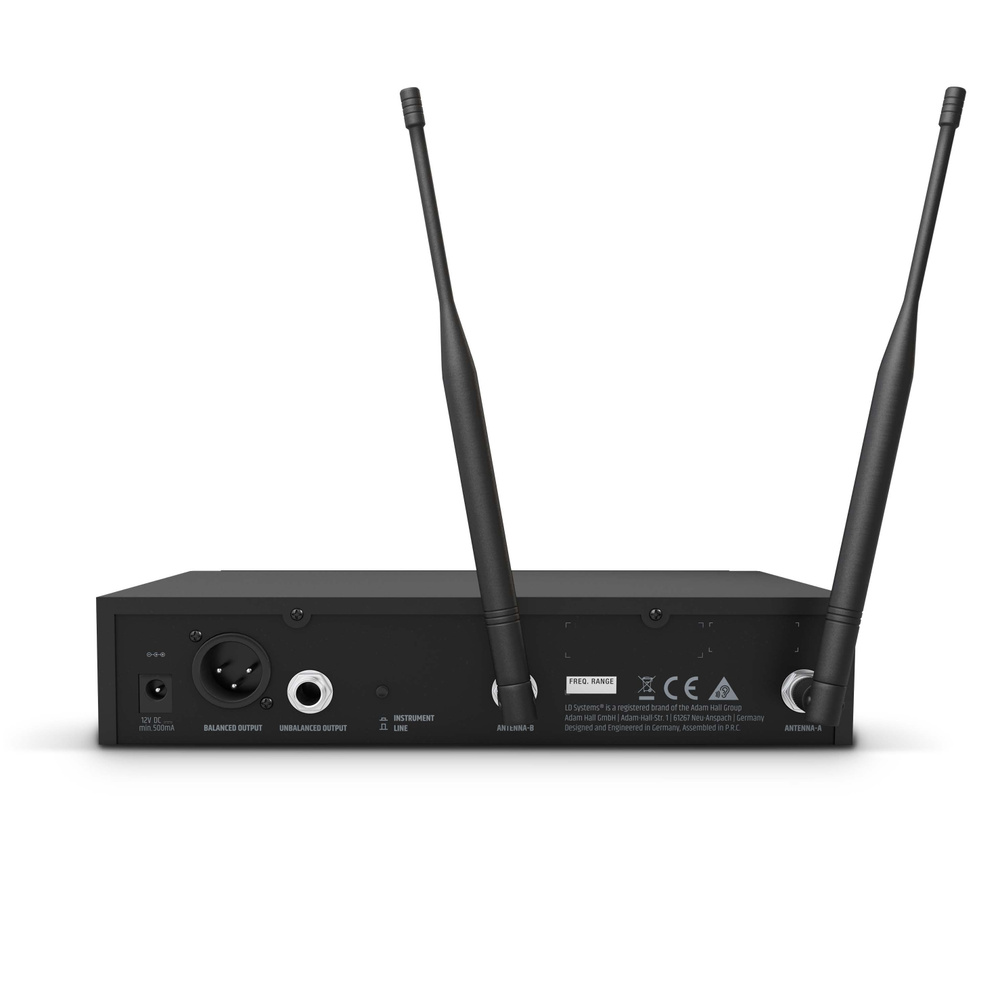

LD Systems U508 R Receiver
Product type:  Wireless Microphone System Accessories
Type:  Receivers
Transmission frequency range:  823 – 832 MHz, 863 – 865 MHz
Modulation Type:  FM
Channels:  96 (8 groups of 12 channels)
Groups:  8
Antenna inputs:  2
Antenna connector:  BNC
Frequency response:  30 – 16000
Signal-to-noise ratio:  > 100 dB
Noise reduction:  Squelch
Total Harmonic Distortion (THD):  < 0.3 %
Controls:  digital encoder, Power On/Off, volume
Audio output, balanced:  XLR
Audio output, unbalanced:  6.3 mm jack
Indicators:  OLED Display
Operating voltage:  12 – 18 V DC
Max. output level:  +10 dBu
Weight:  0,85 kg
Other features:  channel search function, IR frequency synchronisation, Pilot tone
Operating voltage:  12 V DC, 500 mA
Width:  212 mm
Height:  44 mm
Depth:  159 mm
Accessories (included):  2 x antenna, Audio cable, power adapter
