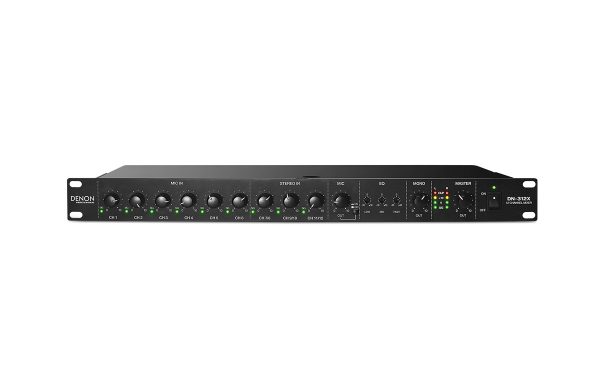

The Denon DN-312X 12-Channel Line Mixer is a 12-channel line mixer featuring six mic/line combo inputs, a 3-level EQ and a 1U size. The DN-312X is a 1U rack-mounted 12-channel mixer featuring six mic/line combination inputs each with switchable phantom power and six additional line-level inputs. It has balanced XLR outputs, a 1/4″ (6.3mm) mono output that can be used to connect the DN-312X to a remote mixer, and a pair of RCA stereo outputs to connect to a remote recording device.
Also included is a 1/4″ (6.3mm) mic monitoring port that can be used to monitor the mics’ signals. The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. It has a 3-level equaliser and a controlled priority for Mic/Line 1. It can be powered from a standard AC or a 24V DC power source.
The main features of the Denon DN-312X 12-Channel Line Mixer include:
- 6 HDHQ™ Combination inputs with MIC, Phantom and Line selector switches
- 6 mono (3 stereo) RCA Inputs
- Mic monitor 1/4” output for private listening of all mic inputs
- Balanced XLR line outputs
- Mono 1/4” line output can be used to feed audio to external recording device
- AC or 24V DC power inputs
- Mic 1 Priority Control
- Master and Individual level controls
- 1U rack mountable
Input Channels
Microphone Input:
- 6 Balanced XLR Connectors (Channels 1–6)
Frequency Response:
- 20 Hz – 22 kHz
THD+N:
- < 0.03% @ 1 kHz
Sensitivity:
- -40 dBu
Maximum Input:
- -19 dBu
Maximum Voltage Gain:
- 60 dB (Mic Input to Line Out, Mic Out & Mono Out)
- 50 dB (Mic Input to Rec Out)
Signal-to-Noise Ratio:
- > 103 dB
Phantom Power:
- 18–21 V, switch control
Line Inputs:
- 6 Balanced XLR Connectors (Channels 1–6)
Frequency Response:
- 20 Hz – 22 kHz
- 20 Hz – 22 kHz
THD+N:
- < 0.03% @ 1 kHz
Sensitivity:
- 0 dBu
Maximum Input:
- +21 dBu
- +21 dBu
Maximum Voltage Gain:
- 20 dB (Mic Input to Line Out, Mic Out & Mono Out)
- 10 dB (Mic Input to Rec Out)
- 10 dB (Line Input to Line Out)
- 0 dB (Line Input to Rec Out)
- 4 dB (Line Input to Mono Out)
Signal-to-Noise Ratio:
- > 103 dB
- Stereo Balanced RCA Connectors (Channels 7/8-11/12)
THD+N:
- < 0.03% @ 1 kHz
Sensitivity:
- +10 dBu
Signal-to-Noise Ratio:
- > 103 dB
Impedance:
Mic/Line Input:
- 1.4 kΩ
Line Input:
- > 10 kΩ
All Outputs:
- 120 Ω
Equalizer
High:
- +15 dB @ 12 kHz
Mid:
- +12 dB @ 2.5 kHz
Low:
- +15 dB @ 80 Hz
Crosstalk
Adjacent Inputs:
- < -70 dB @ 1 kHz (Channels 1–6)
- < -68 dB @ 1 kHz (Channels 7/8–11/12)
Input to Output:
- < -82 dB @ 1 kHz
Main MixOutput
Line Output:
- 0 dBu (+2 dBu), balanced
Mic Output, Mono Output:
- 0 dBu (+2 dBu), unbalanced
Maximum Output:
- +21 dBu balanced/unbalanced, 1/4” (6.35 mm) jacks
Noise (Bus):
- < -83 dB @ 20 Hz – 22 kHz
General
Power connection:
- IEC
Input Voltage:
- 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V
Dimensions (width x depth x height):
- 19.0” x 7.7” x 1.7” (483 x 195 x 44 mm)
Weight:
- 6.4 lbs (2.9 kg)
