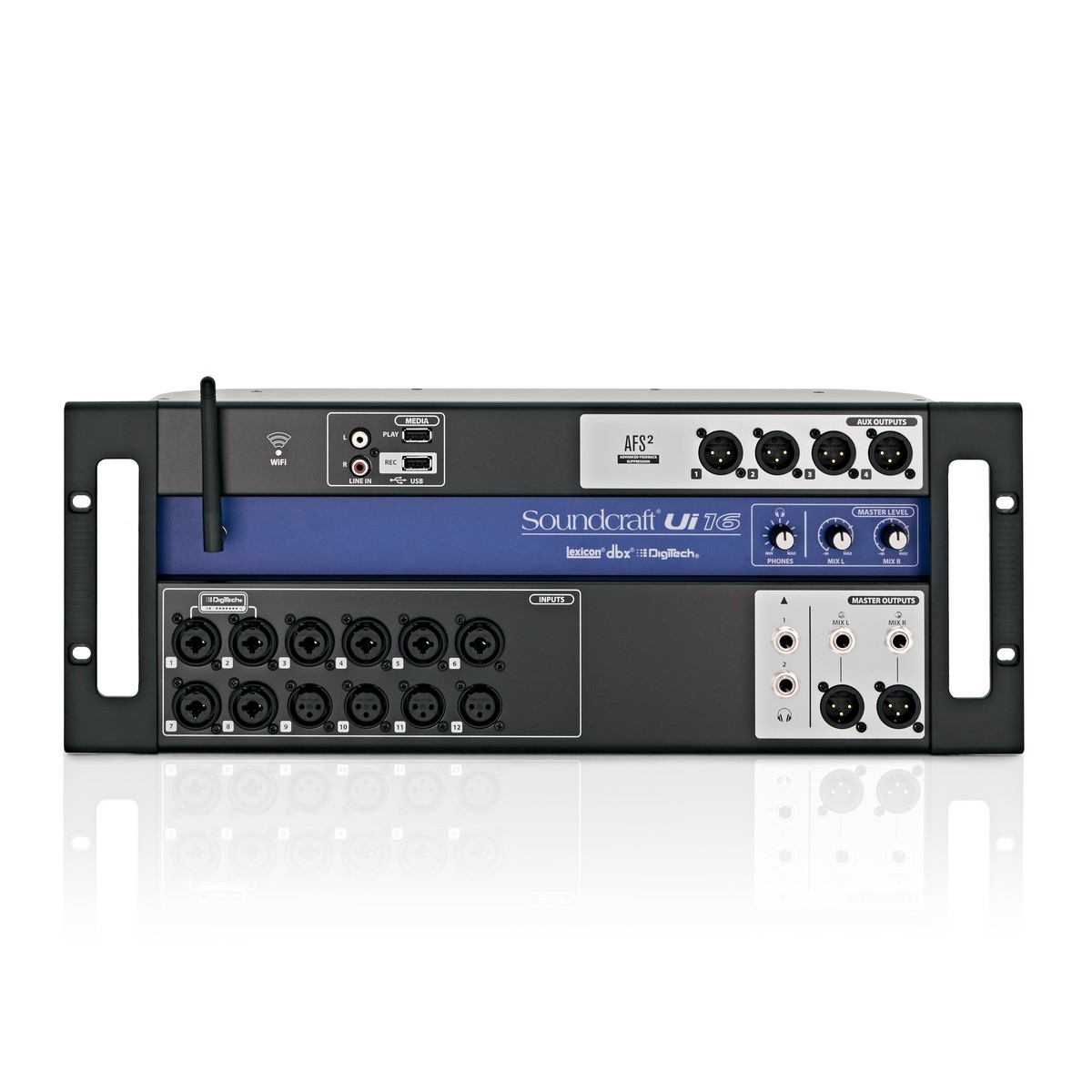

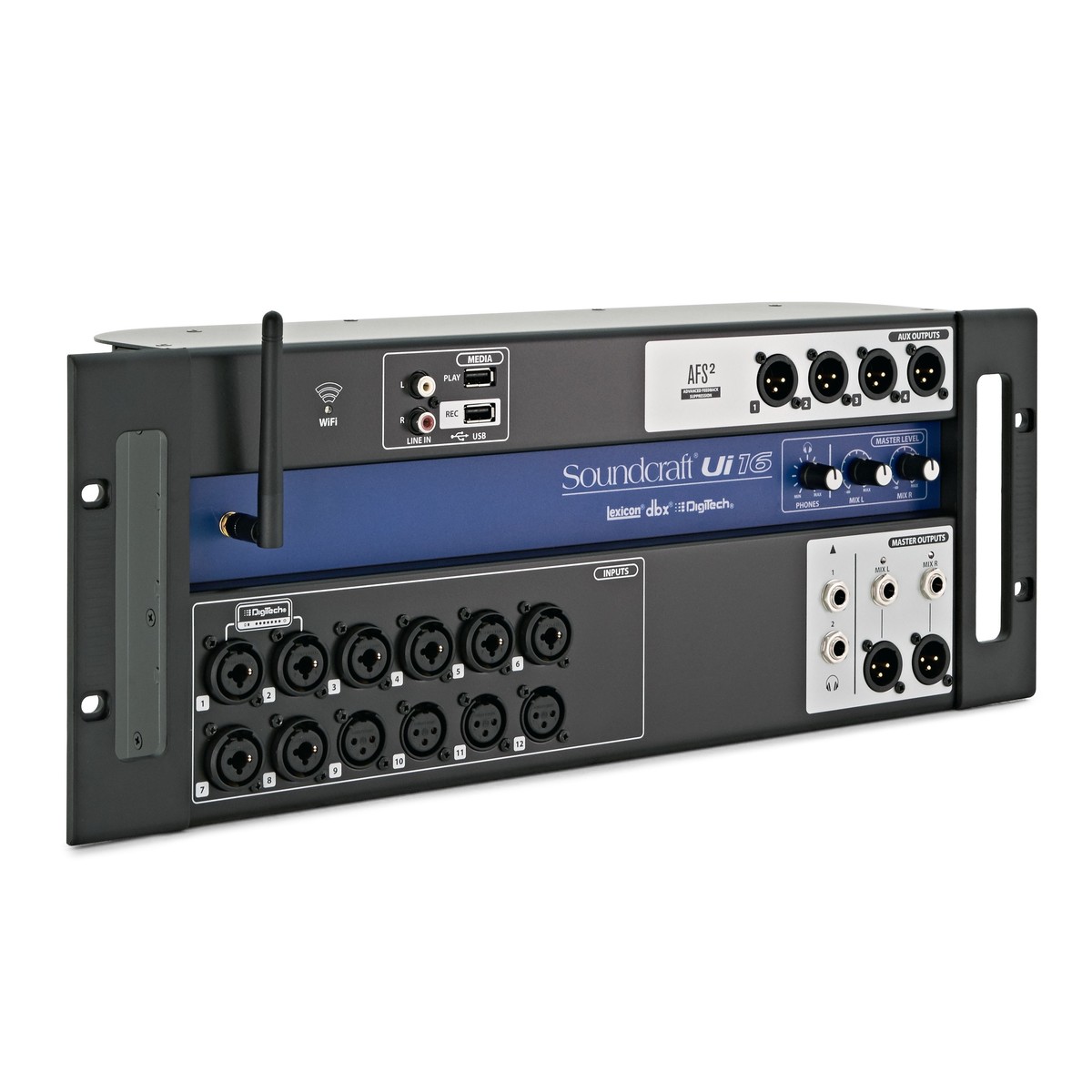

Soundcraft Ui16 Digital Rack Mixer

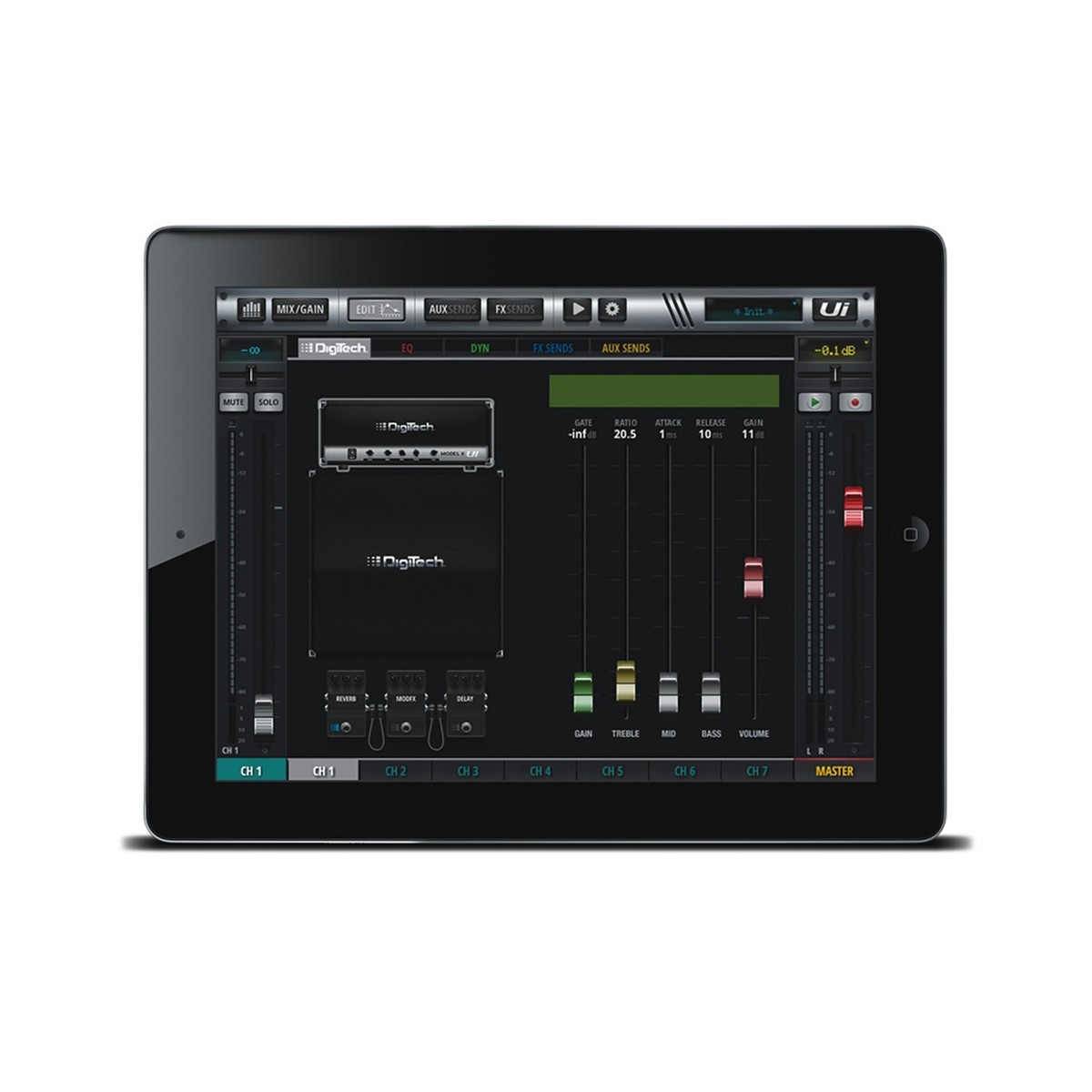

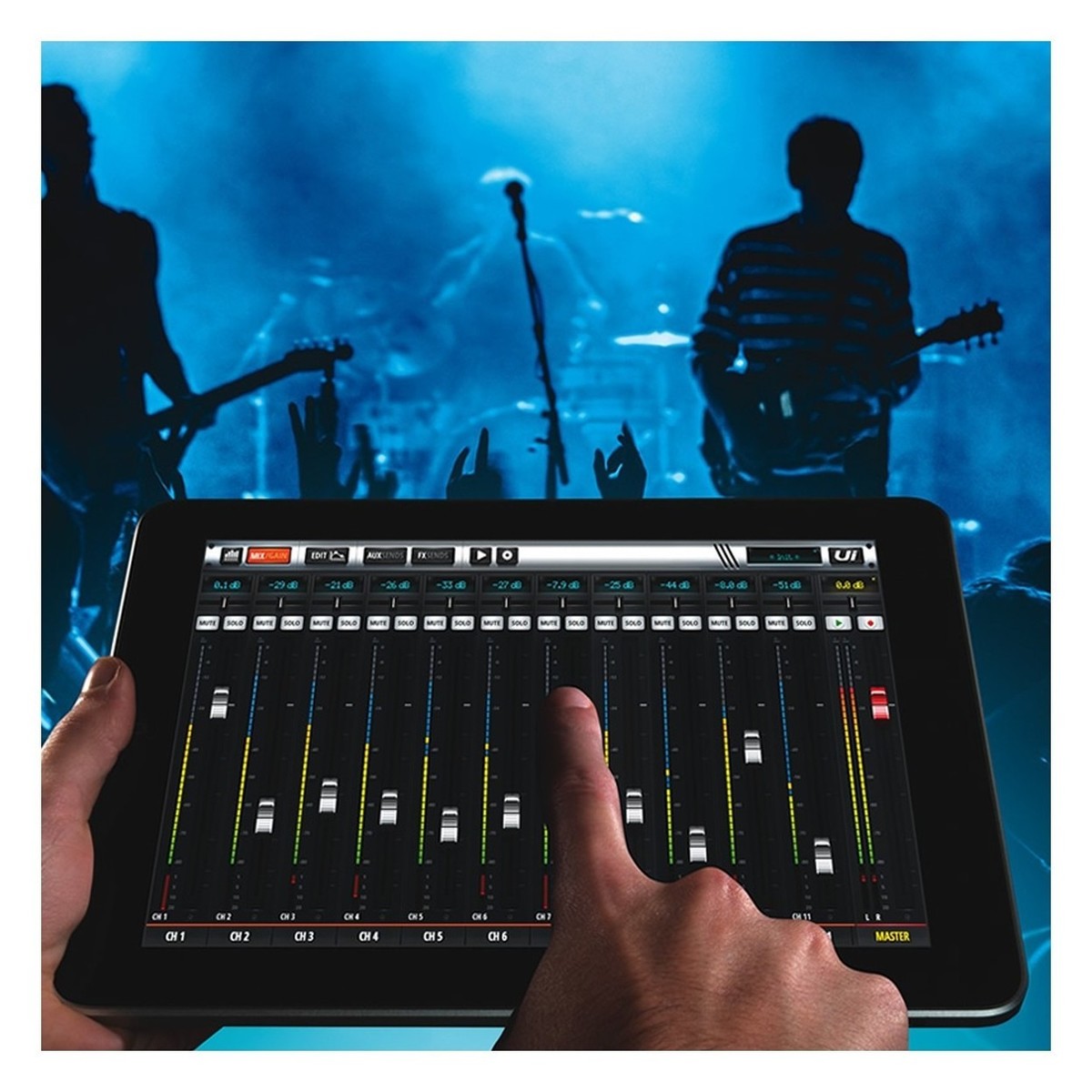

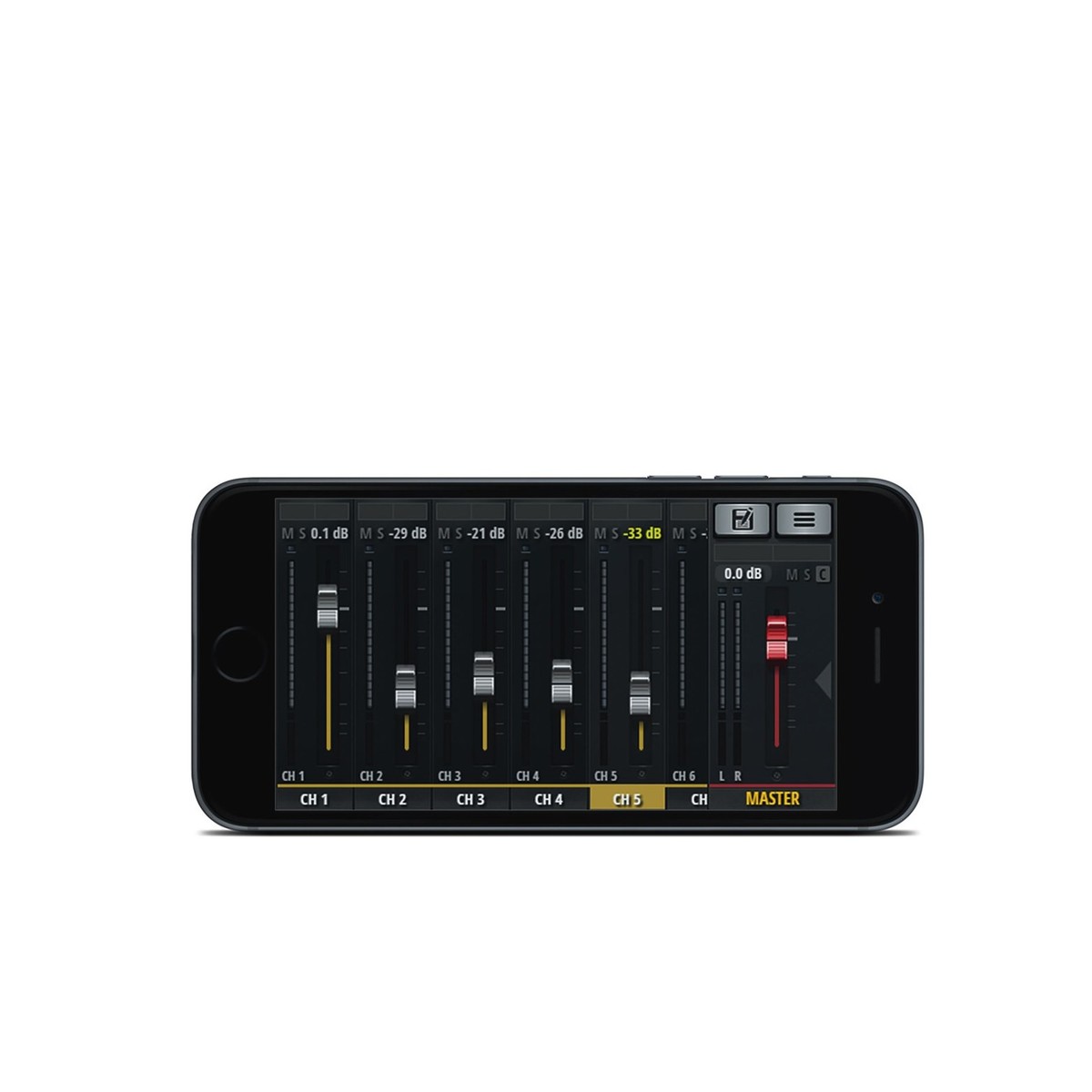

Make every seat the best seat in the house. The Soundcraft Ui16 Mixer sets you free from a fixed desk and ensures you can give the best live sound to every single audience member at every single gig. Hear your mix from every corner of the venue. All you need is a Ui16 and a compatible smartphone.You can take total control of your mix from anywhere, even on stage. It has never been easier for bands on stage to perfect their own sound, all you need to do is connect the Ui16 to a compatible device and get mixing. Make any surface your mixer – the Ui16 is compatible with iOS, Android, Windows, Mac OS, and Linux devices. If it has a web browser it can connect to the Ui16.Don’t just mix – create. With built in Lexicon DSP you can not only achieve professional mixes but also add creative flair to your sound. Take advantage of included reverb, delay, and chorus effects from Lexicon along with DigiTech amp modelling and much much more.

Versatile Input Options

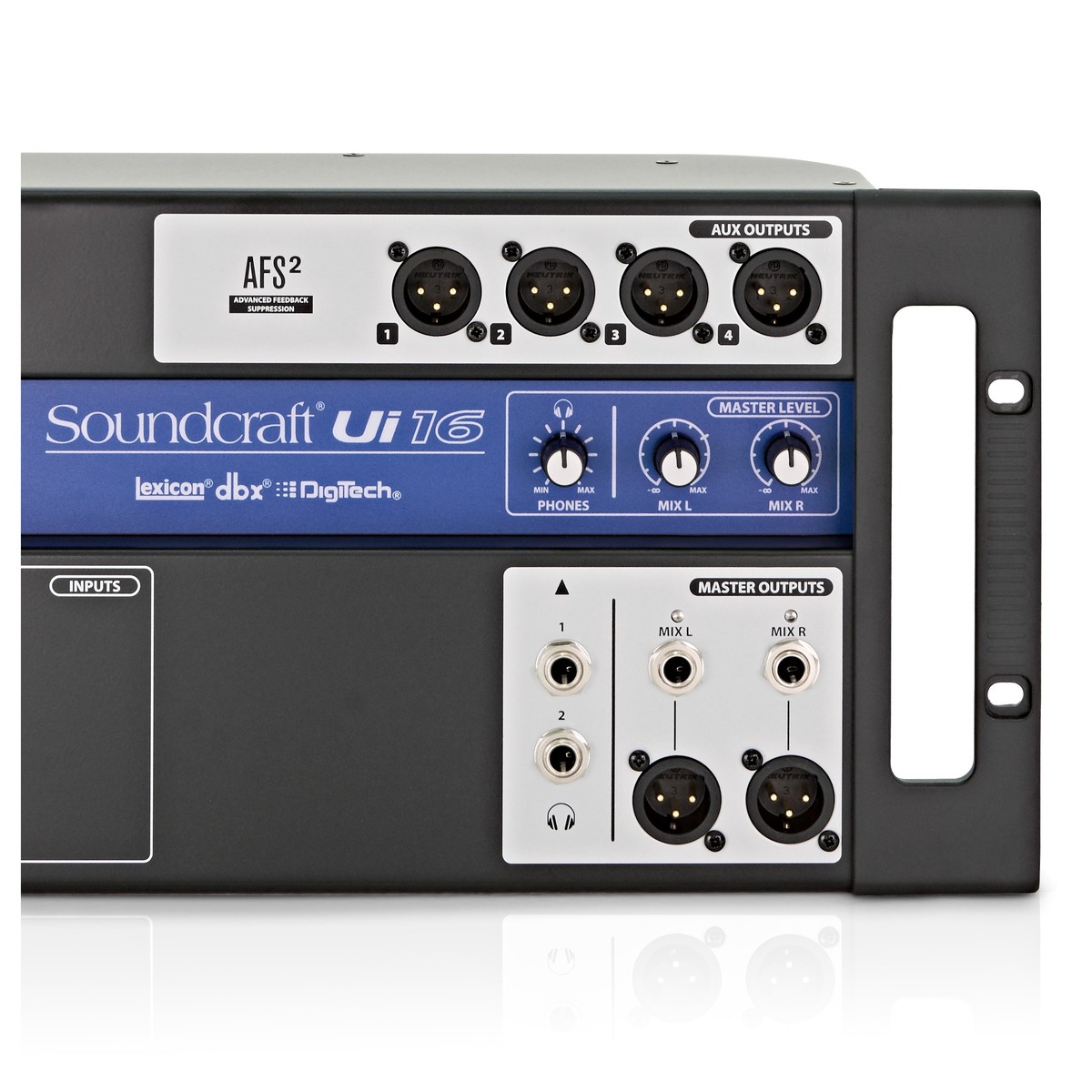

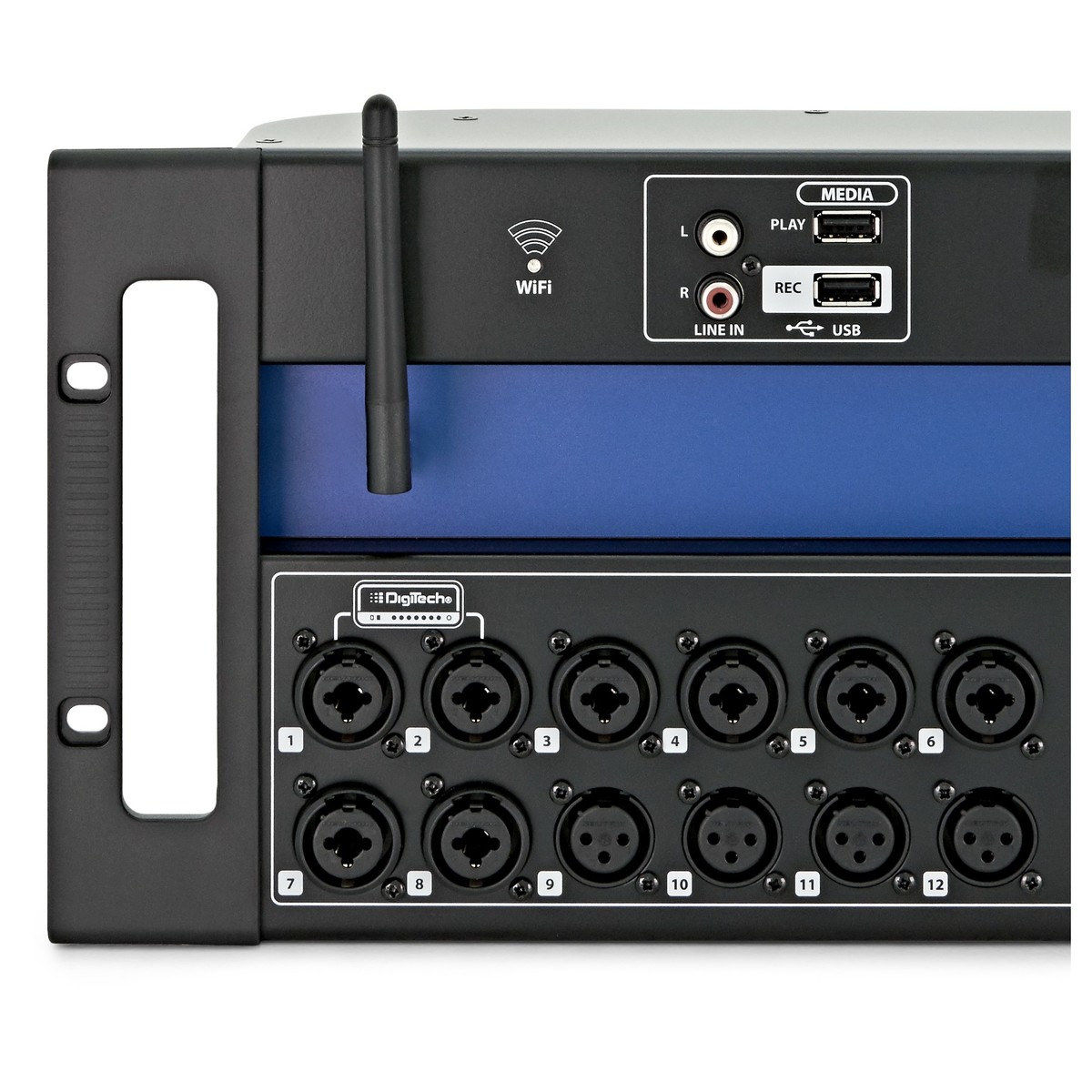

Great for musicians, bands and music venues, the Soundcraft Ui16 features eight XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with two balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats.

Connect Up To 10 Devices

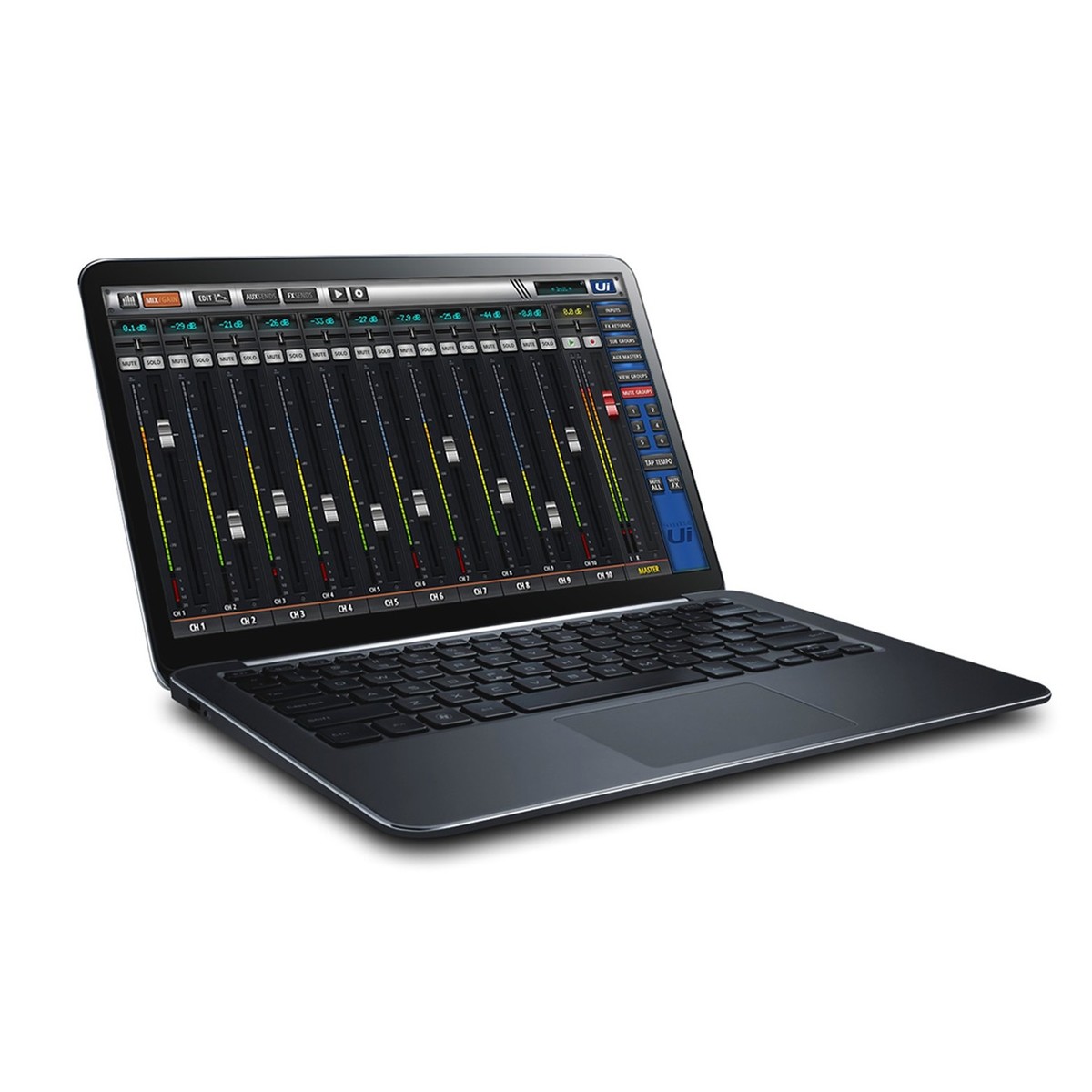

The Ui Series mixers can connect up to 10 devices at once with either Wi-Fi or a hard-wired connection. You can control the Ui16 by any connected device via a standard web browser – no Apps, no OS limitations, no constraints. In addition, the Ui12 and Ui16 each feature built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.

Standard Soundcraft Features

Both mixers offer 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. Reverb, Delay and Chorus are all built in as well as mixer controls including Subgroups, Mute groups and View groups. The security lockout features allow customization of device access to only specific functions and mixes if needed, great for a front of house sound technician to allow a band or musician to control their own monitor mixes.

Easily Recall Presets

The Ui Series mixers feature full Show/Snapshot recallability with channel recall safes. This feature is great for when you know you need certain settings for a song you’ve previously played, you can quickly and easily recall your presets. Both mixers also offer independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.

Features

• Tablet/PC/Smartphone Controlled Digital Mixer
• Integrated Wi-Fi
• Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
• Use up to 10 control devices (tablets, phones, PCs) simultaneously
• Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
• Fully recallable and remote-controlled mic preamps
• 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
• 31-band Graphic EQ, Noise Gate and Compressor on all outputs
• Real-Time Frequency Analyser (RTA) on inputs and outputs 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
• Subgroups, Mute Groups, View Groups, and more mixer controls
• Show/Snapshot recall with channel safes and security lockout
• 2-channel USB audio playback and recording

Specifications

• Channels 16
• Mic Preamps: 8 x XLR/TRS Combo, 4 x XLR
• Inputs – Other: 1 x Stereo (RCA)
• Outputs – Main: 2 x XLR, 2 x TRS
• Outputs – Other: 4 x XLR
• Send/Return I/O: 4 x XLR

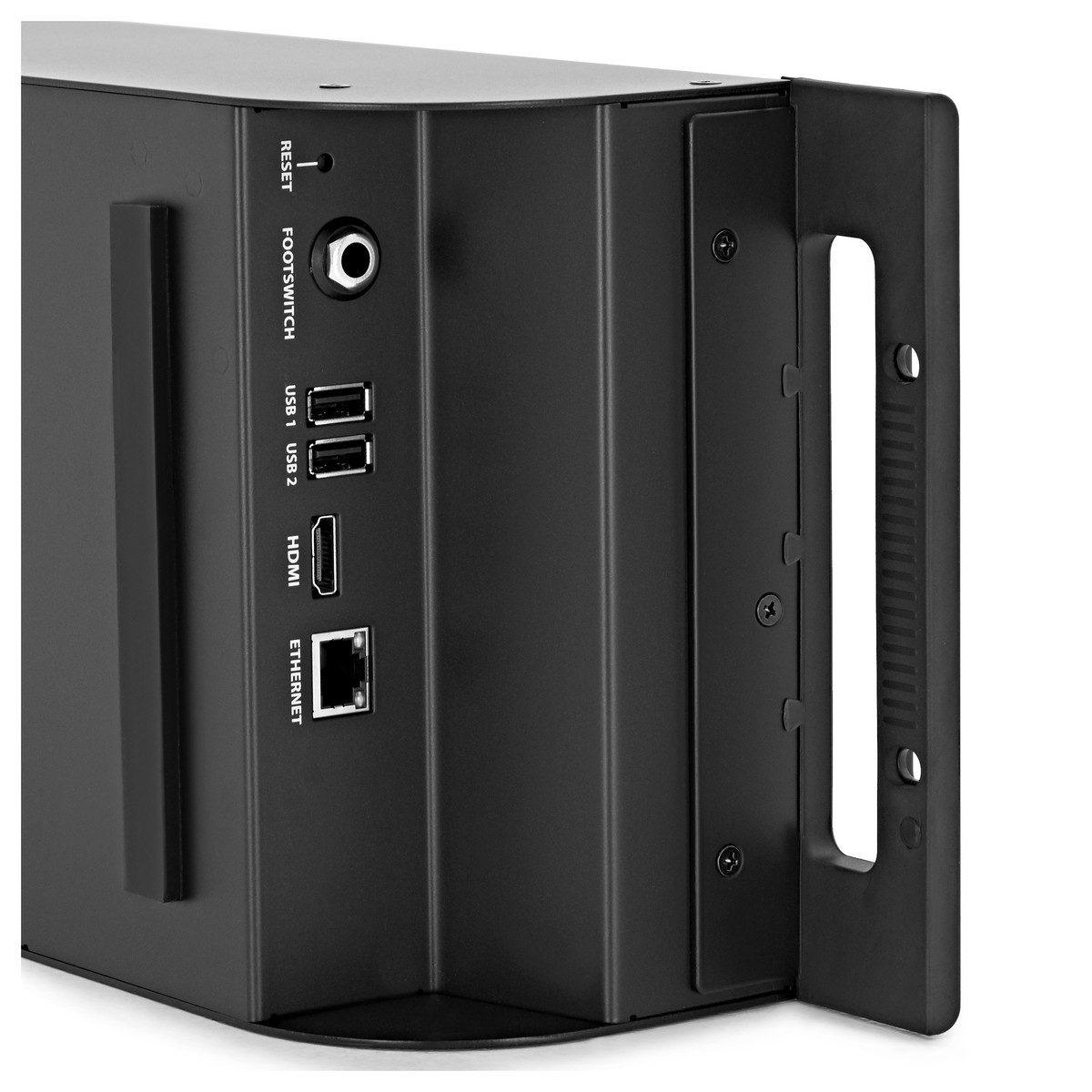

• Data I/O: Ethernet
• USB: 3 x Type A
• Headphones: 2 x 1/4″
• EQ Bands: 4-band Parametric
• Effects: Yes
• Rackmountable: Yes (4U)
• Weight: 7.9 lbs/ 3.6 KG
• Dimensions: 7″ x 4.3″ x 19″ (H x D x W)
