Integrated USB Soundcard
The Allen & Heath Xone: 23C Mixer eliminates the need for an external soundcard making it compatible with digital DJ software including Serato and Traktor. Plug and play straight into your laptop via USB through the 4 stereo channel 96kHz, 24-bit USB soundcard. These features allow the Xone:23C to be used in a streamlined setup without sacrificing quality.
A range of connectivity options
The soundcard can be used to send both power and MIDI to Xone:K series controllers via X:Link. This can help free up USB ports for other devices. When performing live, up to four music sources can be connected simultaneously, including turntables and media players. This is ideal when performing at events requiring audio between sets.

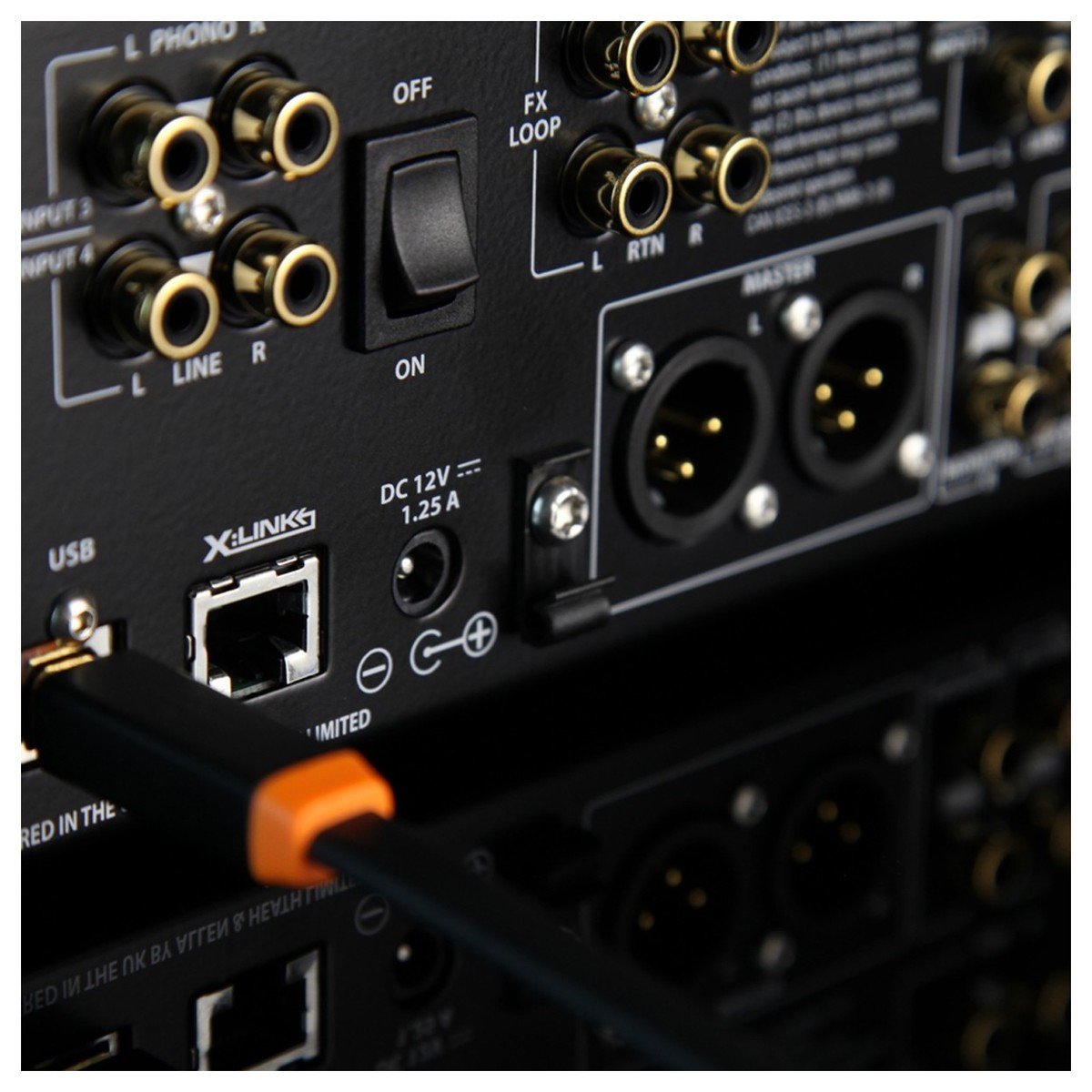

It’s easy to integrate your favourite external FX unit into your setup through the external FX loop. This is done via the stereo send and return connections located on the back of the console. A monitor mix can also be ran alongside the master output.

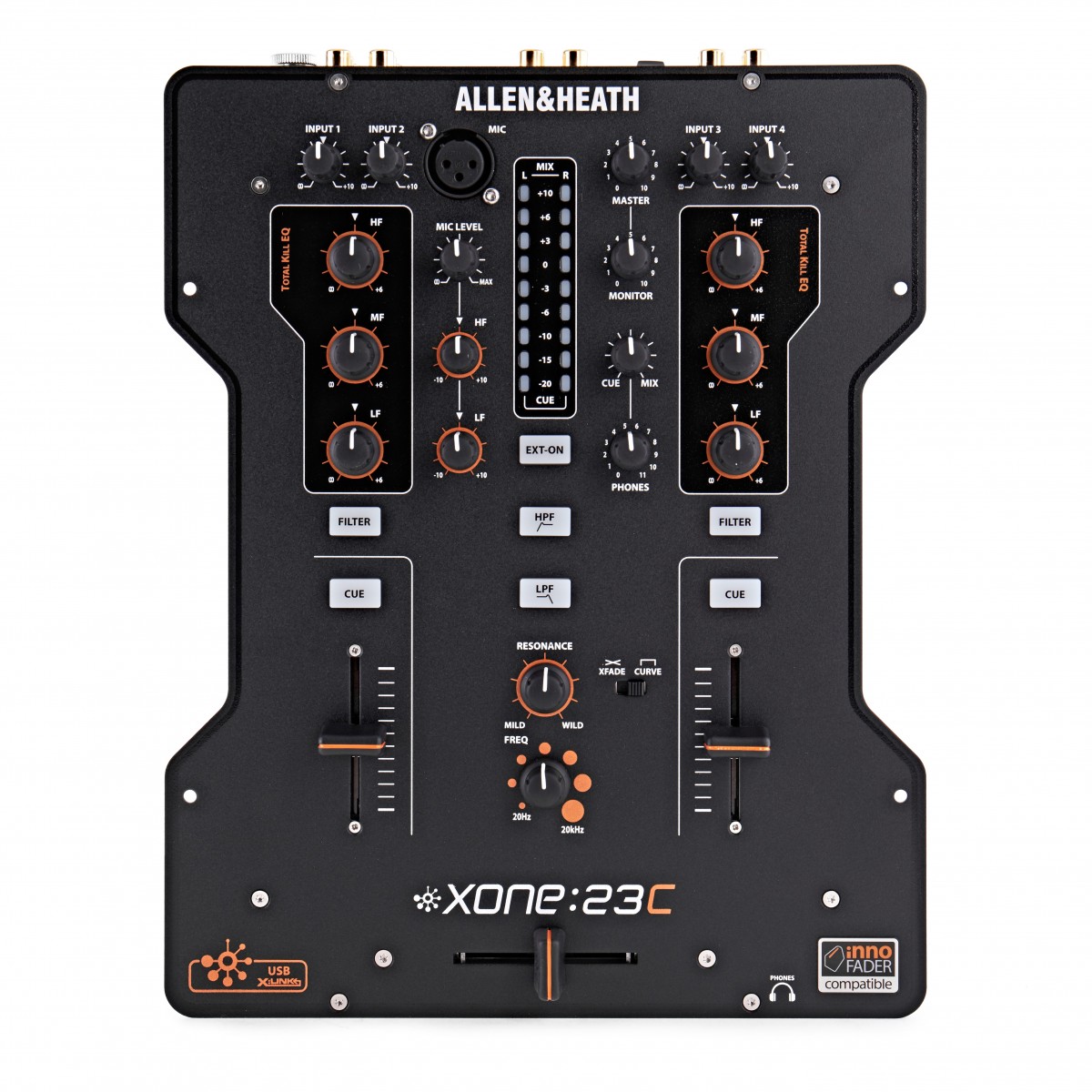

The functional front panel featuring everything you need
All the controls on the steel faceplate are designed to make mixing easier. Each channel has individual 3 band, total kill EQ allowing you to creatively manipulate the frequencies. User-friendly soft-touch, backlit controls and light meters allow you to have ultimate control and visibility in every environment.

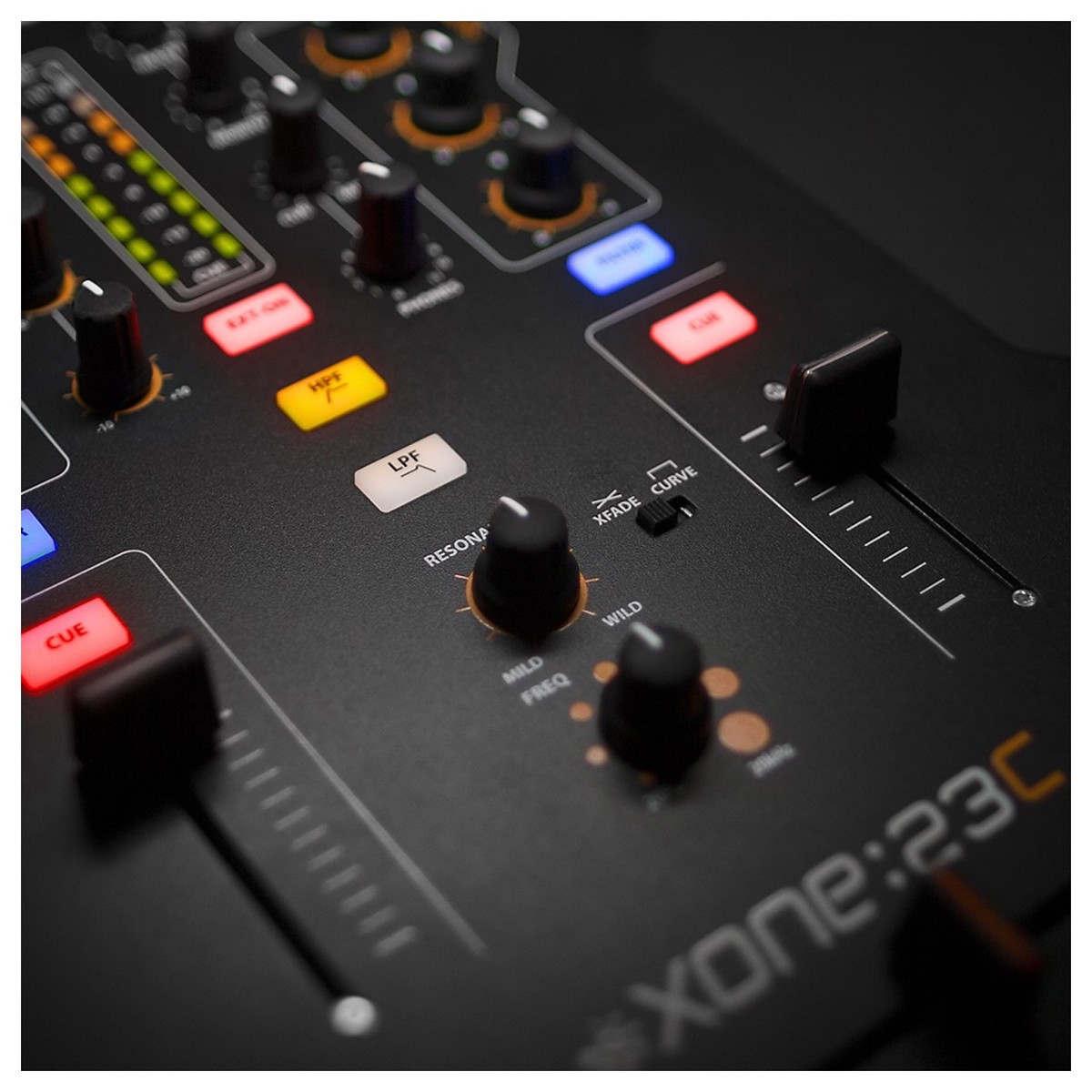

The crossfader features three different curve settings, ranging from a smooth transition into a sharp response. For scratch DJ’s, the crossfader can be upgraded to a custom Innofader allowing for ultimate performance.
Features
- Stereo 4 channel 96kHz 24-bit internal soundcard
- X:LINK for plug and play connection to Xone:K series controllers
- VCF Filter system – low-pass, high-pass and band-pass filters plus frequency and resonance controls
- 3-band toal kill EQ
- Soft touch, backlit controls
- Compatible with optional Innofaders
- External FX loop with send and return connectors
- Main mix output with XLR L/R connectors
- Independent booth output
- 9-segment peak hold meters
- 3.5mm and 1/4″ headphone outputs
- Includes MixVibes Cross LE DJ software
Specifications
Connections
Inputs
- Phono
- Impedance: 47K/330pF
- Nominal Level: 7mV-100mV
- Line
- Impedance: 20K ohm
- Nominal Level: -10 to +20dBu
- FX RTN
- Impedance: 10K ohm
- Nominal Level: 0 to +20dBu
- Mic
- Impedance:
- Nominal Level: -42 TO –12dBu
Outputs
- Main Mix
- Connection: RCA
- Impedance: 100 ohms
- Nominal Level: +4dBu
- Max Level: +28dBu
- Monitor
- Connection: RCA
- Impedance: 100 ohms
- Nominal Level: -2dBu
- Max Level: +22dBu
- Record
- Connection: RCA
- Impedance: 100 ohms
- Nominal Level: -2dBu
- Max Level: +19dBu
- FX SND
- Connection: RCA
- Impedance: 100 ohms
- Nominal Level: -2dBu
- Max Level: +19dBu
- Headphones
- Connection: 3.5mm and 1/4” TRS Jacks
- Impedance: 1 ohm
- Max Level: 200mW RMS into 30 ohms
Performance
- Distortion
- Nominal Level: +10dBu
- Max Level: 01% THD+N
- Noise 22-22Khz
- Nominal Level: unity
- Max Level: -85dBu un-weighted
- Fader shut off
- Max Level: >-80dB
- Xfade shut off
- Max Level: >-80dB
- Frequency response
- Nominal level: 10Hz to 50kHz
- Max Level: +/-0dB
- Product weight: 2.7kg
- Weight packed: 4kg
