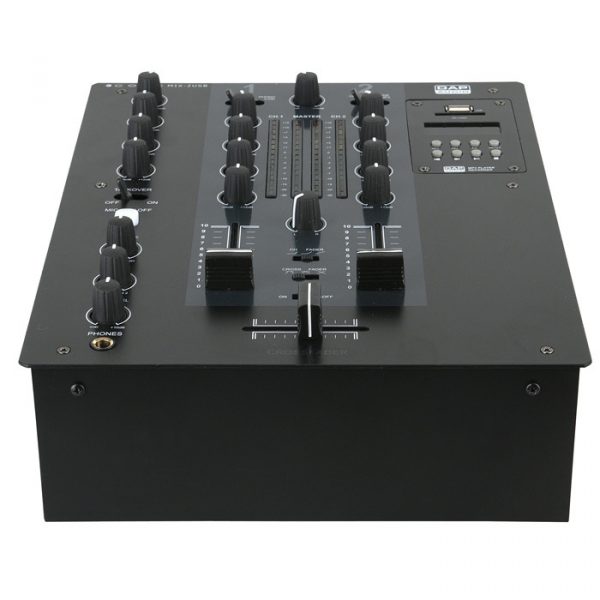

DAP Core Mix-2 USB


  • 2 built-in USB PC/MAC audio interfaces
  • High quality components and structure
  • 60 mm VCA faders
  • MP3 USB SD recorder
  • LED VU meter each channel

Out of stock

The CORE MIX-2USB is a professional 2 channel analogue DJ mixer. It has 4 analogue inputs and 2 independent USB audio interfaces. This makes it easy to connect your laptop and route the output of your DJ software directly through the MIX-2 USB. The headphone output has a low tone control which makes it possible to adjust your favorite sound. Both channel and cross-faders have fader curve selections. All the pot meters are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It has a MP3 module which can record and playback your life performance directly on an USB or SD device.


Mono Inputs:  1
Mono Input Connector:  3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs:  4
Stereo Input Connector:  RCA
Phono Audio Inputs:  1
Phono Audio Input Connector:  RCA
Main Outputs:  2
Main Output Connector:  3-pin XLR, RCA
Monitor Output:  1
Monitor Output Connector:  RCA
Headphone Output:  1
Headphone Output Connector:  TRS balanced 6.3 mm
Record Output:  1
Record Output Connector:  RCA
Digital Playback
USB Input Audio Interface:  2
Input Connection Audio Interface:  USB-B
Sample Rate Audio Interface:  48 kHz
Supported Audio Interface Input Channels:  2
Supported Audio Interface Output Channels:  2
Extension Module
Maximum Storage Size Audio Module:  16 GB
Media In/Out Audio Module:  SD Card, USB-A
Bitrate Audio Module:  128 kbit
Audio Module Sample Rate:  44,1 kHz
Playback Functions Audio Module:  Delete, Down (Skip), EQ, Pauze, Play, Record, Repeat, Stop, Up (Skip)
Audio Specifications
THD Level:  < 0.1%
Crosstalk:  75 dBu
AD/DA Convertor Sample Rate:  48 kHz
Frequency Response Minimum:  20 Hz
Frequency Response Maximum:  20.000 Hz
Software Specifications
Supported Operating Systems:  Mac, Windows
Sound Editing
Parametric Channel Equalizer:  3 Bands
Input Channel Equalizer Range:  26 dB
Channel Input Fixed Frequencies:  70, 1.000,13.000 Hz
Microphone Input Equalizer Range:  12 dB
Parametric Microphone Equalizer:  3 Bands
Microphone Input Fixed Frequencies:  120, 800, 5.000 Hz
Product Properties
LED Indicators:  Input level, Output level
Control and Programming
Display:  LCD
Electrical Specifications and Connections
Power Supply:  100-240 VAC 50-60 Hz
Power Consumption:  8 W
Fuse:  1 A
Power Connector in:  IEC C13 female
Data Connector in:  USB
Mechanical Specifications
Fader Length:  60 mm
Height (mm):  88 mm
Width (mm):  300 mm
Length (mm):  240 mm
Flightcase Size:  10″
Housing:  Metal
Colour:  Black
Weight:  34 kg
IP Rating:  IP20(indoor use only)
Reference Standard:  CE
Included Items
Included Cables:  IEC cable
