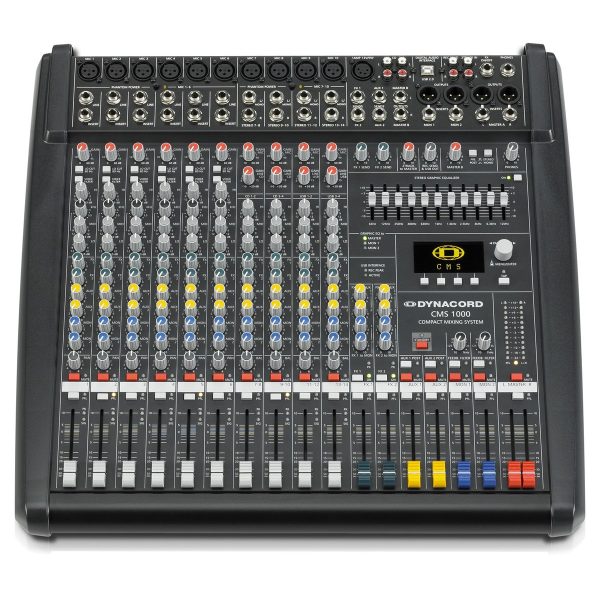

Dynacord CMS 1000-3 10-Channel Mixer

Premium channel features

The CMS 1000-3 provides you with eleven mic/line level inputs. Each of the inputs offers a variety of professional features such as equalisation, gain adjustment, and panning.The inclusion of phantom power allows you to record with your favourite condenser microphones.These will help you create the most fantastic performances.Each channel provides you with three sends. These are FX, Auxiliary and Monitor. You’ll also be able to check the quality of the signal at all times, thanks to LED monitoring.

Flexible effect processing

Take your productions to the next level. The inclusion of two 24-bit DSP powered effect processors empower you will studio quality sounds to inject into your performances. As they’re DSP powered, they operate independently, that means no extra strain is put onto your desk, reducing the risk of power failure, and overheating in high-profile, high-pressure scenarios.

Included in the box

• 1 x CMS 1000-3
• 1 x User Manual
• 1 x Mains Cord
• 1 x Warranty Certificate With Safety Instructions
• 1 x DVD With USB Drivers and Cubase LE Software

Features

• First-class components with faders & pantentiometres
• Intuitive, easy-to-use mixer section
• 2 x editable digital effects devices
• Professional 4 x In / 4 x Out digital interface
• Stereo EQ for main mix
• Large OLED display

Specifications

• Channels (Mono and Stereo): 6 and 4
• Auxiliaries (MON, FX, AUX): 2 Pre, 2 Post, 2 Pre/Post Switchable
• Mic Gain (Mono/Stereo): 0 to +60 dB / +10 to +60 dB
• Line/CD/USB Gain (Stereo): -10 to +20 dB
• THD, At 1kHz, MBW = 80kHz
  • Mic Input To Master A L/R Outputs, +16 dBu, Typical:
• Frequency Response, -3 dB: 15Hz to 70kHz
• Crosstalk
  • Fader and FX/AUX/MON-Send Attenuation: >85 dB
  • Channel to Channel:
• CMRR, Mic Input, 1kHz: >80 dB
• Input Sensitivity, All Level Controls In Max Position
  • Mic / Line (Mono) / Line (Stereo) / CD (Stereo): -74 dBu / -54 dBu / -34 dBu / -34 dBu
• Maximum Level, Mixing Desk
  • Mic Inputs: +21 dBu
  • Mono Line Inputs / Stereo Line Inputs: +41 dBu / +30 dBu
  • All Other Inputs: +22 dBu
  • All Other Outputs: +22 dBu
• Input Impedance
  • Mic / Insert Return: 2kΩ / >3.3kΩ
  • 2 Track Return & CD In: 10kΩ
  • All Other Inputs: >15kΩ
• Output Impedance
  • Phones: 47Ω
  • All Other Outputs: 75Ω
• Equivalent Input Noise: -130 dBu
• Noise, Channel Inputs To Master A L/R Outputs, A-Weighted
  • Master Fader Down: -97 dBu
  • Master Fader 0 dB, Channel Fader Down: -91 dBu
  • Master Fader 0 dB, Channel Fader 0 dB, Channel Gain Unity: -83 dBu
• Equalisation
  • LO Shelving: ±15 dB / 60Hz
  • MID Peaking, Mono Inputs: ±15 / 100Hz to 8kHz
  • MID Peaking, Stereo Inputs: ±12 dB / 2.4kHz
  • HI Shelving: ±15 dB / 12kHz
  • Master EQ 11-Band: ±10 dB / Q = 1.5 to 2.5
• Power Consumption
  • Without Lamp / With Lamp: 45W / 50W
• Filter
  • LO-CUT, Mono Inputs: F = 80Hz, 18 dB/oct.
  • Voice Filter, Mono Inputs: Switchable
  • Feedback Filter, MON 1/2: 70Hz to 7kHz, Notch, -9 dB
• Effects
  • Type, Effects Presets: Dual Stereo 24/48-Bit Multi Effects Processors, 100 Factory amd 20 User, Tap-Delay
  • Remote Control: Footswitch, MIDI
• Display: 128 x 64 Pixels, OLED
• Digital Audio Interface
  • Channels: 4 In / 4 Out
  • AD/DA Conversion, Sampling Rate: 24-Bit, 44.1 / 48 / 88.2 / 96kHz
  • PC Interface: USB 2.0, Female Type B
• MIDI Interface: 5-Pin DIN Connector, In/Out
• Protection
  • Mixer Outputs (Relay Controlled): MON 1, MON 2, MASTER A
  • Switching Mode Power Supply: Mains Over/Undervoltage, High Temperature
• Phantom Power: +48V DC
• Power Requirements: 100V to 240V AC, 50/60Hz
• Weight: 9.5 kg
• Dimensions
  • Height: 155 mm
  • Width: 510.5 mm
  • Depth: 498.5 mm
