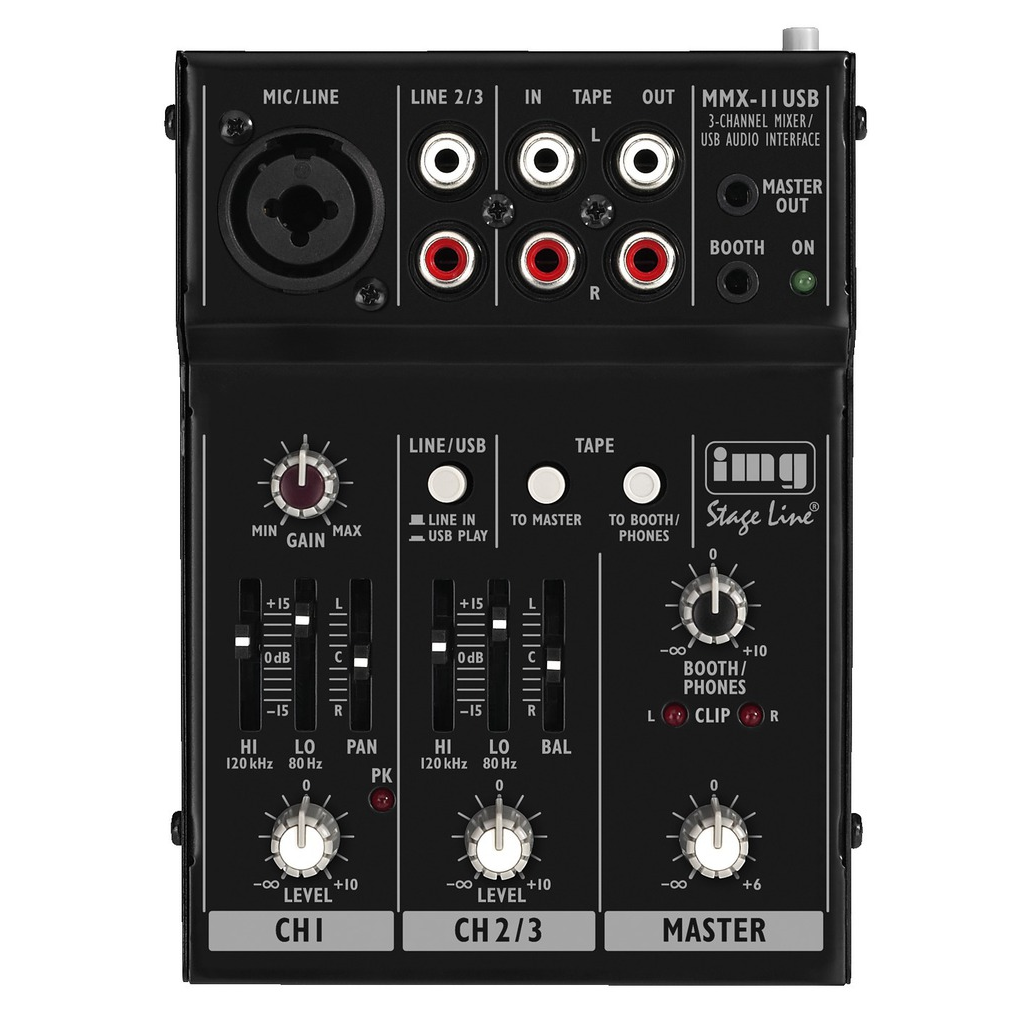

2-channel miniature audio mixer,
with 3 inputs and USB interface.
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
- 1 mono input channel with gain control, 2-way equalizer and pan pot, peak LED
- 1 stereo input channel with level control, 2-way equalizer and balance control
- Tape record/play connections
- 1 x 3.5 mm stereo output (master)
- Adjustable headphone output
- +20 V phantom power, permanent
- Clip LED
- Robust metal housing of compact size
| TECHNICAL DATA: | |
|
Mic |
0.5 mV |
|
Line |
2Â mV (channel 1) 150Â mV (channel 2) |
|
Tape |
420 mV |
|
Master, stereo L/R |
6 V max. |
|
Monitor |
6 V max. (headphones) |
| Frequency range | 20-20,000Â Hz |
| THD | <Â 0.05 % |
| S/N ratio | 81 dB, weighted |
|
Bass |
±15 dB/80 Hz |
|
Treble |
±15 dB/12 kHz |
| Phantom power | +20 V |
| Power supply | via USB interface or via suppl. PSU |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 102x45x140 mm |
| Weight | 430Â g |
| Inputs | 1 x combo (XLR/6.3Â mm jack, mic/line) 1 x RCA L/R, line in 1 x RCA L/R, tape in |
| Outputs | 1 x 3.5Â mm jack, main out 1 x 3.5Â mm jack, monitor 1 x RCA L/R, tape out |
