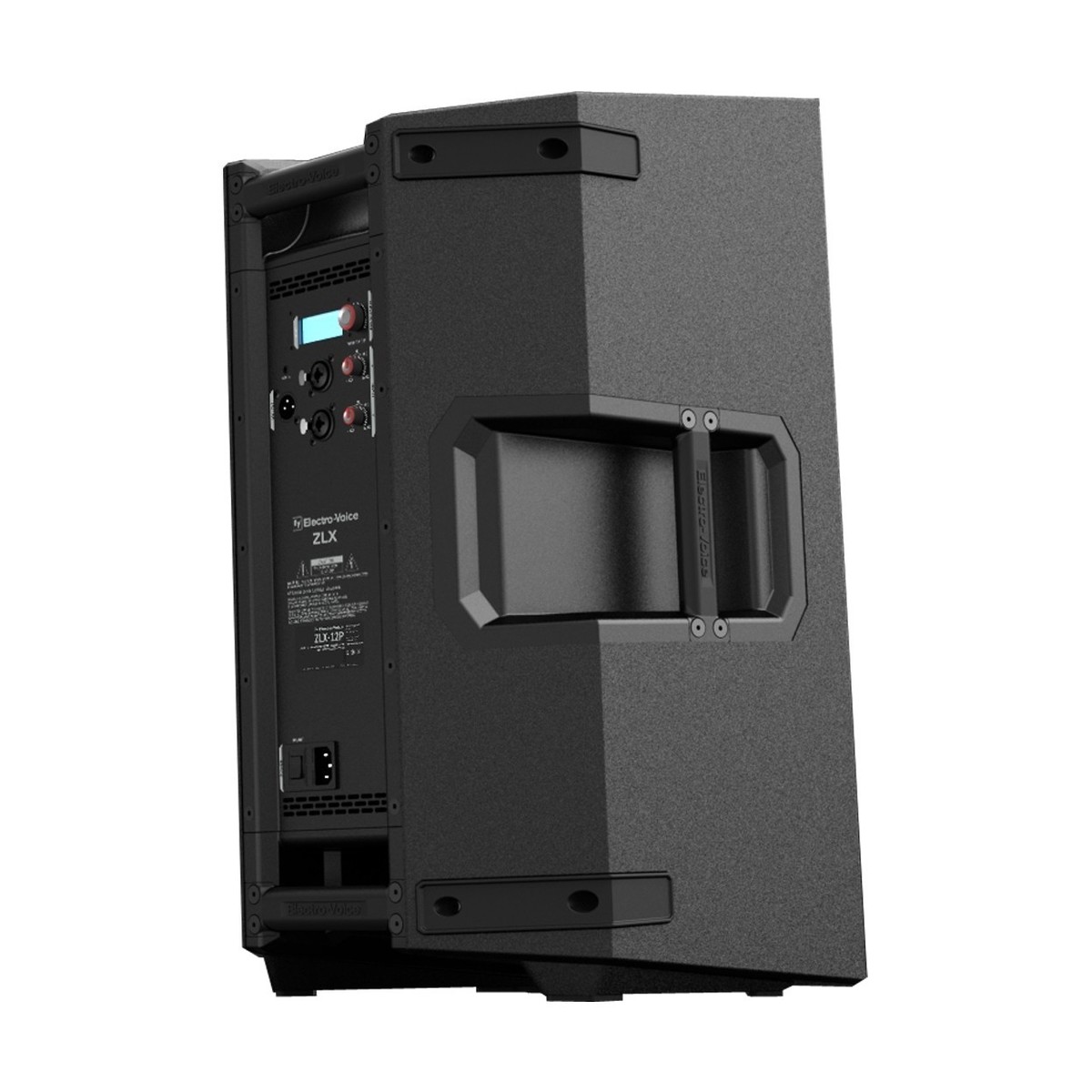

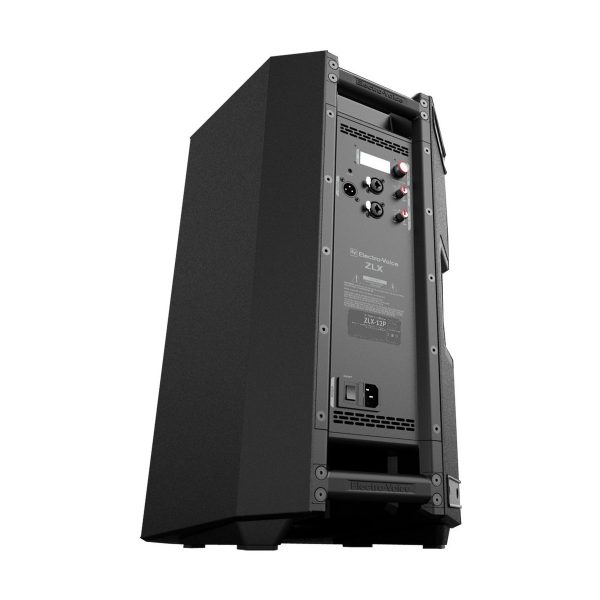

12″ powered loudspeaker
- 1000 W (Class D); 126 dB max SPL; 50 Hz – 20 kHz
- 12” woofer and 1.5” high-frequency titanium compression driver
- 34.3 lbs(15.6 kg)
The compact, lightweight ZLX-12P was designed to give you power and performance beyond the scope of other small-format loudspeakers, making it a standout choice for smaller-venue sound reinforcement or stage-monitoring. Pound for pound, no other similarly sized composite box comes close.
SPECIFICATIONS
| Frequency Response | 65 Hz – 18 kHz1 |
| Frequency Range | 50 Hz – 20 kHz1 |
| Maximum SPL | 126 dB |
| Coverage (Hort. x Vert.) | 90° x 60° |
| Power Rating | 1000 Watts |
| LF Transducer | EVS-12K, 300 mm (12 in) Woofer |
| HF Transducer | DH-1K |
| Connectors | (2) XLR/TRS Combo Jack, (1) 3.5 mm Input, and (1) XLR link Output |
| Enclosure | Polypropylene |
| Grille | 18 Gauge Steel with Black Powder Coat |
| Dimensions (H x W x D) | 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in) |
| Net Weight | 15.6 kg (34.3 lbs) |
| Shipping Weight | 19.0 kg (41.8 lbs) |
