LD Systems STINGER 10 A G3

529.00

  • Active 10″ 2-way bass-reflex PA speaker
  • 127 dB max. SPL and 300-watt RMS performance with a highly-efficient digital amplifier
  • Perfect all-rounder for full-range, satellite and monitor applications
  • Practical presets for fast and user-specific frequency tuning
  • Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide

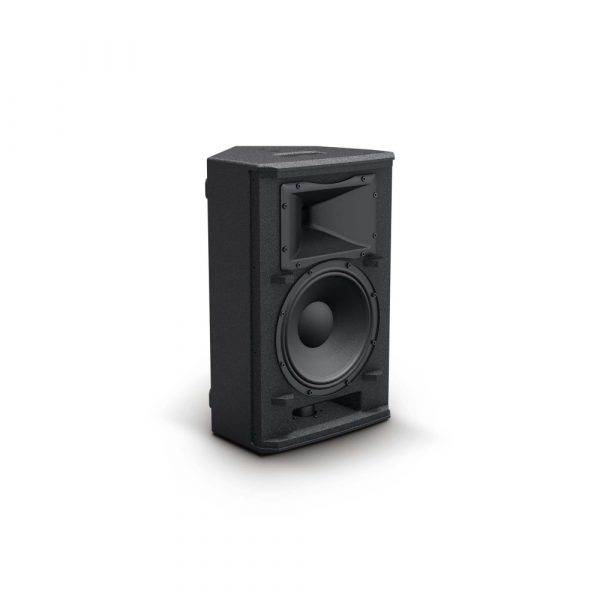

  • 10″ custom woofer and BMS tweeter driver
  • Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology

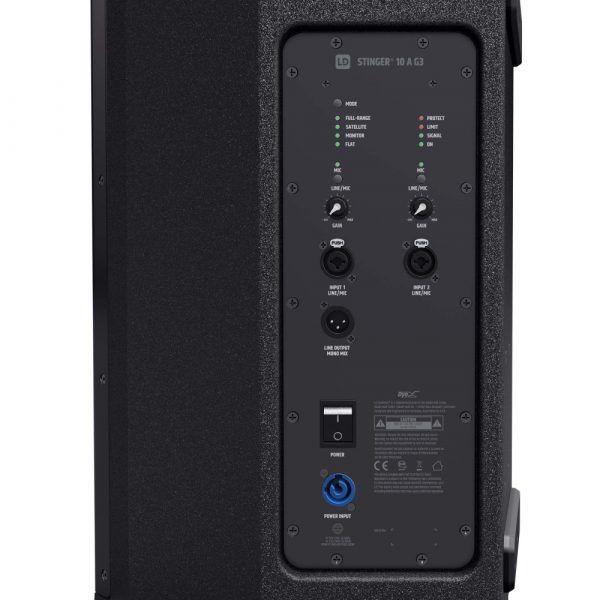

  • 2 line/mic input channels with individual gain controllers plus mono mix output
  • 12 mm birch plywood housing with ultra-robust polyurea coating and M10 rigging points
  • Shock-resistant front grille for optimal protection of the speaker.
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle
  • Extensive and smart accessories for installation and transport

Only 2 left in stock

Active 10″ 2-way bass-reflex PA Loudspeaker

This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The Stinger® 10 A G3 is powered by a highly efficient Class-D amplifier with a powerful 300-watt continuous output. The specially developed 10″ woofer and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. LD Systems’ proprietary DynX® DSP technology means that the Stinger® 10 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The Stinger® 10 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.

Specifications

PA loudspeaker Type
active
Low/mid driver dimensions
10 “
Woofer size
254 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
2 “
Woofer voice coil (mm)
50.8 mm
Horn
BEM optimized CD Horn
HF driver dimensions
1 “
HF driver size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
BMS
Class D
Dispersion (H x V)
90 x 50 °
RMS
300 W
Peak power
600 W
Frequency response
65 – 20000 Hz
Max. SPL (peak)
127 dB
Protection circuits
Multiband limiter, over voltage, over-current, thermal overload
Input sensitivity
-9 dBu
Controls
2 x gain, 2 x Mic/Line
Indicators
Limit, Mic, Mode, On, Protect (protection circuit engaged), Signal
Line inputs
2
Line input connectors
6.3 mm jack, XLR
Line outputs
1
Line output connectors
XLR
Operating voltage
100 – 120 V / 50 – 60 Hz or 200 – 240 V / 50 – 60 Hz (automatic switching), Switching power supply
Operating Temperature
0 – 40 °C
Relative Humidity
< 80% (non-condensing)
Cabinet material
12 mm Plywood
Cabinet surface
Polyurea
Cabinet construction
Bass Reflex
Monitor angle
54 °
Width
325 mm
Height
527 mm
Depth
318 mm
Weight
12,7 kg
