Yamaha DBR15 15″ Active PA Speaker

679.00

  • Powerful performance with 1000W of Class-D power that can produce SPLs up to 132dB
  • Custom-designed transducers deliver crystal clear sound with outstanding dynamics
  • State-of-the-art DSP and technologies from Yamaha’s professional DSR and DXS series
  • Intuitive 2-channel mixer with versatile connectivity for hooking up a variety of gear
  • Rugged and reliable with a compact and lightweight design for excellent portability

Only 3 left in stock

The Yamaha DBR15 15” Active PA Speaker has been built to give you the sound you’re looking for. Utilising Yamaha’s legendary state-of-the-art DSP and technologies from their professional DSR and DXR series, Yamaha have created a compact powerhouse that packs a serious punch.

The DBR15’s highly efficient amplifier is capable of producing 1000W of Class-D power, driving a custom-designed high-output 15” woofer and precision 1.4” compression driver. With the potential to deliver a thunderous SPL of up to 132dB, crystal clear sound with phenomenal definition and detail will fill your venue for a show your audience will never forget. Plus, with versatile connectivity and precise stage monitoring capabilities, the DBR15 is as flexible as it is powerful.

Powerful

Efficient, lightweight, and incredibly versatile. The Yamaha DBR15 boasts a high-performance Class-D amplifier that can deliver up to 1000-watts of thunderous power. Combined custom-designed transducers, including a 15” high-output woofer and precise 1.4” compression driver, the DBR15 is capable of pumping out a hefty maximum SPL of 132dB. Perfect for filling your room with crystal clear sound with outstanding dynamic characteristics. With state-of-the-art DSP and technologies from Yamaha’s professional DSR and DXR series, you have pure high-resolution sound that is suitable for any output level.

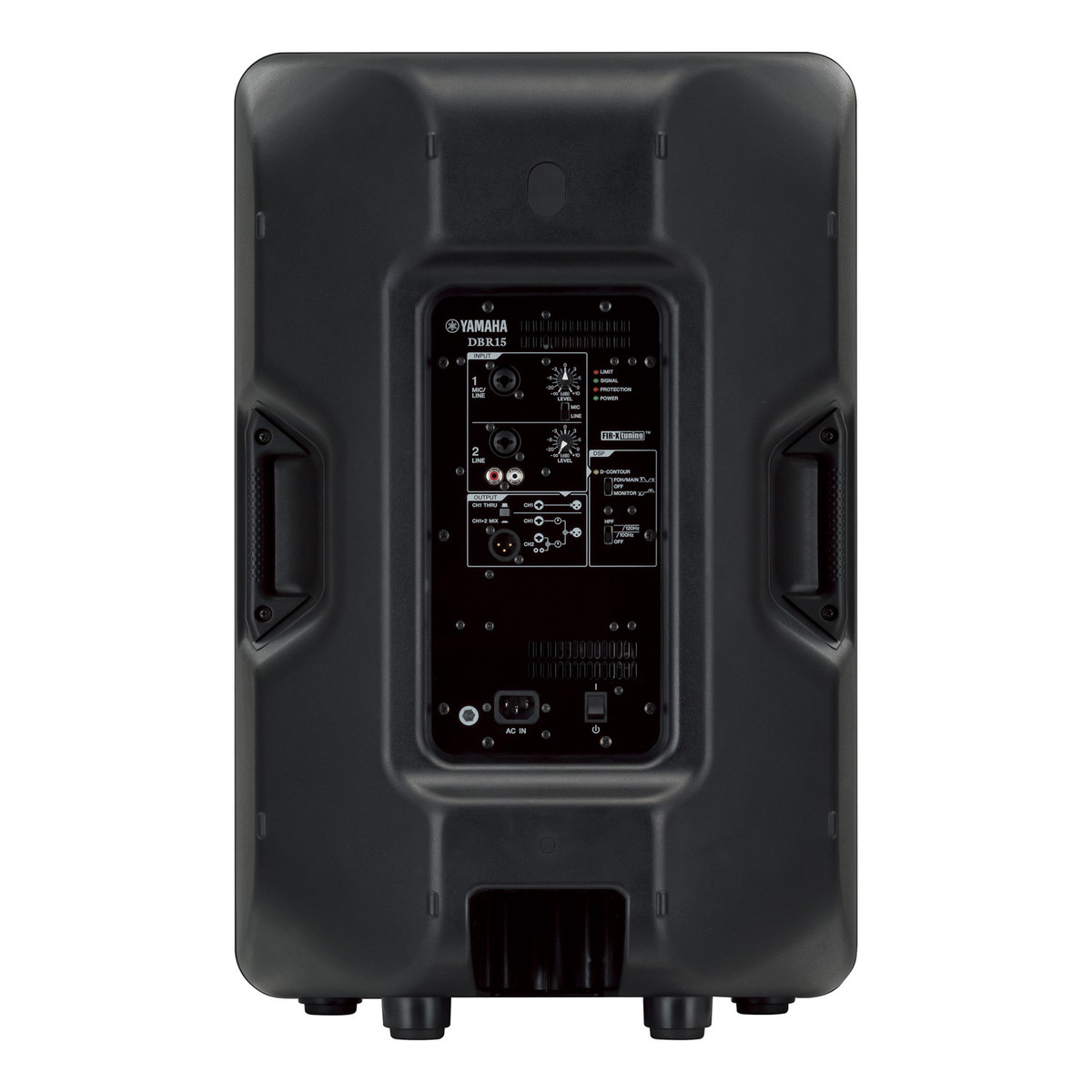

You can utilise the DBR15’s clear, defined, and precise sonic signature to reproduce sound from a diverse range of equipment. This active loudspeaker features a 2-channel mixer with flexible connectivity options, allowing you to hook up mic and line-level input signals through the XLR-1/4” combo jacks, and even CD players or other stereo line-level sources through CH2’s RCA connectors. The DBR15 is an exceptional choice when it comes to versatility, making it ideal for a huge variety of situations.

Portable

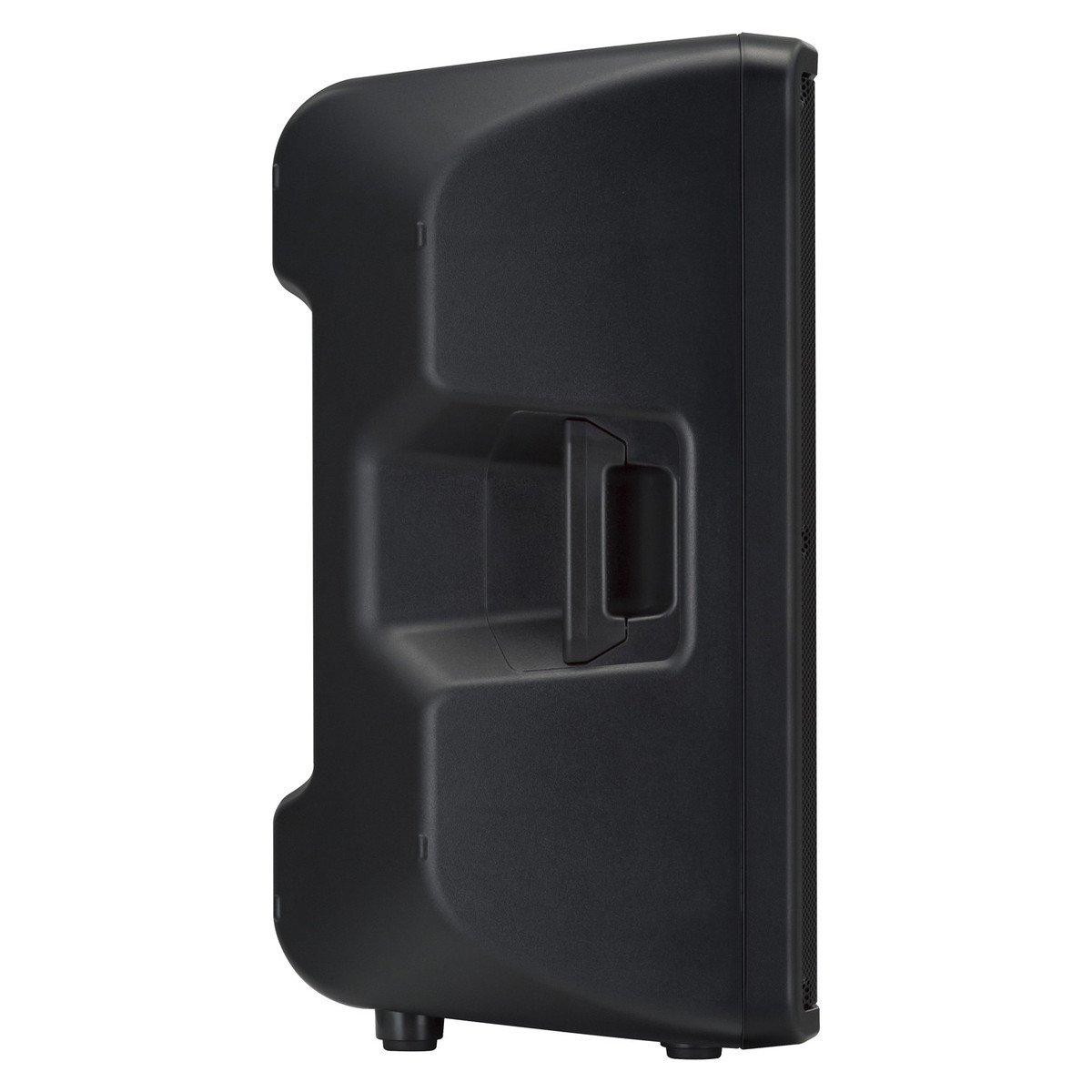

It’s never a fun task having to haul a PA system around. Whether it’s to and from the gig, or even just changing positions when you’re there. That’s why Yamaha’s DBR series has been built with portability in mind. With compact, lightweight, and ultra-rugged plastic cabinets, DBR loudspeakers are a breeze to carry and move, with newly designed ergonomic handles that make transport easy.

The DBR15 also utilizes an intelligent enclosure design. With an optimised 50° symmetrical wedge angle, you can use your loudspeaker as a powerful floor monitor. You can use the phenomenal sound of your DBR active speaker to keep you in the loop with regards to your performance. And with M8 rigging points, suspending your DBR15 is easy, making it ideal for more permanent installations.

Proven

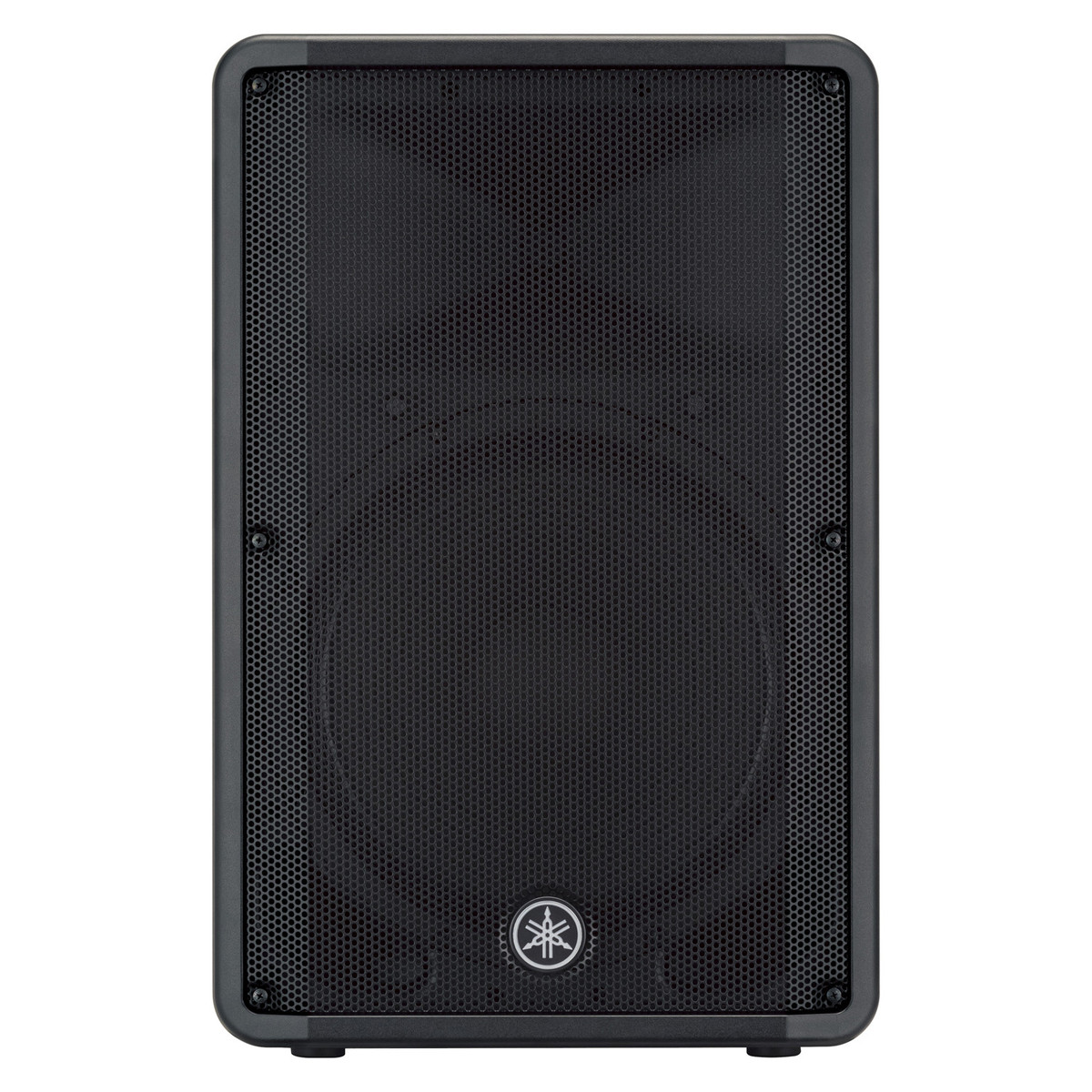

Yamaha are renowned for their quality and performance. The DBR15 is no different. Whether it’s for portable front-of-house use, stage monitoring, or rigged applications, you can enjoy the phenomenal sound of your DBR loudspeakers for years to come thanks to their outstanding build quality. The robust plastic cabinet has been meticulously designed to keep the precious internal components safe whilst simultaneously delivering incredible sound quality. And with a rugged metal grille, the DBR15’s custom-designed transducers are safe from knocks and bangs at all times.

Features

  • Highly efficient 1000W lightweight Class-D amplifier
  • High-performance design capable of producing an SPL of up to 132dB
  • Custom-designed high-output 15” woofer for defined, powerful bass
  • 1.4” precision compression driver delivers accurate mids and highs
  • Remarkable clarity and dynamic characteristics
  • Intuitive integrated 2-channel mixer with versatile connectivity
  • Connect a wide variety of equipment and devices with ease
  • Select between different channel output options on the fly
  • Compact and durable lightweight plastic cabinet with metal grille
  • Outstanding portability with newly designed ergonomic handles
  • Optimised 50° wedge angle for mirror-mode floor monitoring use
  • Monitoring can be configured in either symmetrical or stereo sound field setups
  • Equipped with M8 rigging points for hassle-free installation
  • Please note: The DBR15 is not supplied with brackets or eyebolts

Specifications

  • System Type: 2-way, bi-amp powered speaker, bass-reflex type
  • LF Driver: 15” cone, 2.5” voice coil, Ferrite Magnet
  • HF Driver: 1.4” compression driver, 1” throat, Ferrite Magnet
  • Coverage Angle: 90° x 60° constant directivity horn (H x V)
  • Frequency Range: 50Hz – 20kHz (-10dB)
  • Maximum SPL: 132dB SPL (1m, on axis)
  • Output Power:
    • Dynamic: 1000W (LF: 800W, HF: 200W)
    • Continuous: 465W (LF: 400W, HF: 65W)
  • Crossover Type: FIR-X Tuning™ (Linear phase FIR filter)
  • Crossover Frequency: 2.1kHz
  • Processing: D-CONTOUR
    • FOH/MAIN
    • MONITOR
    • OFF
  • Controls:
    • Level (x 2)
    • Line / Mic
    • HPF
    • D-CONTOUR
    • THRU/MIX
    • Power
  • Input Connectors:
    • Input 1: Combo x 1
    • Input 2: Combo x 1, RCA x 2 (unbalanced)
  • Output Connectors: XLR3-32 x 1 (CH1 Parallel Through or CH1 + CH2 Mix)
  • Input Impedance:
    • Input 1: 3 k Ohms (XLR, TRS)
    • Input 2: 10 k Ohms (XLR, TRS, RCA)
  • Input Sensitivity: Level – Maximum
    • Input 1 – Line: 0dBu
    • Input 1 – Mic: -32dBu
    • Input 2: 0dBu
  • Input Sensitivity: Level – Centre
    • Input 1 – Line: +10dBu
    • Input 1 – Mic: -22dBu
    • Input 2: +10dBu
  • Maximum Input Level:
    • Input 1 – Line: +24dBu
    • Input 1 – Mic: -8dBu
    • Input 2: +24dBu
  • Floor Monitor Angle: 50° Symmetrical
  • Cabinet:
    • Material: Plastic
    • Finish: Black
    • Pole Socket: 35mm (bottom x 1)
    • Handle: Side x 2
    • Rigging Points: Bottom x 2, Rear x 1 (fits M8 x 15mm eyebolts)
  • Cooling: Fan cooling, 4 speeds
  • Power Requirements: 220-240V, 50Hz/60Hz
  • 1/8 Power Consumption: 74W
  • Dimensions: 455mm x 700mm x 378mm / 17.9” x 27.6” x 14.9” (W x H x D) (with rubber feet)
  • Weight: 19.3kg / 42.6lbs
