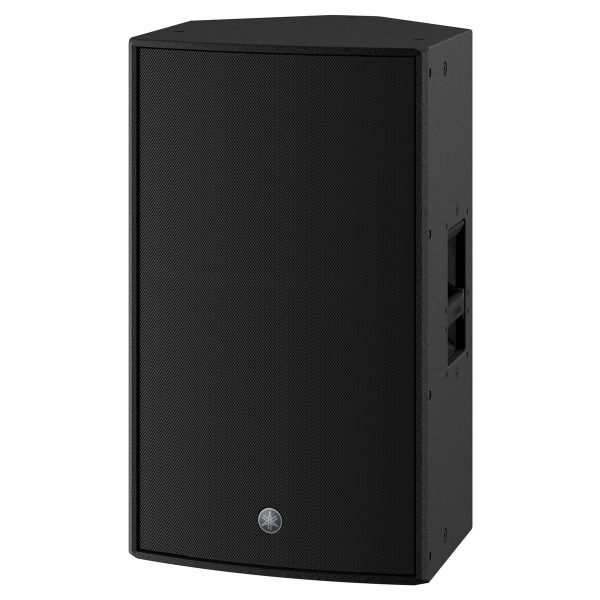

Yamaha DZR15-D Dante 15″ Active PA Speaker

1,749.00

Staggering power, stunning clarity. The Yamaha DZR15-D Dante 15” Active PA Speaker features integrated Dante connectivity for smart integration with Yamaha digital mixing systems. The Yamaha DZR15-D features a two-way design comprised of a 15-inch low frequency driver and a 2-inch high-frequency driver. It delivers 2000W of power, provided by the integrated Class-D amplifier.

The DZR series is Yamaha’s first smart range of professional powered speakers, featuring 96kHZ DSP processing as well as advanced FIR-X tuning and 2-channel inputs for connecting mics and more. An onboard LCD screen, provides all the information you need on your settings, levels and more. The DZR15-D also features a rotatable, constant directivity horn for flexible mounting capabilities.

Out of stock

Integrated Dante Connectivity

Intelligently powerful performance. What sets the Yamaha DZR15-D Dante 15” Active PA Speaker apart from previous Yamaha loudspeakers is the innovative fully-integrated smart design. This provides optimal flexibility when it comes to live applications, allowing you to directly communicate with your mixing console, creating a smart system. The Dante I/O features a 2in/2out configuration as well as SRC (Sample Rate Conversion) allowing 48kHz compatibility. This allows you to quickly and easily patch your Yamaha CL/QL digital mixing consoles from the I/O device display for versatile configurations. The LF transducer in the speaker itself features large 3-inch voice coils in cast aluminium frames and a lightweight neodymium magnet for high power handling. It provides a tightly controlled sound, resulting in distortion-free performance. The HF transducer includes a 2-inch voice coil and a 1-inch throat compression driver with a titanium diaphragm for sparkling high-end performance. These features combine to deliver unparalleled power and clarity.

Advanced FIR-X Tuning & 96kHz DSP Processors

One of the most unique features of the DZR loudspeaker range is the integrated 96kHZ DSP processors, helping to provide the high-power output the speaker delivers. The result is high-definition audio performance with super-low latency. The FIR-X Advanced Tuning technology uses linear phase FIR filters for the crossover network. The FIR filters allow you to achieve a smooth frequency response, resulting in exceptional clarity and sound imaging without phase distortion. EQ filtering capabilities are also included for fine-tuning adjustments, with best-in-class SPL without signal degradation. The rear of the loudspeaker features an onboard LCD screen, providing visual monitoring and navigation of your various settings. The accompanying rotary-style control allows you to change settings such as DSP functions and store and recall up to 8 user or dedicated factory presets.

D-CONTOUR Multi-Band Compressor

Another innovative feature of the DZR speaker is the built-in D-CONTOUR multi-band compressor, ensuring a consistent and clear sound at any volume level. The D-CONTOUR compressor works by measuring the output of the frequency bands, then applying the optimum EQ adjustment settings, ensuring clear and clean sound even at high output levels. D-CONTOUR provides you with two settings: FOH/MAIN or MONITOR mode, allowing for detailed tuning of your PA system. The FOH/MAIN mode helps to raise lower frequencies and compensate for low-end that can be missing when speakers are used on a monitor stand or suspended. The MONTIOR mode is designed for floor monitoring applications, optimising your frequency response to match various settings.

Versatile Design & Connectivity

The Yamaha DZR Loudspeaker features a rotatable horn that allows for both vertical or horizontal mounting capabilities. This allows the speaker to adapt to different venue settings and acoustic dimensions. The constant directivity horns provides smooth and level coverage across your intended area, minimising roll-off for optimised audio performance. The speaker cabinet is constructed from premium-grade 15mm thick plywood, coated in an ultra-durable, military-grade Polyuera coating. This ensures maximum protection for your internal components while in use and on the move. The enclosure also includes butterfly joints, reducing cabinet vibration for improved audio. The rear of the loudspeaker features 2-channel inputs comprised of XLR/TRS combination connections for microphones and a variety of other sources. It also includes an integrated USB connection for storing settings and transferring data.

Features

  • 15-inch, two-way active loudspeaker
  • Equipped with Dante connectivity for smart integration with Yamaha digital mixing systems
  • 15-inch low-frequency driver with large 3-inch voice coils for powerful bass response
  • 2-inch high-frequency driver comprised of 2-inch voice coil and 1-inch throat compression driver
  • 2000W Class-D Amplification
  • High SPL of 139dB
  • Ideal for portable and commercial applications
  • Advanced FIR-X tuning – provides smooth frequency response for stunning clarity and sound imaging without phase distortion
  • Powerful 96kHz DSP Processors for high-resolution sound and ultra-low latency performance
  • D-CONTOUR multi-band compressor provides consistent and clear sound

Specifications

  • Speaker Type: 2-Way, Bass-Reflex
  • Low-Frequency Driver: 15” Woofer with 3” Voice Coil
  • High-Frequency Driver: 1” Compression Tweeter, 2” Voice Coil
  • Frequency Response: 34Hz – 20kHz
  • Sound Pressure Level: 139dB
  • Amplifier Type: Class-D
  • Amplifier Power: 1300W RMS / 2000W Peak
    • LF: 920W RMS / 1000W Peak
    • HF: 380W RMS / 1000W Peak
  • Coverage: 90° x 50°, Rotatable (H x V)
  • Crossover Frequency: 1.7kHz (FIR-X)
  • Input Connectors: 2 x XLR/TRS Combo
  • Dante I/O: 2 x etherCON CAT5e (2 In/2 Out)
  • Thru/Output Connectors: 2 x XLR
  • Sample Frequency Rate: 96kHz and FIR Filter
  • Handles: 2 x Aluminium, Die-Cast
  • Floor Monitor Angle: 50°, Symmetrical
  • Pole Socket: 2 x 35mm (0° or -7°)
  • Rigging Points: 12 x M10
  • Dimensions: 450mm x 761mm x 460mm (W x H x D)
  • Weight: 25.20kg
