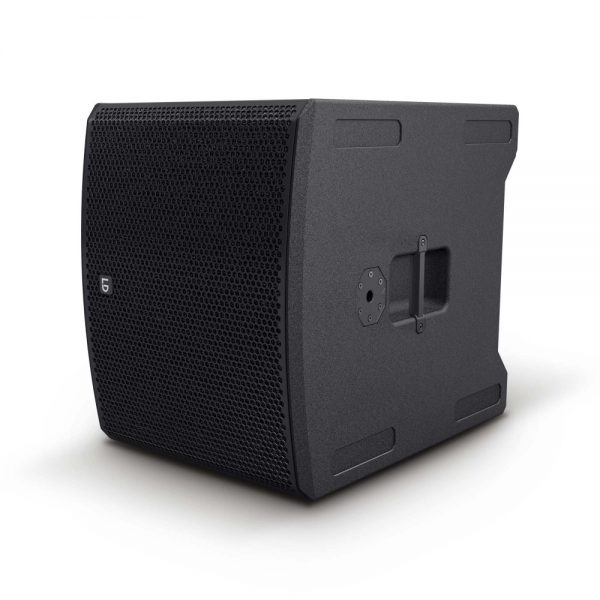

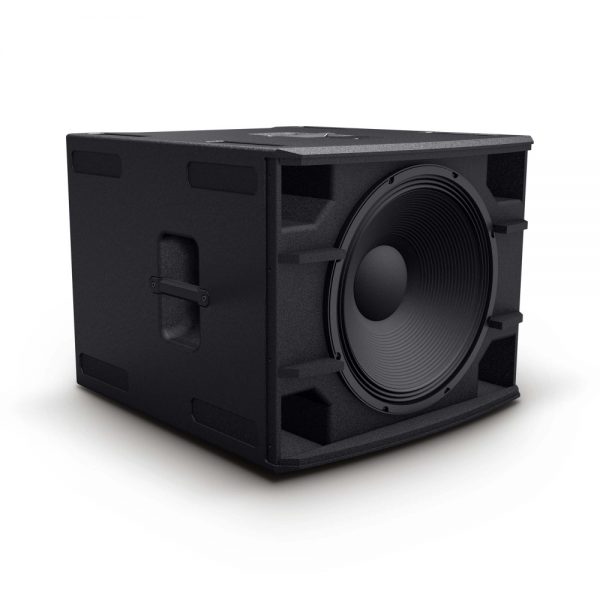

LD Systems STINGER SUB 18 A G3 Active 18″ bass-reflex PA subwoofer

1,049.00

  • Active 18” bass reflex PA subwoofer
  • High-efficiency 800 watts RMS digital power stage and 135 dB max. SPL
  • 18” custom design woofer for extended low end down to 35 Hz
  • DynX® DSP technology for distortion-free performance
  • 80, 100 and 120 Hz low pass presets
  • Cardioid subwoofer array presets
  • Horizontal or vertical placement
  • 18 mm birch ply cabinet with ultra rugged polyurea finish
  • Ergonomic handles and stacking recesses for easy transport and setup
  • Shock-resistant front grill provides maximum speaker protection
  • Insert for M20 threaded poles
  • Smart transport accessories

Available on back-order

Description

Engineered for rock-solid reliability day in, day out this active subwoofer is a truly professional performer. With built-in presets for quick system integration and a variety of cardioid array configurations it is completely user-friendly. The STINGER® SUB 18 A G3 is powered by high efficiency Class D amplification with a giant 800 watts RMS output. It drives a custom designed 18” woofer delivering a huge bottom end with terrific punch and excellent definition.

The STINGER® SUB 18 A G3 incorporates LD Systems’ proprietary DynX® DSP technology to ensure top-level performance and pristine, distortion-free bass reproduction at all times. Designed to be a real workhorse throughout, the well-braced bass reflex enclosure is constructed for horizontal and vertical orientation. It is made of rigid 18 mm birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, M20 threaded pole insert, stacking recesses and ergonomic handles the STINGER® 18 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.

Specifications

General
Product type:  PA subwoofer
Type:  active
Low/mid driver dimensions:  18 “
Woofer size:  457.2 mm
Woofer magnet:  Ferrite
Woofer brand:  Custom-made
Woofer voice coil:  4 “
Woofer voice coil (mm):  101.6 mm
Amplifier:  Class D
System Power (RMS):  800 W
Peak power:  1600 W
Frequency response:  35 – Low-Pass Hz
Max. SPL (peak):  135 dB
Protection circuits:  DC, limiter, over voltage, short circuit
Input impedance:  30000 Ohm(s)
Input sensitivity:  0.3 V
Controls:  Main level, Mode
Indicators:  Limit, Mode, On, Protect (protection circuit engaged), Signal
Line inputs:  2
Line input connectors:  6.3 mm jack, XLR
Line outputs:  2
Line output connectors:  XLR
Operating voltage:  100 – 120 V / 50 – 60 Hz or 200 – 240 V / 50 – 60 Hz (automatic switching), SMPS
Power consumption (max.):  600 W
Operating Temperature:  0 – 40 °C
Relative Humidity:  < 80% (non-condensing)
Cabinet material:  18 mm Plywood
Cabinet surface:  Polyurea
Cabinet construction:  Bass Reflex
Width:  677 mm
Height:  547 mm
Depth:  740 mm
Weight:  42,6 kg
