All-in-one
The built-in mixer allows easy connection for various instruments and microphones. Two XLR 1/4” phantom-powered inputs plus 1/4” and 1/8” aux inputs make this easy and added Bluetooth® streaming capability is the icing on the cake. Having all these features in a single unit makes live setups infinitely easier, it also means one less thing to carry since the mixer is built-in. Breaking down into three easy-to-carry modular pieces, assembly and disassembly are straightforward. On top of this, the L1 Mix app lets you control the mixer from your phone once assembled meaning once set up, you can practically leave the L1 Pro8 alone until it’s finished being used. Quite possibly, the most versatile live sound solution on the market.
Ultimate clarity

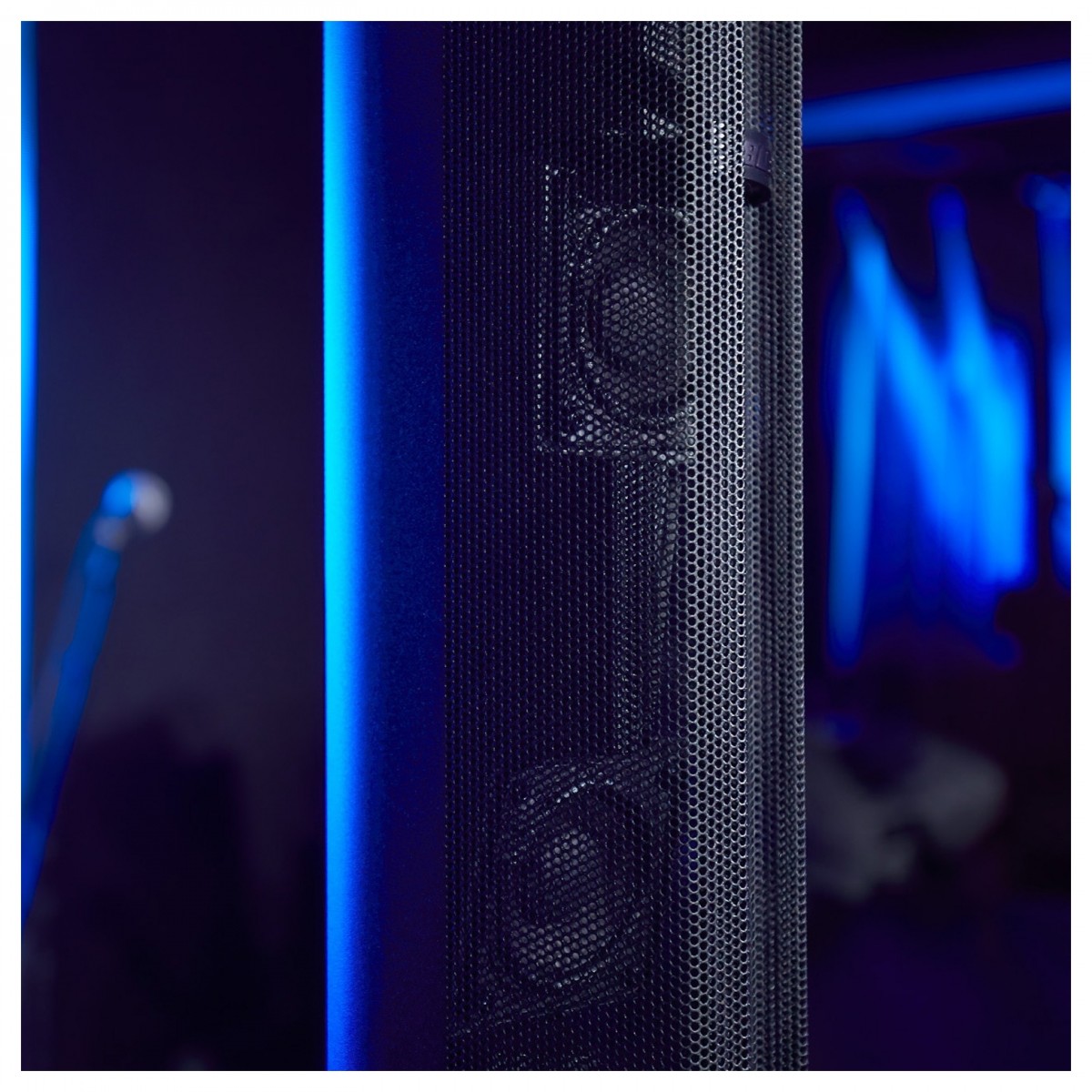

The L1 Pro8 ensures superb clarity at all times thanks to its C-shape extended frequency line array featuring eight articulated 2” neodymium drivers. Bose’s ToneMatch library of custom EQ presets give you plenty of instant options if you’re in a rush, letting you optimise quickly and effectively. The security of knowing your sound is totally uncompromised and supported over the full 180-degree sweep allows you to focus simply on performing
Bass without the bulk
The integrated subwoofer offers all the performance of a 12” woofer, just in a far slimmer 7”x 13” driver. This gives you the full bass range of a sub at a size that makes carrying and transporting a lot easier. Now, instead of having to choose between bass response or boot space, the L1 Pro8 lets you have both.
Generous coverage
180 degree horizontal coverage with wide vertical dispersion means there’s no longer a bad seat in the house. Whether standing or seated, even off to the extreme sides, the L1 Pro8 guarantees superior sound coverage in venues of all shapes and sizes meaning you no longer have to worry about speaker placement because the L1 Pro8 does it for you.
Features
- Powerful and portable – the most advanced Bose L1 line array ever
- Unparalleled clarity from the C-shape line array with eight 2″ articulated neodymium drivers
- Focussed sound projection with high SPLs thanks to 180-degree horizontal coverage
- Integrated 7″ x 13″ high-excursion neodymium RaceTrack woofer delivers performance similar to a conventional 12″ woofer with a smaller footprint
- Consistent sound, even when your audience is off to the side in larger venues
- Dial your sound with the built in mixer
- Connect instruments, microphones and move via combo XLR/1/4”, ¼”, 1/8” aux, and phantom powered inputs
- Stream your favourite music wirelessly with Bluetooth connectivity
- Sculpt your tone with powerful volume, tone, and reverb knobs per channel
- Get the best sound in seconds with EQ presets for live music, recording, and more
- Add even more audio sources via the dedicated ToneMatch port
- Powerful wireless mixing straight from your smartphone with the L1 Mix app
- Highly portable thanks to a collapsible, modular design
Specifications
- Model Name: L1 Pro8
- Product Code: 840919-2100
- Frequency Response: 45Hz – 16kHz, -3dB
- Frequency Range: 33Hz – 18kHz, -10dB
- Vertical Beam Type: C-shape
- Vertical Coverage Pattern: 40°
- Horizontal Coverage Pattern: 180°
- Maximum SPL: 112dB @ 1m Continuous / 118dB @ 1m Peak
- Crossover: 200Hz
- Low Frequency Transducers: 1 x RaceTrack 7″ x 13″ Woofer
- Low Frequency Voice Coil: 2″
- High/Mid Frequency Transducers: 8 x Articulated 2″ Drivers
- High/Mid Frequency Voice Coil: 3/4″
- Driver Protection: Dynanmic Limiting
- Amplifier Type: Two-Channel Class-D
- Amplifier Power:
- Low Frequency: 240W
- High/Mid Frequency: 60W
- Onboard Mixer: Three Channel
- Input Connectors: XLR / TRS Combo
- Channel Controls: 3 x Digital Rotary Encoders
- Phantom Power: Channel 1 & 2
- Bluetooth: Enabled
- Bluetooth Type: AAC or SBC for Audio / LE for System Control
- Enclosure Material:
- Power Stand: High-Impact Polypropylene
- Extension & Array: High-Impact ABS
- Dimensions: 2000mm x 317mm x 456mm / 78.7″ x 12.5″ x 17.9″ (H x W x D)
- Weight: 17.4kg / 38.2lbs
