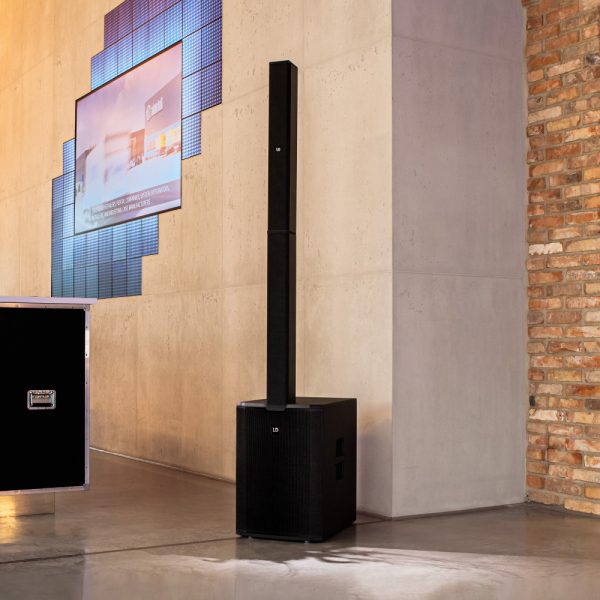

LD Systems MAUI® 44 G2 Cardioid Powered Column Loudspeaker

2,599.00

  • Professional column PA system with 1500 W RMS and 132 dB max. SPL
  • Cardioid column for controlled low- and mid-range frequency dispersion and cardioid subwoofer application (with additional subwoofer)
  • TrueWireless™ stereo technology for wireless stereo pairing of two column systems
  • aptX™ coding and advanced audio coding (AAC) for high-resolution Bluetooth® streaming
  • BEM-optimized high-frequency waveguide for uniform dispersion pattern, phase plug for coherent mid-range wavefront and flow-optimised bass-reflex ports
  • DynX® DSP technology for distortion-free sound at maximum volume
  • Automatic setup detection
  • Fast and simple assembly without stands or cables
  • Rugged subwoofer housing made out of polyurea-coated birch plywood and lightweight, powder-coated aluminium column

Only 2 left in stock

Column systems have literally revolutionized numerous application areas for bands and DJs. Never has it been easier to provide a consistent sound solution from a simple, inconspicuous PA system – even in large spaces. The MAUI® 44 G2 is now the practical, powerful solution for the professional segment.

The LD Systems MAUI® 44 G2 is the flagship of the MAUI series column PAs: it offers an enormous 1,500 watts of total output (RMS) with a frequency response of 37 Hz to 20 kHz and a sound-level pressure of 132 dB (peak). With its outstanding sound properties and wide-ranging functions, this compact column PA is perfect for rental companies, musicians, small clubs, street festivals and permanent installations. The cardioid properties of the column elements and the possibility of creating a cardioid bass with an additional subwoofer further highlights the professional nature of this sound system. The column achieves a rear attenuation of 18 dB, the subwoofer 15 dB. The MAUI® 44 G2 also sets the tone when the two-part column is equipped with twelve 3.5″ neodymium full-range speakers and four 1″ HF drivers with waveguide. The phase plugs on the six upper drivers improve horizontal directivity, reduce distortion and optimise the sensitivity below the crossover frequency for the tweeters. In addition, the four tweeters feature specially designed and optimised compression drivers coupled to a constant directivity waveguide to provide 120° of coverage across the width and 25° of focused vertical directivity. The curved design of the waveguide transports more energy in the high frequencies to listeners standing further away.

In the case of permanent installations or when providing sound for conferences, the TrueWireless™ stereo function makes life a whole lot easier since it enables two systems to be wirelessly connected for stereo reproduction. Bluetooth® streaming in HD quality is no problem at all thanks to aptX™ and AAC Codec, while DynX® DSP technology ensures distortion-free sound reproduction even at the very highest volumes. Total and subwoofer levels can be individually adjusted, providing a perfectly balanced sound in all situations, with a crystal-clear treble, a crisp mid-range and – thanks to the flow-optimised bass-reflex channels – a powerful bass.

Another particularly user-friendly feature of the MAUI® 44 G2 is automatic set-up recognition: if the column is removed to use the subwoofer as a slave, for example, the display automatically jumps to SLAVE and functions such as Bluetooth and the volume controls for MAIN and SUB no longer appear.

The MAUI® 44 G2 is absolutely top-class when it comes to transportation and mobile use, too: assembly is quick and simple with no need for cables or stands – special multi-pin connections are used instead. Together, the rugged subwoofer housing made of birch multiplex with polyurea coating and the light, powder-coated aluminium column weigh a total of less than 48 kg – a weight reduction of 20% as compared to the predecessor model. The optionally available transport roller board, carry bag and sub cover do a superb job in day-to-day use. In terms of inputs, the MAUI® 44 G2 offers two XLR IN connections, while two XLR outputs enable a wired stereo configuration of two systems. Meanwhile the SUB OUT can be used to hook up an additional subwoofer, and the power supply is via secure and reliable powerCon connection.

Technical data of the LD-Systems MAUI 44 G2

General

  • Color: black
  • Max. SPL (peak): 132 dB
  • Frequency response: 37 – 20000 Hz
  • Beam angle (H x V): 120 x 25 °
  • Height (total): 2256 mm
  • Weight. 47.6 kg
  • Features: Bluetooth audio streaming , DSP based signal processing , excellent dispersion characteristics , mono/stereo operation

Subwoofer

  • Size woofer: 15″
  • Size woofer: 381 mm
  • Magnet woofer: Neodymium
  • Brand Woofer: Custom Made
  • Voice coil woofer: 4″
  • Voice coil woofer: 101 mm
  • Cabinet type: Bass reflex
  • Cabinet material: 15 mm birch plywood, 18 mm birch plywood
  • Housing surface: Polyurea
  • Subwoofer dimensions (W x H x D): 434 x 634 x 637 mm
  • Subwoofer weight: 36.4 kg

Mid/Hi System

  • Size of midrange driver: 12 x 3,5″.
  • Size of midrange driver: 12 x 89 mm
  • Magnet midrange driver: neodymium
  • Brand Mittentöner: Custom Made
  • Voice coil midrange driver: 1″
  • Voice coil centre speaker: 25,4 mm
  • Size tweeter: 4 x 0,5″
  • Size tweeter: 12,7 mm
  • Magnet Tweeter: Neodymium
  • Brand Tweeter: Custom Made
  • Voice coil tweeter: 1″
  • Voice coil tweeter: 25,4 mm
  • Waveguide: CD Waveguide
  • Speaker inputs: 1
  • Speaker input terminals: Custom Made Multipin
  • Housing type Mid/Hi system: closed
  • Housing material Mid/Hi system: aluminum
  • Mid/Hi system: HD-coated aluminum, multi-layer mesh fabric
  • Width Mid/Hi system: 103 mm
  • Height Mid/Hi system: 1621 mm
  • Depth Mid/Hi system: 135 mm
  • Weight Mid/Hi system: 11.2 kg

Amplifier module (integrated in the subwoofer)

  • Amplifier: Class D
  • System power (RMS): 1500 W
  • Protection circuits: short circuit , multiband limiter , protection against direct current , protection against overheating
  • Cooling: Convection
  • Controls: Bluetooth HOLD TO LINK button , Bluetooth STEREO LINK button , Cardioid On/Off , Main Level , Power On/Off , Sub Level
  • Display elements: Bluetooth , Bluetooth STEREO LINK , Cardioid On/Off , Limit , Power , Protect (protection circuit active) , Signal , Slave Mode , Subwoofer Mode
  • Mains connection: Neutrik powerCON
  • Operating voltage: 100 V AC – 120 V AC / 50 – 60 Hz , 220 V AC – 240 V AC, 50 – 60 Hz
  • Ambient temperature: 0 – 40 °C
  • Relative humidity: <80% (non-condensing)
  • Number of line inputs: 2
  • Connectors Line inputs: XLR female
  • Number of line outputs: 2
  • Connectors Line outputs: XLR male
  • Number of loudspeaker outputs: 1
  • Connections Loudspeaker outputs: Custom Made Multipin
  • Bluetooth standard: A2DP
  • Bluetooth audio decoder: AAC , aptX , SBC

DSP Features

  • Word width AD / DA converter: 24 bit
  • Sampling frequency: 48 kHz
  • Signal-to-noise ratio: 106 dB
