LD Systems DAVE 18 G4X Compact 2.1 Powered PA System

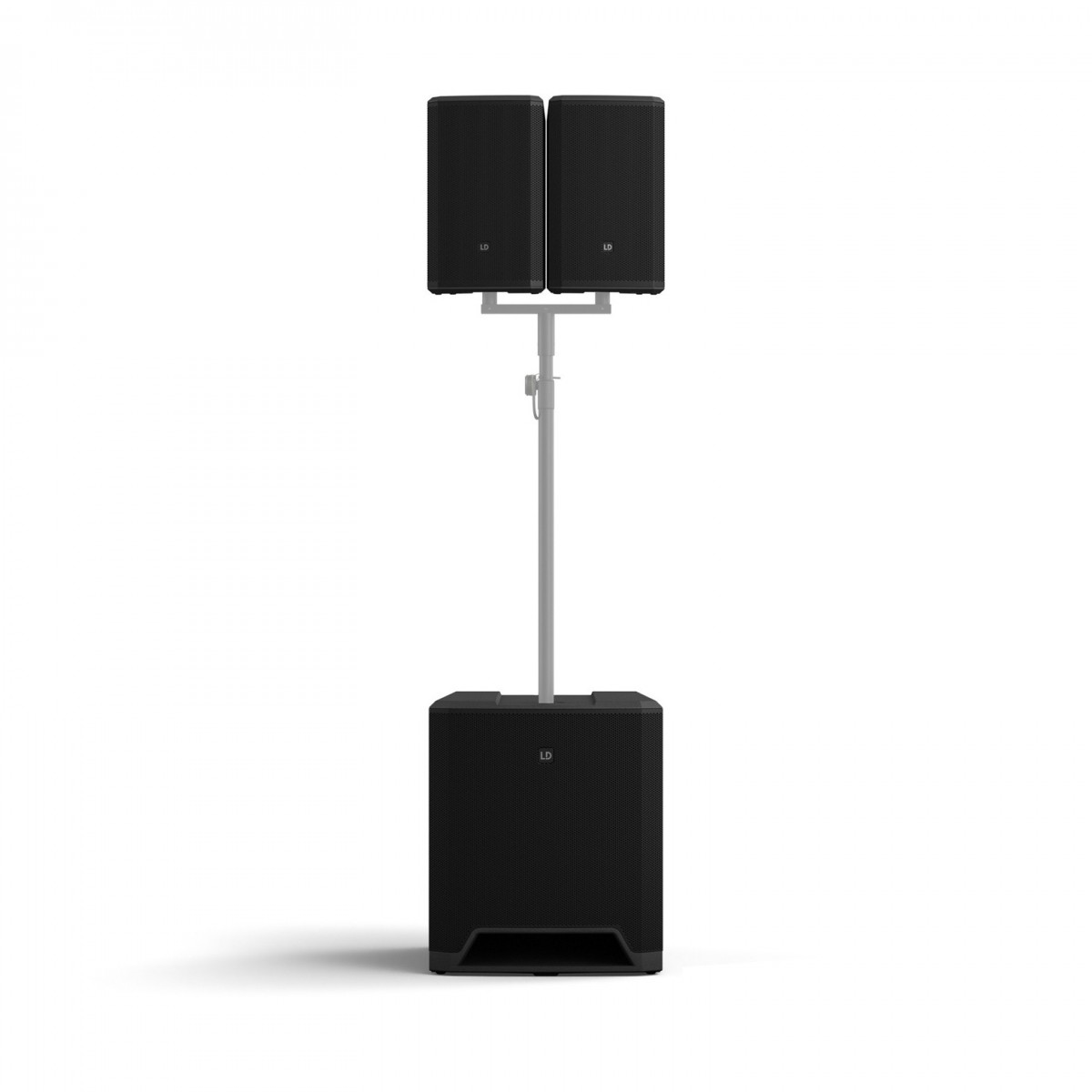

The LD Systems DAVE 18G4X is a compact powered PA system comprised of an 18″ subwoofer and two 8″ satellite speakers, delivering a 4000 W peak. It has a six-channel mixer, the first two being microphone and line inputs – both with a 2-band EQ and an adjustable reverb. Channel 3 and 4 are stereo line inputs, and channel 5 is a digital SPDIF stereo input, and channel 6 is a Bluetooth input for wireless connections. This all makes the DAVE 18 G4X a highly flexible option for any kind live sound.

Additionally the DAVE 18G4X has improved systems for excellent sound. New compression drivers and waveguides result in better dispersion, while FIR filters and state-of-the-art DSP technology ensures transparent, colourless sound. Plus, it also has better bass with a larger voice coil and a optimised bass reflex system, reducing air flow noise to a minimum. You can arrange the speakers with confidence in different configurations, with selectable mode presets to make sure the sound for these are optimised.

Features

• Comprised of an 18″ subwoofer and two 8″ satellites – total power 4000W
• Integrated 6-channel mixer with line, stereo, SPDIF and Bluetooth inputs
• First two channels have 2-band EQ and adjustable reverb
• Updated compression drivers and waveguides
• FIR filters and state-of-the-art DSP technology
• Subwoofer has larger voice coil and bass reflex system – reducing air flow noise to a minimum
• Selectable mode presets allow for different speaker configurations
• Durable polyurea coating for subwoofer and satellites

Specifications

General

• Product type: PA Complete Systems
• Type: Powered
• Colour: Black
• System output (RMS): 2000 W
• System output (Peak): 4000 W
• Max. SPL (avarage): 126 dB
• Max. SPL (peak): 134 dB
• Frequency response (-10dB): 30 – 20000 Hz
• Crossover frequency: 105 Hz
• Dispersion (H x V): 90° x 30°
• Weight: 63.2 kg

Subwoofer

• Low/mid driver dimensions: 18 “
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 4 “
• Woofer voice coil (mm): 100 mm
• Cabinet construction: Bass Reflex
• Cabinet material: 15 mm Multiplex, 18 mm Multiplex
• Cabinet surface: Polyurea
• Subwoofer width: 545 mm
• Subwoofer height: 640 mm
• Subwoofer depth: 665 mm
• Subwoofer weight: 43.8 kg
• Subwoofer features: 3 Reverb presets, 6 chanal mixer, Bluetooth, M20, Mono / Stereo Preset, SPDIF
• Carrying handles: 2

Mid/Hi System

• Midrange size: 8 “
• Midrange magnet: Ferrite
• Midrange brand: Custom-made
• Midrange voice coil: 2 ” / 50mm
• Horn: CD horn
• Tweeter dimensions: 2 x 0.5 ” / 2 x 12.7 mm
• Tweeter magnet: Neodymium
• Tweeter brand: Custom-made
• Tweeter voice coil: 1 ” / 25.4 mm
• Mid/Hi system impedance: 4 Ohm(s)
• Mid/Hi system speaker connections: 1, Speakon compatible
• Cabinet construction mid/high: Bass Reflex
• Carrying Handles Mid / Hi System: 1
• Mid/Hi system cabinet material: 12 mm Multiplex, 15 mm Multiplex
• Mid/Hi system cabinet surface: Polyurea
• Mid/Hi system width: 275 mm
• Mid/Hi system height: 470 mm
• Mid/Hi system depth: 260 mm
• Mid/Hi system weight: 9.7 kg
• Mid/Hi system features: flange, Midrange Waveguide

Amplifier module (integrated in subwoofer)

• Amplifier: Class D
• Amplifier output subwoofer (RMS): 1000 W
• Amplifier Output Mid/Hi (RMS): 2 x 500 W
• Protection circuits: limiter, overload, short circuit
• Cooling: Passive
• Operating Temperature: 0°C – 40 °°C
• Humidity Range: < 80 % ( non-condensing )
• Controls: Input type, Input volume, Low / High EQ, Main volume, Mono mode, Power, Reverb, Sub / High level
• Indicators: Limit, Power, Protect, Signal
• Power connector: IEC
• Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz
• Power consumption: 600 W
• Multi inputs: 2 x switchable (MIC, LINE, HI-Z)
• Multi input connectors: Combo – XLR
• Line inputs: 2
• Line input connectors: Combo – XLR, RCA
• Digital inputs: 2
• Digital input connectors: SPDIF
• Loudspeaker outputs: 2
• Speaker output connections: Speakon compatible
• Bluetooth Standard: A2DP
• Bluetooth Audio Decoder: SBC
