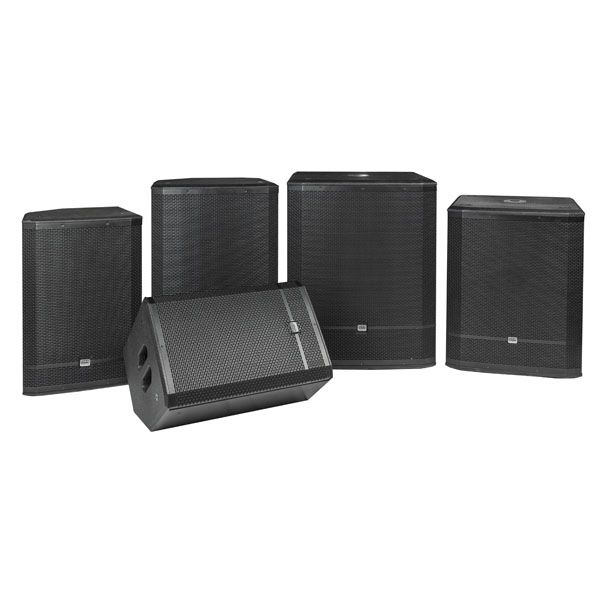

The passive speakers from DAP’s Pure-range offer powerful and road-ready solutions for various venues. You can choose between full range speakers from 10” to 15” and add high-power 15” or 18” bass-reflex subwoofers to complete the audio-picture. The full-range 2-way speakers are designed around a 12mm birchwood enclosure while the subwoofers have an 18mm birchwood construction. Each speaker is equipped with speakon connectors which ensure and strong and safe connections every time.DAP’s passive Pure-Range offers high-power passive 15″ and 18″ subwoofers to complement the 10″, 12″ and 15″ units perfectly. Add your favorite amplifiers and processing and you will be able to create a Rock-Steady sound system. If you are looking for a way to add Pure Sound to your party-place, then here’s your answer.
- 500 Watt
- Rotatable 90×60 Horn
- Lightweight: 11,8 Kg
- Scratch resistant painting
| RMS Power Input | 250 W |
|---|---|
| Peak Power Input | 500 W |
| Passive Input Connection | NL4 |
| Passive Output Connector | NL4 |
| Passive High Output Connector | N/A |
| Speaker System | 2-Way |
| Speaker Sensitivity (1w/1m) | 96 dB |
| Speaker Impedance | 8 Ω |
| Max. SPL on 1m | 124 dB |
| Frequency Respons Minimum | 55 Hz |
| Frequency Respons Maximum | 19.000 Hz |
| Frequency Respons (-6dB) Minimum | 55 Hz |
| Frequency Respons (-6dB) Maximum | 19.000 Hz |
| Frequency Respons (-10dB) Minimum | 48 Hz |
| Frequency Respons (-10dB) Maximum | 20.000 Hz |
| Woofer Diameter | 10 |
| Woofer Voice Coil | 2 |
| Woofer Magnet Type | Ferrite |
| Compression Driver Diameter | 1 |
| Compression Driver Voice Coil | 1.75 |
| Compression Driver Magnet Type | Ferrite |
| Dispersion Angle Horizontal | 90 ° |
| Dispersion Angle Vertical | 60 ° |
| Length (mm) | 324 mm |
| Height (mm) | 500 mm |
| Width (mm) | 320 mm |
| Speaker Adapter Diameter | 35mm mm |
| Weight | 11,8 kg |
| IP Rating | IP20(indoor use only) |
| Material | Wood |
| Material Thickness | 12 mm |
| Housing | Wood |
| Finish | Painted |
| Colour | Black |
| Polemount | 35 mm |
| Rotatable Horn | Yes |
| Useable as Monitor/Wedge | No |
| Speaker Grill | Steel |
| Thread | M8 |
| Speaker Handles | Top |
| Castors | N/A |
| Mounting Options | Eye bolt |
| Mounting Positions | Horizontal / Vertical |
| Rigging Options | Flying |
| Rigging Eye Thread | M8 |
| Reference Standard | CE |
| Included Cables | N/A |
| Included Accessories | User Manual |
