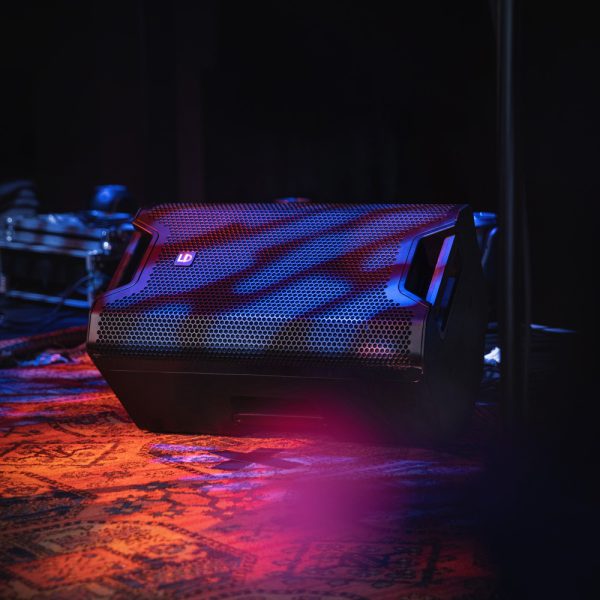

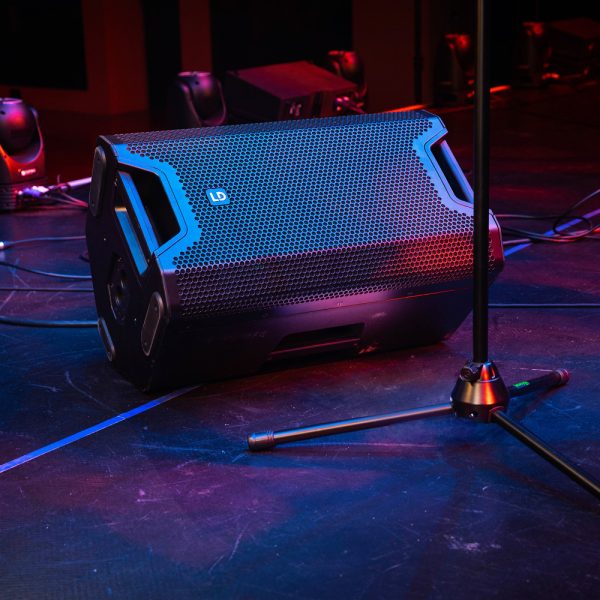

LD Systems ICOA 12 12“ Passive Coaxial PA Loudspeaker


  • A genuine all-rounder for full-range, satellite and monitor applications as well as fixed installations
  • Passive loudspeaker with 123 dB max. SPL and 1000 W peak power
  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
  • Horn-loaded woofer
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
  • 6 x M10 flying points
  • Shock-resistant front grille for optimal speaker protection
  • Four aluminium grips with ergonomic, rubber surface
  • Extensive range of optionally available accessories for installation and transport

Only 2 left in stock (can be backordered)

This 12″ full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 12 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.

The horn-loaded woofer’s outstanding bass reproduction makes the ICOA 12 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility.

Deployed vertically, the speaker impresses as a satellite; horizontally, it’s excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 123 dB peak and has 1000 Watt peak performance.

Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 12 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.


Product type:  PA loudspeaker
Type:  Passive
Low/mid Woofer dimensions:  12 “
Woofer dimensions (mm):  304.8 mm
Woofer magnet:  Ferrite
Woofer brand:  Custom-made
Horn:  BEM optimized CD Horn
HF driver dimensions:  1 “
HF driver dimention (mm):  25.4 mm
HF driver magnet:  Ferrite
HF driver brand:  Custom-made
HF driver voice coil:  1.4 “
HF driver voice coil:  35 mm
Dispersion (H x V):  90° x 50° °
Load rating (RMS):  250 W
Dispersion (H x V):  90° x 50°
Peak power:  1000 W
Frequency response:  55 Hz – 20000 Hz
Crossover frequency:  2000 Hz
SPL (1W/1m):  93 dB
Max. SPL:  123 dB
Impedance:  8 Ohm(s)
Loudspeaker inputs:  1
Speaker input connections:  Speakon compatible
Loudspeaker outputs:  1
Speaker output connections:  Speakon compatible
Cabinet material:  Polypropylene
Cabinet construction:  Bass Reflex
Mounting:  36mm flange (0°, 5°), 6 x M10 flying points
Monitor angle:  55 °
Width:  375 mm
Height:  635 mm
Depth:  396 mm
Weight:  19,8 kg
