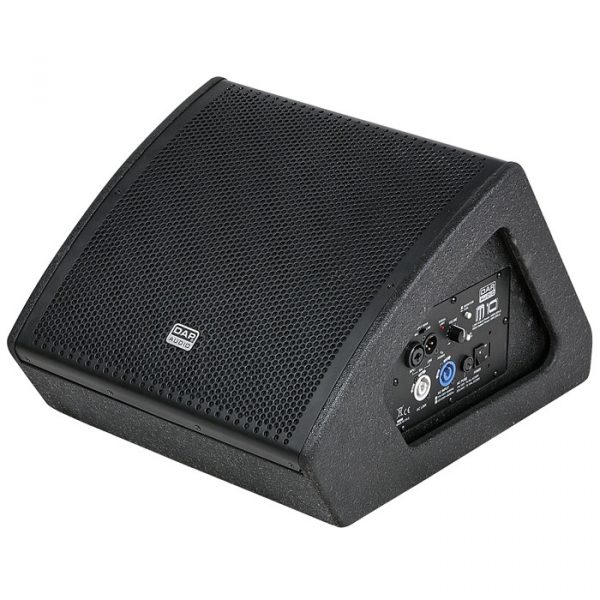

DAP M10 10” Active Monitor

429.00

The active Bi-Amp M-series wedge speakers are the stage solution for optimal monitoring.
A compact, light-weight and innovative designed housing, combined with a powerful Class D amplifier, high-end components and good electronic protections make this a plug & play speaker for all high demanding professional musicians. The 60° wedge design and coaxial speaker ensures a transparent and direct ‘in your face’ sound with consistent coverage.
Integrated handles protect your connections and also make it very easy to handle them in most difficult stage settings.

Outputs
Low Driver Power
350
High Driver Power
65
RMS Output Power Amplifier
415
Main Outputs
1
Main Output Connector
3-pin XLR
Inputs
Mono Inputs
1
Mono Input Connector
3-pin XLR, TRS balanced 6.3 mm
Audio Specifications
THD Level
< 0.5 %
Signal-to-noise Ratio
> 90 dB
Amp Technology
Class D
Damping Factor
200
Speaker System
2-way
Speaker Sensitivity (1 W/1 m)
97
Maximum SPL at 1 m
126
Frequency Response Minimum
70
Frequency Response Maximum
20
Frequency Response (-10dB) Minimum
70
Frequency Response (-10dB) Maximum
20000
Woofer Diameter
10
Woofer Voice Coil
2.5
Woofer Magnet Type
Ferrite
Compression Driver Diameter
1
Compression Driver Voice Coil
1
Compression Driver Magnet Type
Neodymium
Dispersion Angle Horizontal
70
Dispersion Angle Vertical
70
Electrical Specifications and Connections
Power Supply
100-240 VAC 50-60 Hz
Power Consumption
80
Fuse
3.15
Power Connector in
powerCON Blue
Power Connector out
powerCON Grey
Mechanical Specifications
Amplifier Cooling
Axial fan
Height (mm)
278
Width (mm)
364
Material
Wood
Material Thickness
15
Colour
Black
Finish
Painted
Weight
11.4
IP Rating
IP20 (indoor use only)
Product Properties
Pole Mount
35 mm
Electronic Protection
Clip limiter (fixed), Convection-fan, DC voltage, Thermal
LED Indicators
Clip, Power
Rotatable Horn
No
Useable as Monitor/Wedge
Yes
Speaker Grill Material
Steel
Speaker Handles Positions
Left side, Right side
Certifications/Qualifications
Reference Standard
CE, EMC, ETL, FCC, LVD, RoHS
Included Items
Included Cables
powerCON cable
Included Accessories
User Manual
