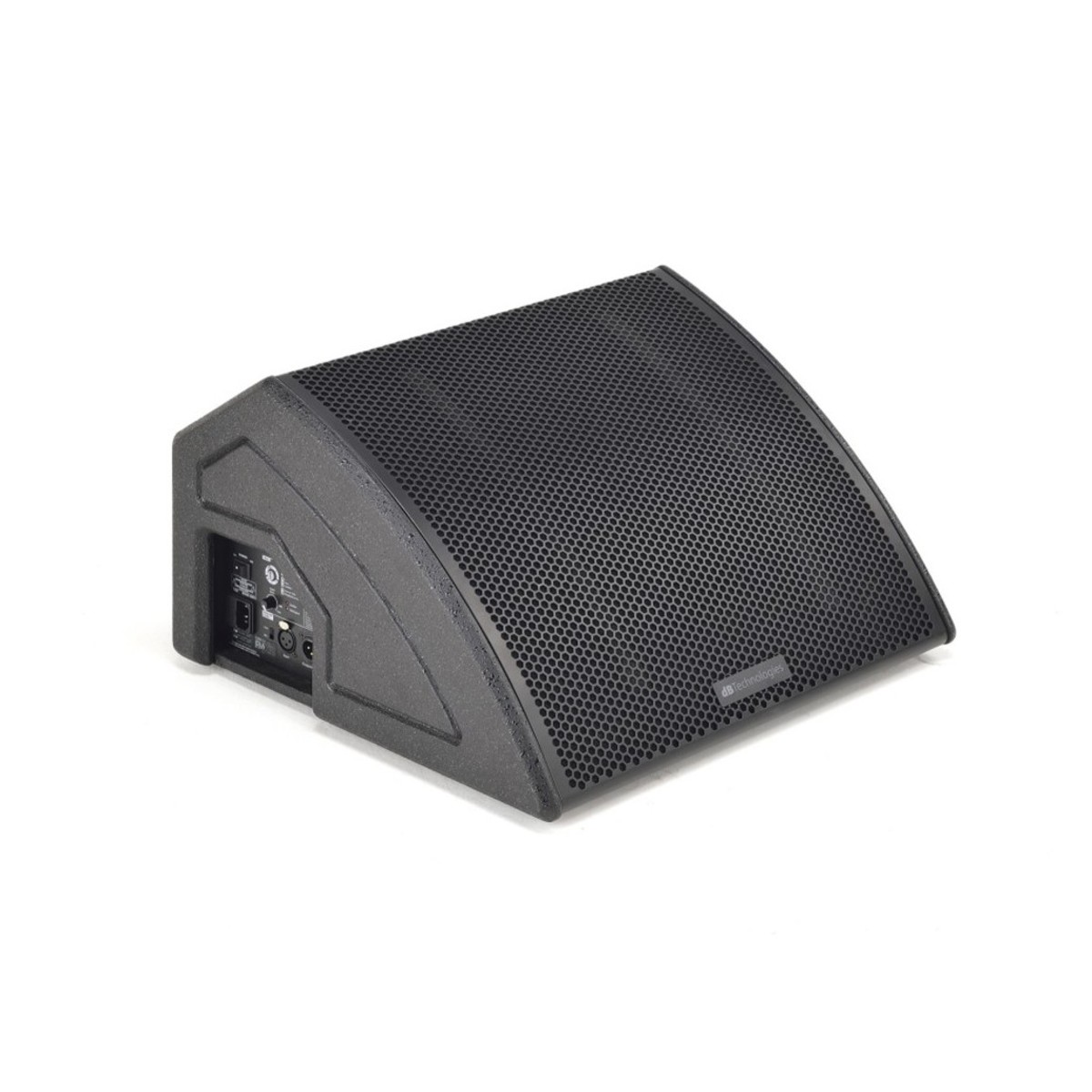

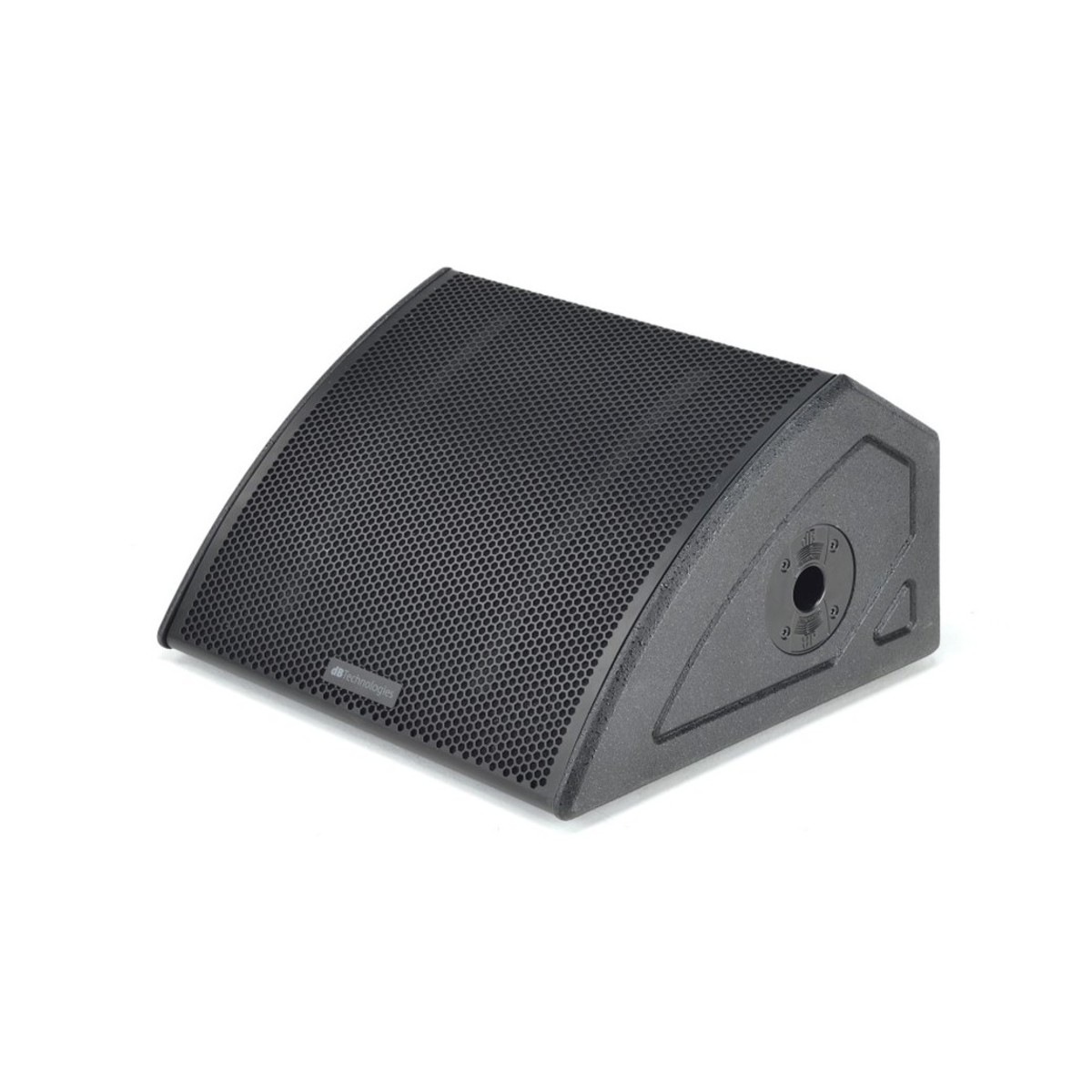

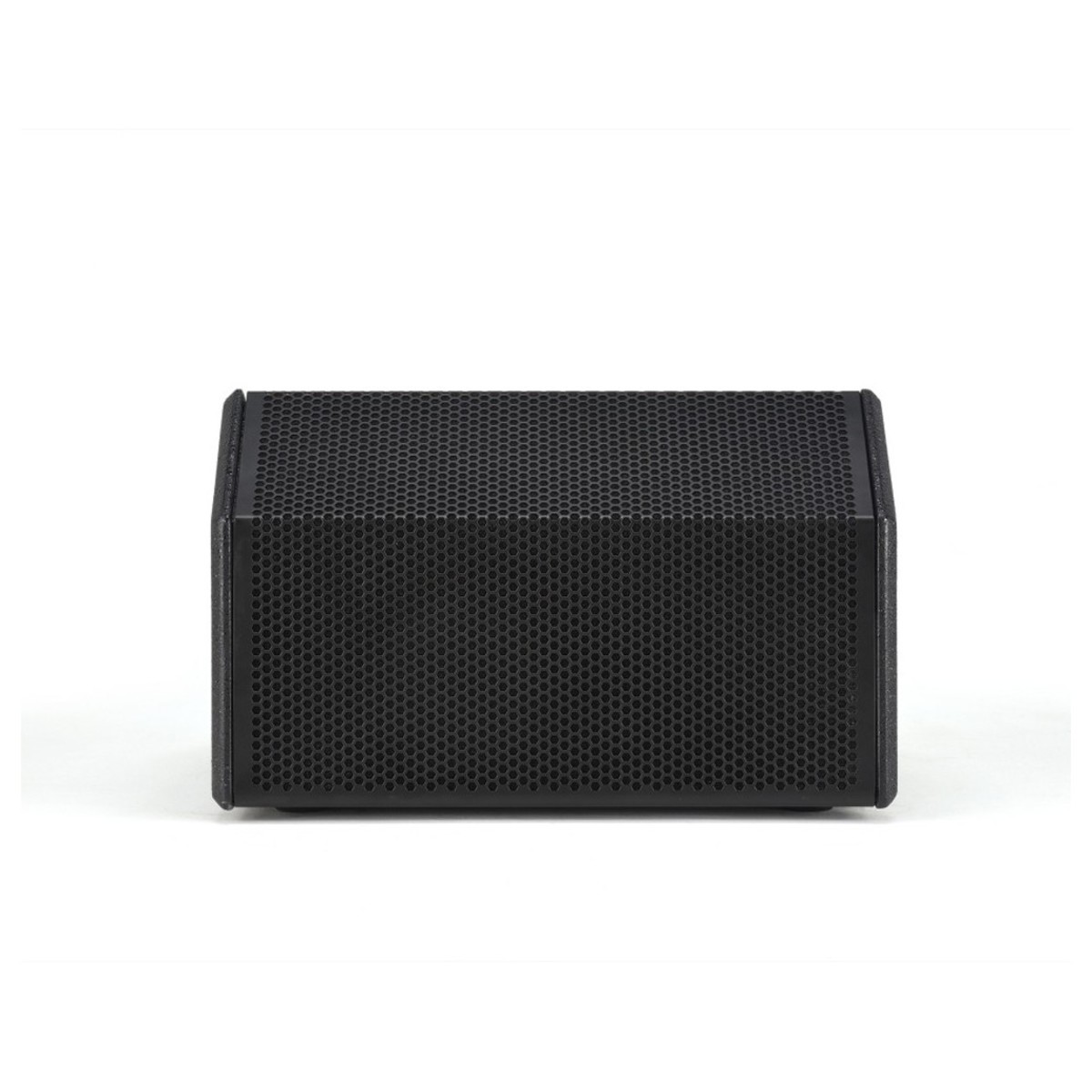

dB Technologies FMX 12

The dB Technologies FMX12 12” Active Floor Monitor makes sure nothing will drive a wedge between you and perfect monitoring.Precise, professional, and with plenty of power. The FMX12 boasts custom linear phase FIR filters. Meaning your sound is reproduced faultlessly. A custom 12 inch rotatable horn is versatile enough to be floor or pole mounted.While eight built-in presets make sure your sound is completely optimised whatever the use. A durable metal grille protects your woofer and intelligent DSP. While a sturdy wooden enclosure makes this speaker tough enough for the stage. The dB Technologies FMX12 is a wedge you’ll want at your disposal.

Monitoring the right way

Completely adaptable monitoring. The dB Technologies FMX12 12” Active Floor Monitor is built to suit any need. From rotatable horns to built-in ergonomic handle and pole mount. The FMX12 is versatile in every sense of the word. The FMX12’s eight built-in presets are optimised to ensure that you’re always sounding your best. From Live Monitor, Coupled Monitors, Male or Female Singer, and Antifeedback (to name a few) you’re prepared for every application.

FIR filtering

Clear, even audio. Thanks to dB Technology’s innovative FIR filters you can achieve this easily. Working to ensure that your sound is uniform, the built-in FIR filters deliver uniform sound consistently.

Features

• Active 2-way stage monitor
• Coaxial configuration
• Linear phase FIR filters
• Ultra-precise directivity
• Rotatable horn (90° x 60° or 60° x 90° dispersion)

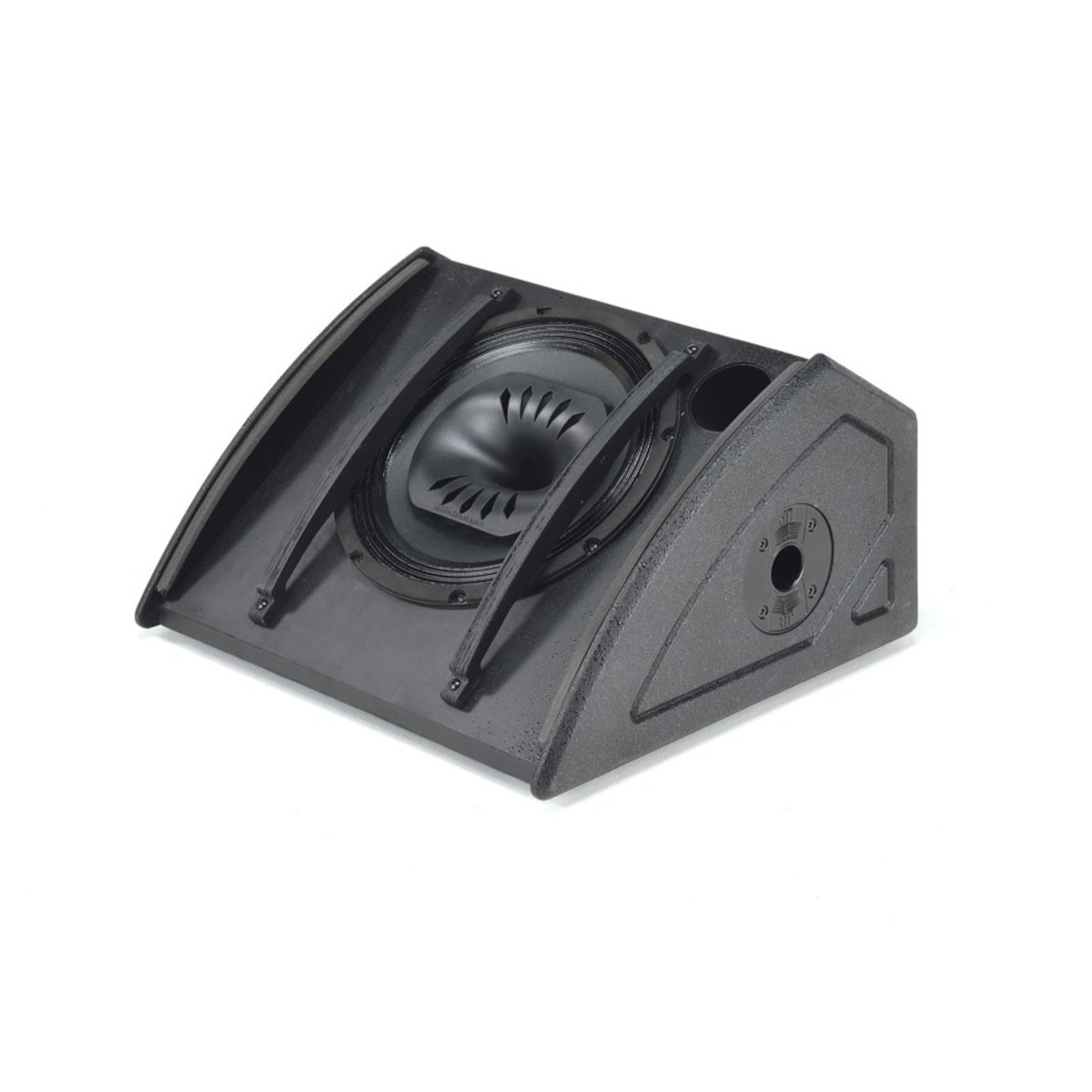

• Front-rear grille design
• Integrated handle on bottom side

Specifications

• Technical Data
  • Speaker Type: 2-Way Active Coaxial Stage Monitor
• Acoustical Data
  • Frequency Response (-10 dB): 52 – 19,000 Hz
  • Max SPL: 125 dB
  • HF: 1”, 1.3” v.c.
  • Directivity: 60° X 90°
  • Horn: Rotatable
  • LF: 12”, 2” v.c.
• Amplifier
  • Amp Class: Class D
  • Peak Power: 1200 W
• Processor
  • Controller: DSP 28/56 bit
  • AD/DA Converter: 24 bit/48 Hz
  • System Presets: 8 presets
  • Limiter: Peak, RMS, Thermal
  • Advanced DSP Function: FIR Filters
  • Crossover Frequency: 1740 Hz
  • Slope LF/HF: 24 dB/oct
• Mechanics
  • Housing: Plywood
  • Housing Design: Multifunctional
  • Handles: 1 integrated on bottom side
  • Pole Mount: 36 mm
  • Dimensions (W x H x D): 465 x 297 x 444 mm
  • Weight: 13.9 kg
