LD Systems U308 IEM HP In-Ear Monitoring System with Earphones – 863 – 865 MHz + 823 – 832 MHz

259.00

  • Reliable wireless transmission with a range of up to 100 m
  • Low-reaching frequency response
  • 12 selectable channels
  • Choice of stereo or mono mode
  • Up to 6 systems can be used simultaneously
  • 10-hour bodypack operating time with two AA batteries
  • Unlimited number of bodypacks can be set to the same transmission frequency
  • Channel and RF reception displayed on bodypack
  • Transmitter in rugged metal casing with stereo level display
  • Removable antenna with BNC connection
  • 19” rack assembly kit included.
  • Earphones included

Only 1 left in stock

Description

We have developed the wireless U300® in-ear monitoring systems for unlimited freedom of movement on the stage with perfect in-ear monitor sound at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice – not just for beginners. Their reliable range of up to 100 m and their low-reaching frequency band of 50 Hz to 16 kHz ensure professional performance. U300® in-ear sets are available for operation in 5 frequency bands: 584 MHz – 608 MHz, 655 MHz – 679 MHz, 823 MHz – 832 MHz+ 863 MHz – 865 MHz, 470 MHz – 490 MHz or 514 MHz – 542 MHz. Six systems can be used simultaneously in each case.

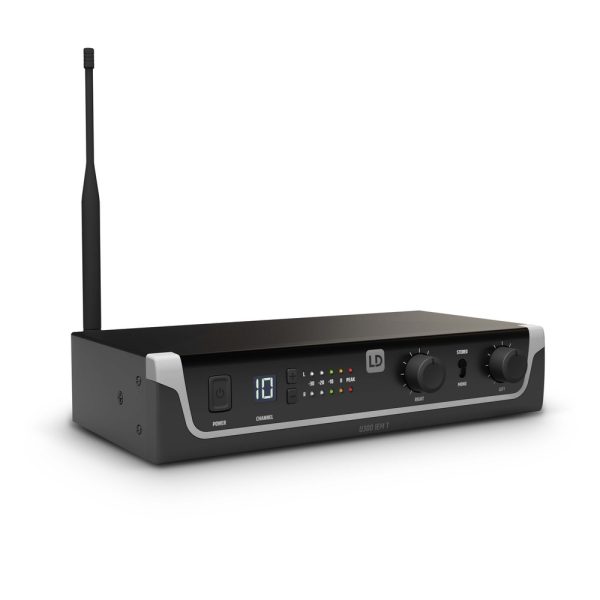

The U300® in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Left and right input levels can be controlled separately, while two LED chains indicate audio signal strength.

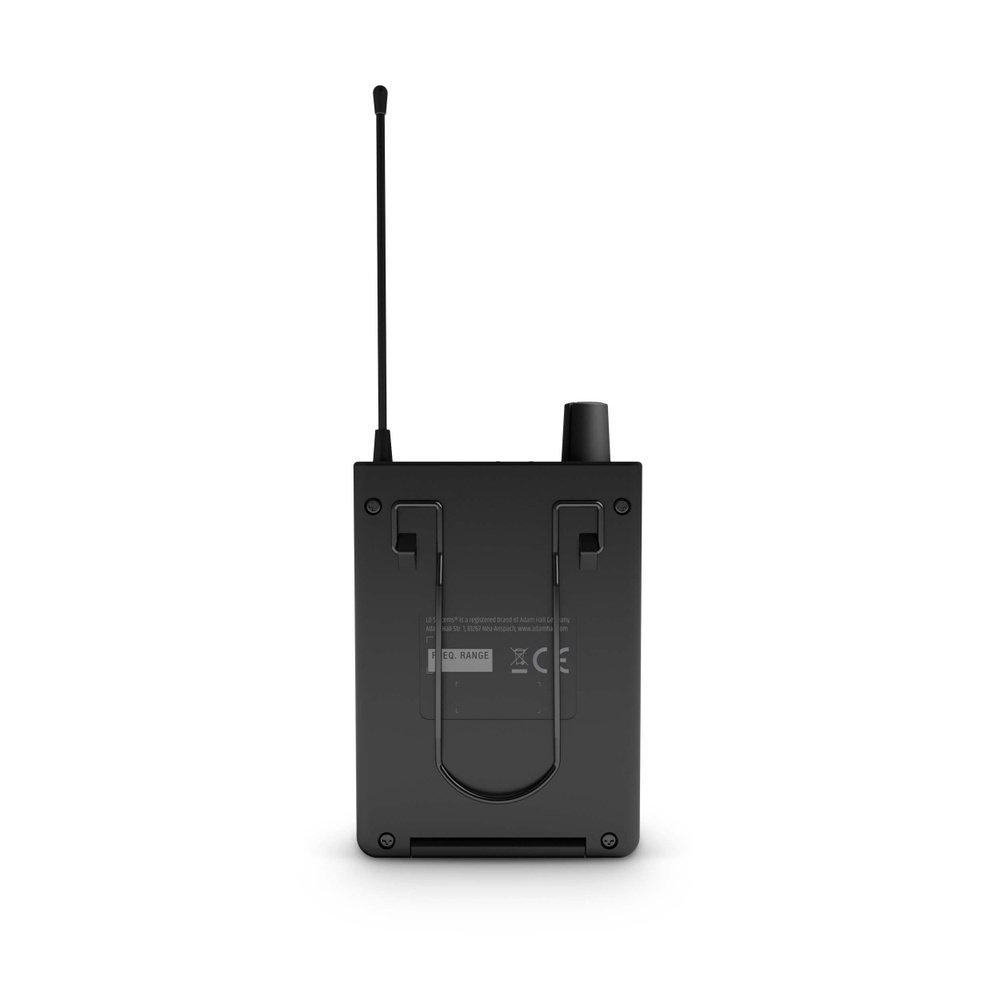

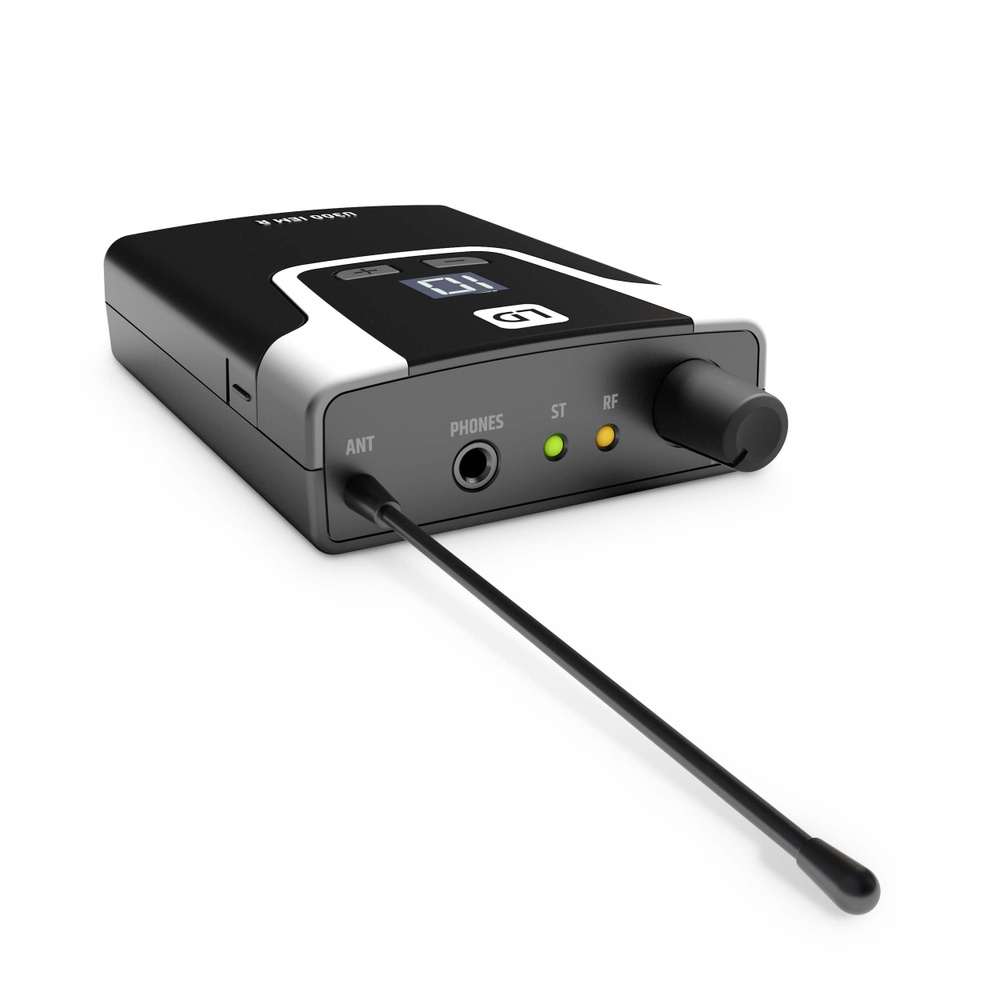

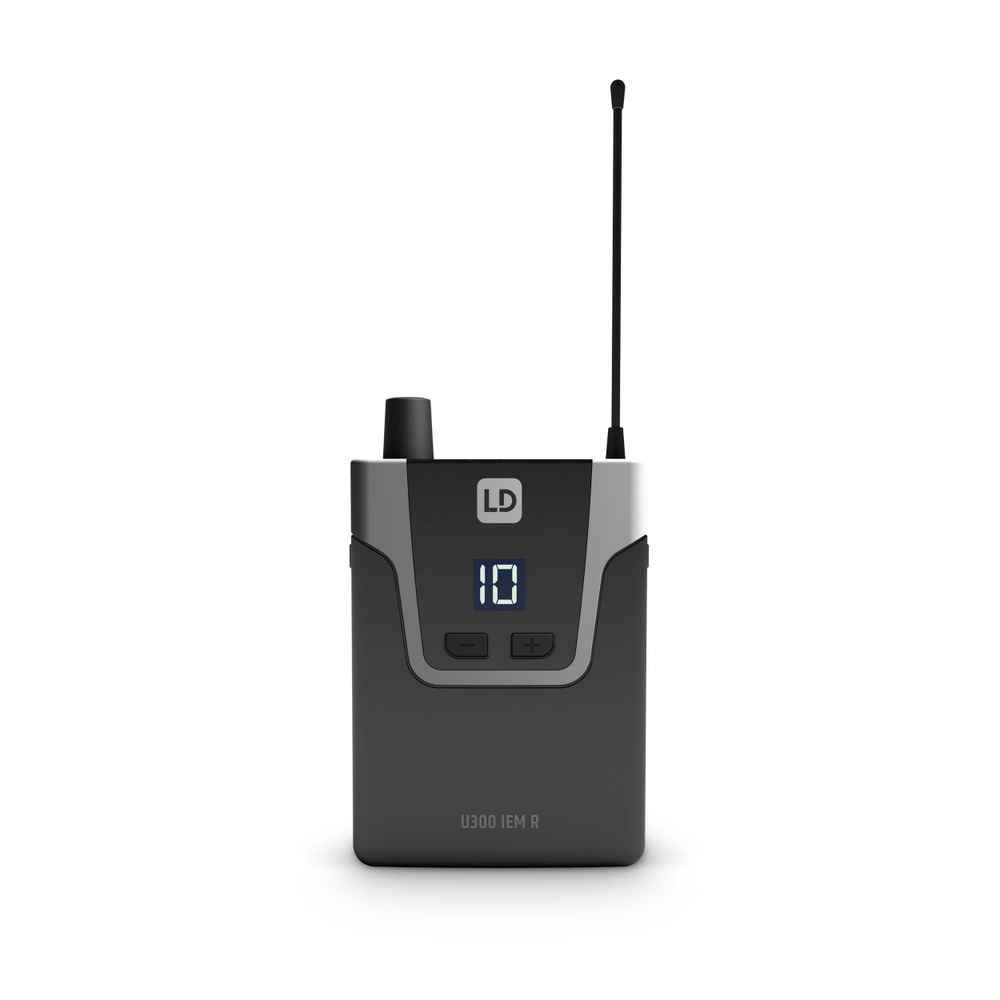

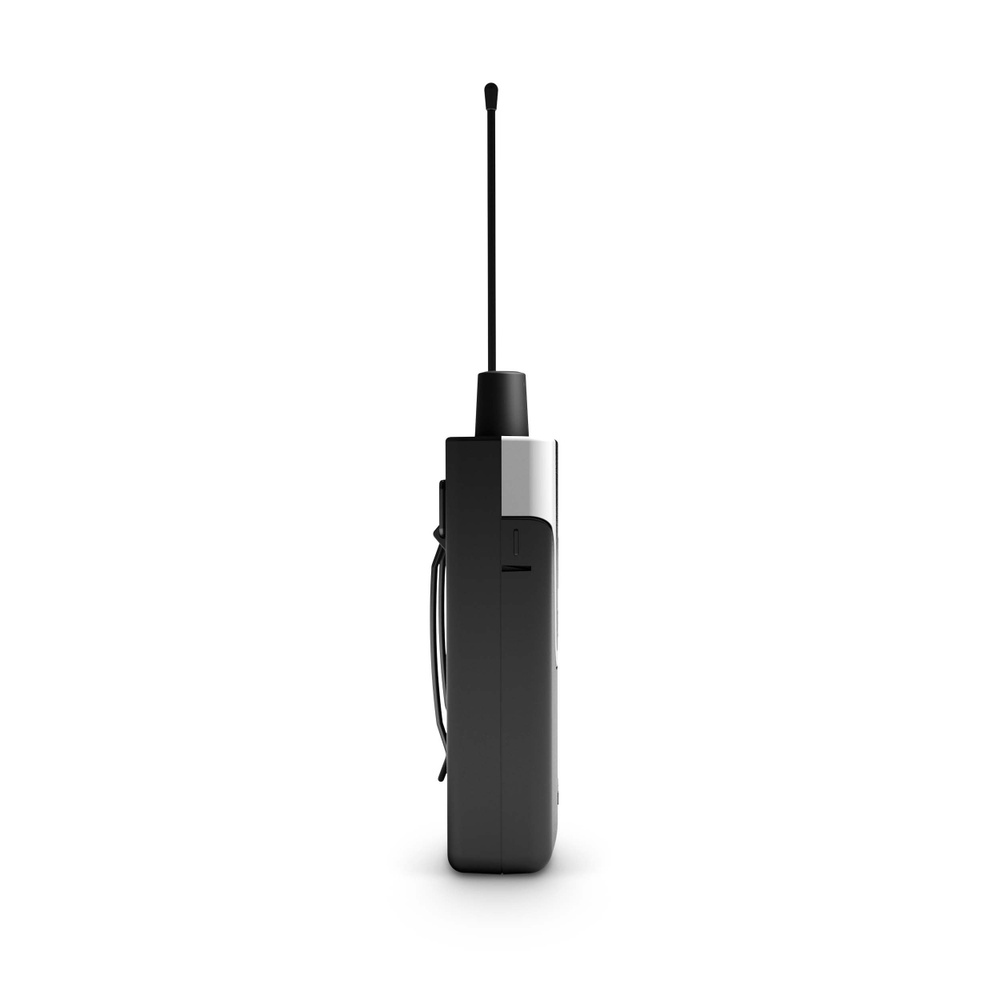

The U300® bodypack receiver has a mini jack socket to connect the earphones as well as displays for channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19″ rack assembly kit included.

Specifications

General
Product type:  In-ear Monitoring
Type:  Set
Transmission frequency range:  823 – 832 MHz, 863 – 865 MHz
Weight:  1,51 kg
Items in this set
LD Systems IEHP 1 Professional In-Ear Headphones black
Product type:  Headphones
Frequency response:  30 – 20.000
Impedance:  16 Ohm(s)
Connection type:  3.5 mm TRS
Cable length:  1.5 m
Weight:  0,088 kg
LD Systems U308 IEM T Transmitter
Product type:  In-ear Monitoring Accessories
Type:  Transmitters
Transmission frequency range:  823 – 832 MHz, 863 – 865 MHz
Channels:  12
Frequency response:  50 – 16.000
Transmission method:  FM, mono/stereo
Modes of operation:  mono/stereo
Rated HF output power:  10 mW
Total Harmonic Distortion (THD):  <0,5%
Signal-to-noise ratio: 90 dB
Dynamic range:  88 dB
Antenna connector:  BNC
Inputs:  2
Controls:  input level, Mono/stereo switch, Power On/Off
Input connectors:  6.3 mm jack, XLR
Weight:  0,66 kg
Input impedance (kOhms):  8.5 kOhm
Indicators:  LC display
Input sensitivity:  -4.5 dbu
Operating voltage:  12 – 18 V DC
Width:  212 mm
Height:  43 mm
Depth:  123 mm
Power consumption:  1.7 W
Accessories (included):  19″ Rack mount kit, BNC-Antenna, Power supply
LD Systems U308 IEM R Receiver
Product type:  In-ear Monitoring Accessories
Type:  Receivers
Transmission frequency range:  823 – 832 MHz, 863 – 865 MHz
Channels:  12
Frequency response:  50 – 16.000
Transmission method:  FM, mono/stereo
Total Harmonic Distortion (THD):  0.25 %
Audio output:  3.5 mm TRS
Minimum connected impedance:  16 Ohm(s)
Max. audio output level:  100 (@ 16 Ohms load capacity) mW, 73 (@ 33 Ohms load capacity) mW
Antenna connector:  Fixed to housing
Controls:  Channel down, Channel up, on/off switch, volume control
Weight:  0,085 kg
Indicators:  LC display, RF (LED)
Operating voltage:  2 x 1.5 V AA
Operating time:  < 10 hours
Width:  64 mm
Height:  103 mm
Depth:  24 mm
Features:  battery status LED, incl. batteries
