Our Contractor 4×4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C44-KIT is a 4K HDCP 2.2 Matrix package, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable.
The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1 and a web browser interface module for control and configuration of the matrix. The C44-KIT is supplied with 4 x HEX70B Receivers
Features
- Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
- Features 4x HDMI inputs which can be independently routed to 4x HDBaseT™ outputs
- Output 1 features simultaneous HDMI and HDBaseT™ output
- Extends HDMI up to a distance of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Web interface module for control and configuration of Matrix
- Supports bi-directional IR on all HDBaseT outputs
- Supplied with Blustream IR receivers and emitters
- Control via front panel, IR, RS-232 and TCP/IP
- Supports PoH (Power over HDBaseT™) to supplied HDBaseT™ receivers
- 3rd Party drivers available for all major home control brands
- 1U Design for 19″ rack mount integration – mounting kit included
- Advanced EDID management
- HDCP 2.2 compliant
- Supplied with 4x HEX70B-RX receivers
- Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
- Features 4x HDMI inputs which can be independently routed to 4x HDBaseT™ outputs
- Output 1 features simultaneous HDMI and HDBaseT™ output
- Extends HDMI up to a distance of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Web interface module for control and configuration of Matrix
- Supports bi-directional IR on all HDBaseT outputs
- Supplied with Blustream IR receivers and emitters
- Control via front panel, IR, RS-232 and TCP/IP
- Supports PoH (Power over HDBaseT™) to supplied HDBaseT™ receivers
- 3rd Party drivers available for all major home control brands
- 1U Design for 19″ rack mount integration – mounting kit included
- Advanced EDID management
- HDCP 2.2 compliant
- Supplied with 4x HEX70B-RX receivers
Box Contents
1 x C44

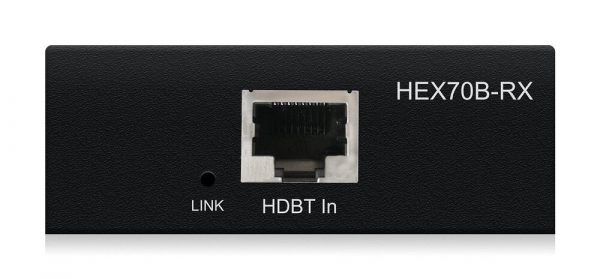

4 x HEX70B-RX
1 x Rack Mounting Kit
4 x Mounting Kit for HEX70B-RX
1 x 24V/3.5A Power Supply
1 x IR Remote Control
4 x IR Emitters
5 x IR Receivers
1 x Quick Reference Guide
