Description
- Converts and combines VGA and analogue audio signals into an HDMI signal
- Perfect for using older VGA equipment with a HDMI display
- Supports resolutions up to 1080p
- Simple plug and play installation
- 2 year warranty
Please Note: This product is a format converter, from analogue to digital, there is no resolution scaling.
The VGA & Audio to HDMI Converter is capable of combining analogue video and stereo audio signals and converting them into a HDMI signal, perfect for using legacy PC and AV equipment seamlessly with the latest LCD, LED and Plasma displays.
The VGA and Audio converter features simple plug and play installation, there is no configuration required as there is no scaling of the video signal, with the output resolution matching the input resolution.
Technical details
Specification
- AV Interface: VGA to HDMI
- Interface Standard: HDMI 1.2a
- Supported Bandwidth: 6.75 Gbps
- Maximum Input Resolution: 1280×1024@75Hz
- Maximum Output Resolution: 1920×1080@60Hz
- HDCP Support: 1.1
- Supported Audio: Audio Pass Through
- Separate Audio Ports: HDMI, RCA (Input)
- Special Features: –
Connectors

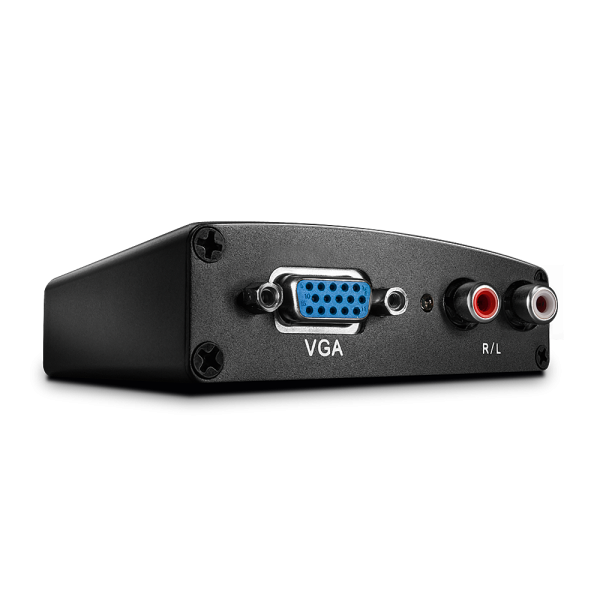

- Input: 1 x VGA (Female), 2 x RCA (female)

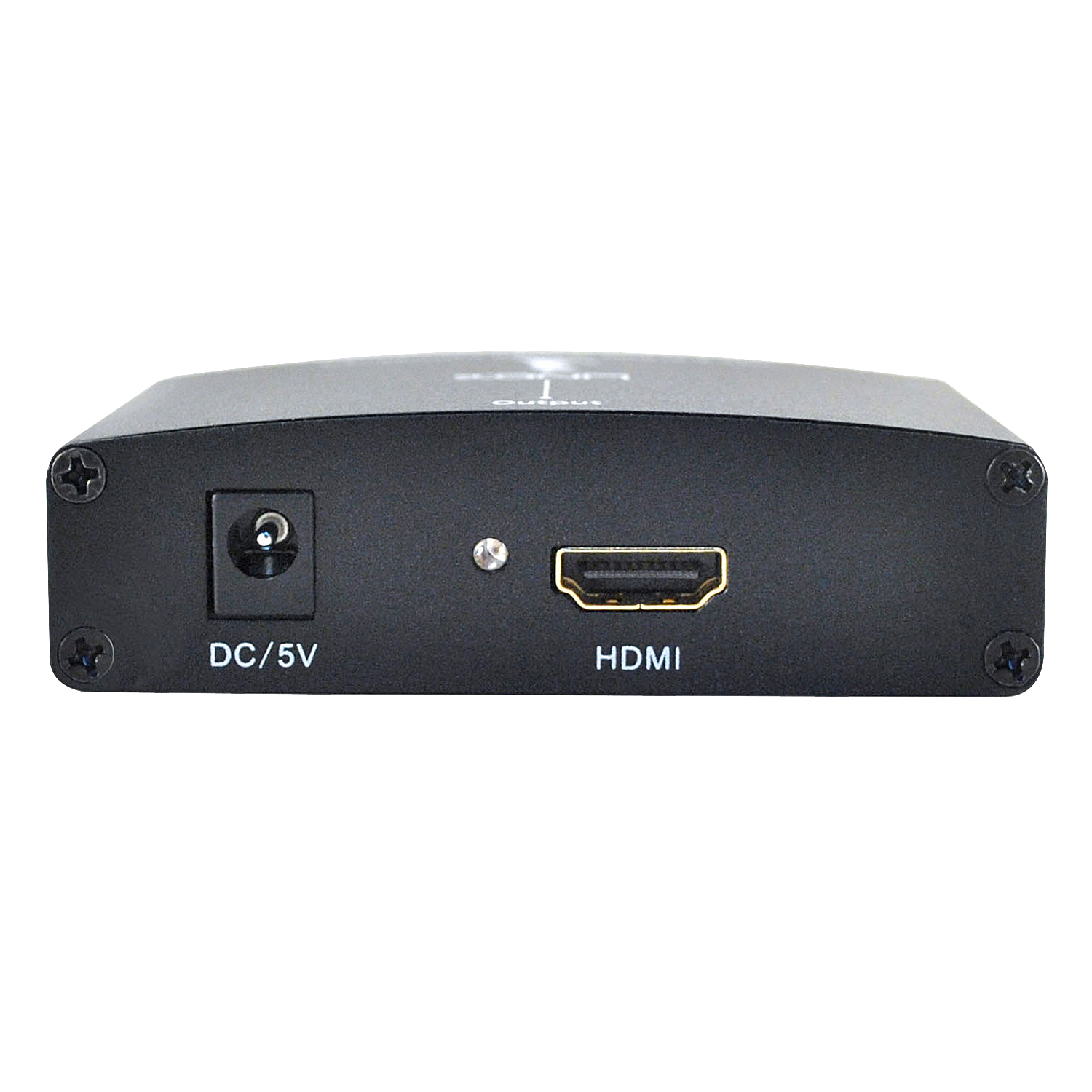

- Output: 1 x HDMI (Female)
- Power: 5.5/2.1mm DC socket
Physical Properties
- Dimensions WxDxH: 87x66x25mm (3.43×2.6×0.98in)
- Housing Material: Metal
- Net Weight: 0.246kg (0.54lb)
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -20°C – 60°C (-4°F – 140°F)
- Humidity: 10 – 85% RH (non-condensing)
- Power Requirements: 5VDC 1A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 170x120x60mm (6.69×4.72×2.36in)
- Gross Weight: 0.402kg (0.89lb)
- Warranty (Years): 2
- Certificated: CE, FCC, REACH & RoHS
Package Contents
- HDMI Converter
- Multi-Country Power Supply (EU, UK, US & AUS)
- Lindy Manual
