Roland V-8HD High Definition Video Switcher

1,979.00

Main Features

  • Compact Video Switcher with 8-Inputs and 5-Layer Effects
  • 18-channel digital audio mixer with effects
  • All HDMI workflow
  • Five-layer effects and keying engine
  • Built-in multiviewer preview monitor
  • Aux output for a different video feed

V-8HD HD Video Switcher

Versatile, portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. Its all-in-one hardware design eliminates computer setup hassles and software-based crashes, while the HDMI workflow and loaded professional toolset streamline production and reduce stress on the gig.

Product Features

  • All HDMI workflow
  • Five-layer effects and keying engine
  • Built-in multiviewer preview monitor
  • Aux output for a different video feed
  • Technology-assisted automatic video switching
  • 18-channel digital audio mixer with effects
  • Free iPad remote control app available
  • Ultra-mobile, lightweight, and efficient
  • Aids in reducing capital expenditure

Product Specifications

Video

  • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
  • Input Connectors
    • INPUT 1–6: HDMI type A x 6
    • HDCP Supported
    • INPUT 7–8: HDMI type A x 2
    •  HDCP Supported
    • Multi-format Supported
  • Output Connectors
    • OUTPUT 1–3: HDMI type A x 3
    • HDCP Supported
  • Input formats
    • INPUT 1–6
      • 720/59.94p (SYSTEM FORMAT = 720p, FRAME RATE = 59.94 Hz)
      • 720/50p (SYSTEM FORMAT = 720p, FRAME RATE = 50 Hz)
      • 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p (SYSTEM FORMAT = 1080i or 1080p, FRAME RATE = 59.94 Hz)
      • 1080/50i, 1080/50p, 1080/25p (SYSTEM FORMAT = 1080i or 1080p, FRAME RATE = 50 Hz)
      • 1080/23.98p, 1080/24p (SYSTEM FORMAT = 1080i or 1080p)
      • The input interlaced video signal is converted to progressive video signal by internal processing.
    • INPUT 7–8
      • 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p (FRAME RATE = 59.94 Hz)
      • 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p (FRAME RATE = 50 Hz)
      • 1080/23.98p, 1080/24p
      • VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
      • WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
      • FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
      • UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
      • The refresh rate is the maximum value of each resolution.
      • Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
      • 1920 x 1200/60 Hz: Reduced blanking
      • The input interlaced video signal is converted to progressive video signal by internal processing.
  • Still Image:
    • Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit colour, uncompressed.
    • PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit colour
    • It can be stored up to 8 files in the internal memory.
    • PNG alpha channel not supported.
  • Output formats
    • OUTPUT 1–2:
      • 720/59.94p (SYSTEM FORMAT = 720p, FRAME RATE = 59.94 Hz)
      • 720/50p (SYSTEM FORMAT = 720p, FRAME RATE = 50 Hz)
      • 1080/59.94i (SYSTEM FORMAT = 1080i, FRAME RATE = 59.94 Hz)
      • 1080/50i (SYSTEM FORMAT = 1080i, FRAME RATE = 50 Hz)
      • 1080/59.94p (SYSTEM FORMAT = 1080p, FRAME RATE = 59.94 Hz)
      • 1080/50p (SYSTEM FORMAT = 1080p, FRAME RATE = 50 Hz)
    • OUTPUT 3:
      • 1080/59.94p (FRAME RATE = 59.94 Hz)
      • 1080/50p (2 FRAME RATE = 50 Hz)
  • Video Effects
    • Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
    • Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key)
    • Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

Audio

  • Audio Processing: Sampling rate, 24 bits/48 kHz
  • Audio formats: Linear PCM, 24 bits/48 kHz, 2ch
  • Audio Effects: Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output

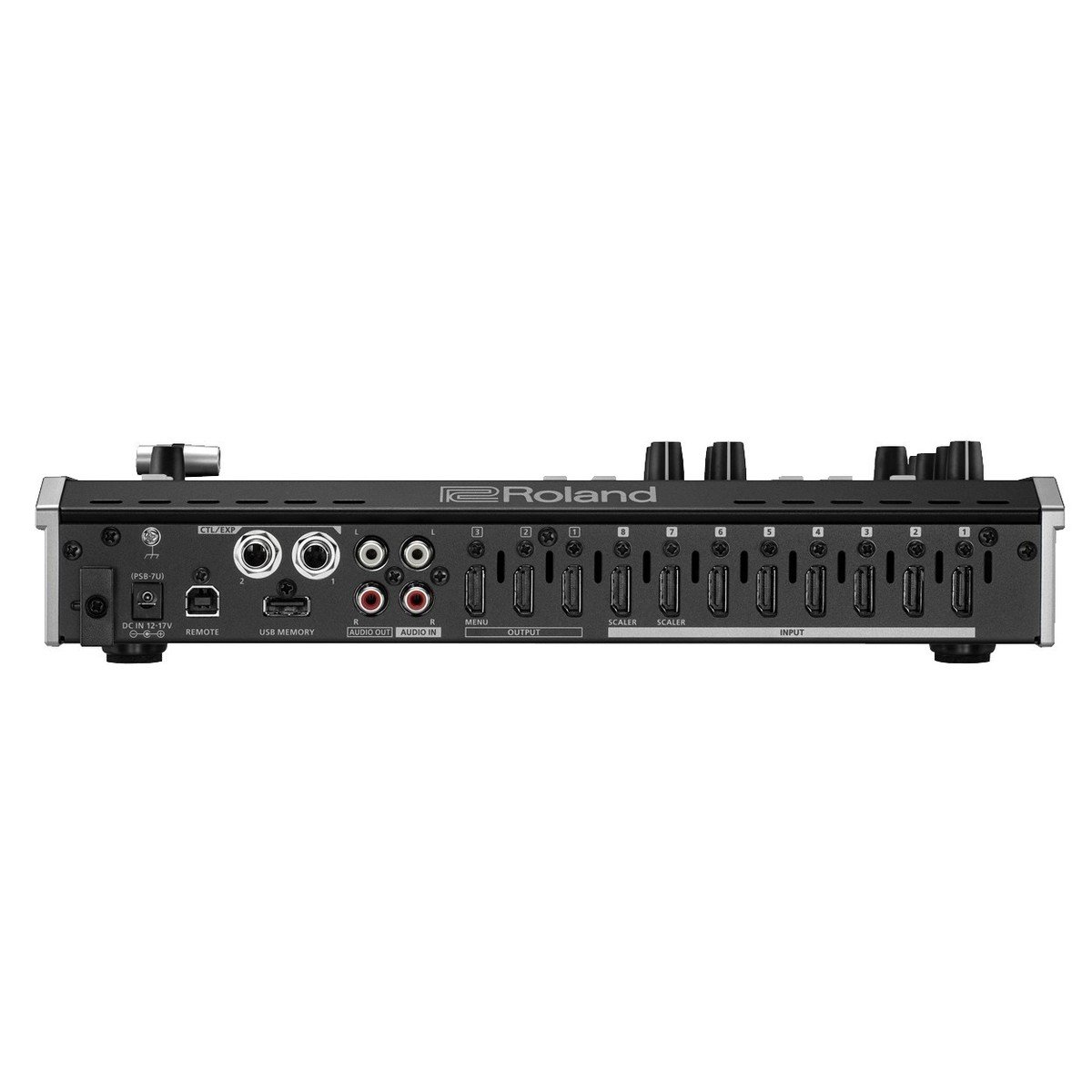

Connectors

  • Input Connectors
    • INPUT 1–8: HDMI Type A x 8
    • AUDIO IN: RCA phono type
  • Output Connectors
    • OUTPUT 1–3: HDMI Type A x 3
    • AUDIO OUT: RCA phono type
    • PHONES: Stereo miniature type
  • Input Level
    • AUDIO IN: -10 dBu (Maximum: +8 dBu)
    • -Input Impedance
    • AUDIO IN: 38 k ohms
  • Output Level
    • AUDIO OUT: -10 dBu (Maximum: +8 dBu)
    • PHONES: 92 mW + 92 mW (32 ohms)
    • -Output Impedance
  • AUDIO OUT: 1 k ohm
    • PHONES: 10 ohms
  • Audio Effects
    • Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
  • Other Connectors
    • USB MEMORY: USB A type (for USB flash drive)
    • REMOTE:USB B Type (for remote control from iPad)
    • CTL/EXP:1/4-inch TRS phone type
  • Other Functions
    • Preset Memory (8 types)
    • Panel lock function
    • EDID Emulator
    • Auto Switching
    • Auto Input Detect

Audio input/output characteristics

  • Input Level:  AUDIO IN: -10 dBu (Maximum: +8 dBu)
  • Input Impedance:  AUDIO IN: 38 k ohms
  • Output Level
    • AUDIO OUT: -10 dBu (Maximum: +8 dBu)
    • PHONES: 92 mW + 92 mW (32 ohms)
  • Output Impedance
    • AUDIO OUT: 1 k ohm
    • PHONES: 10 ohms

Other

  • Display: 4.3 inches TFT Colour LCD: 480 x 272 dots
  • Power Supply: AC Adaptor
  • Current Draw: 3.3 A
  • Power Consumption: 39.6 W
  • Operation Temperature
    • +0 to +40 degrees Celsius
    • +32 to +104 degrees Fahrenheit

Dimensions

  • 317 (W) x 193 (D) x 70 (H) mm
  • 12-1/2 (W) x 7-5/8 (D) x 2-13/16 (H) inches

Weight (excluding AC adaptor)

  • 2.0 kg
  • 4 lbs 7 oz
